Home >> Isuzu >> 1995 >> Pickup 2WD L4-2.3L (4ZD1) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Fuse/Relay Box >> Fuse/Relay Box Index

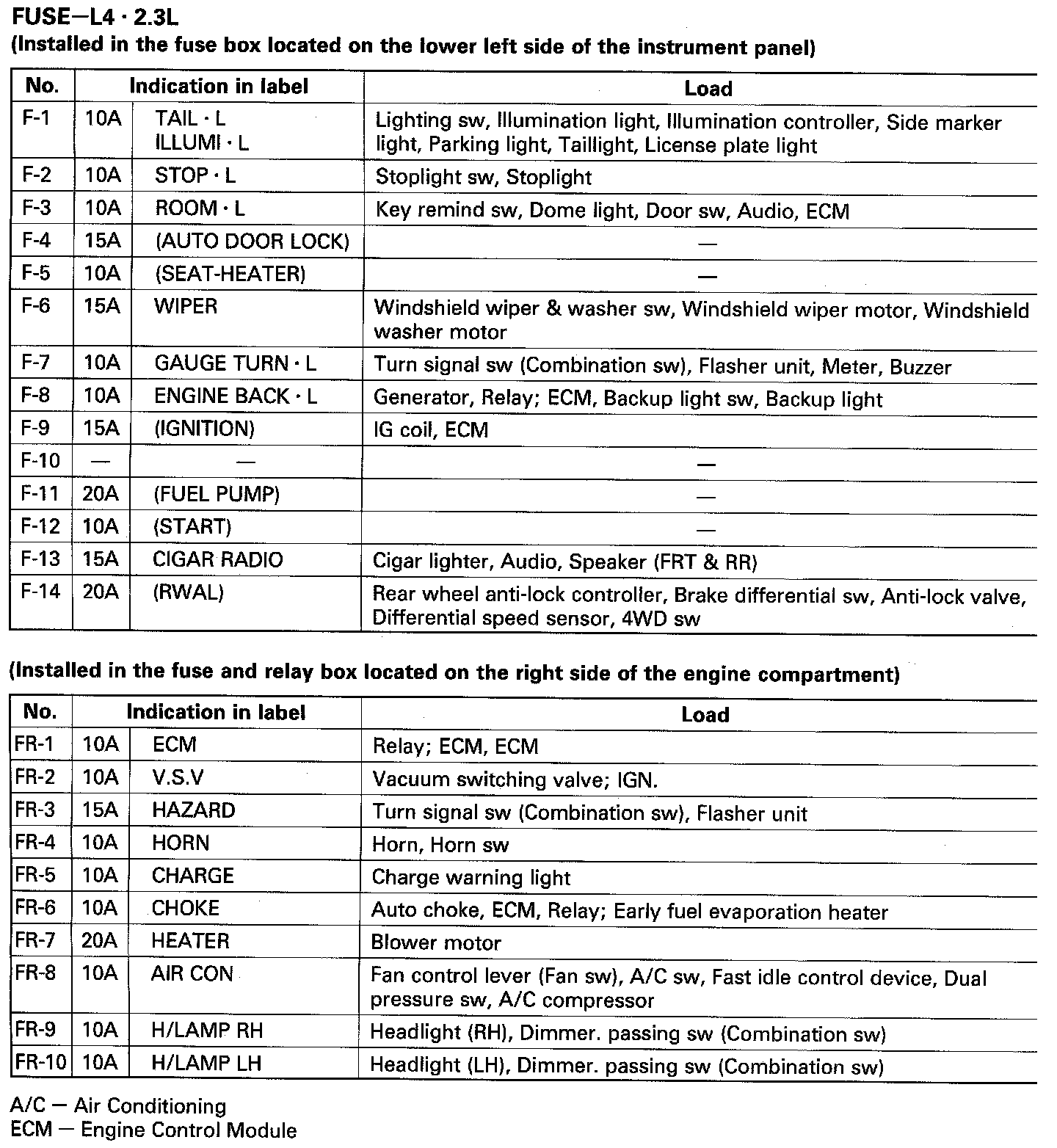

Fuse/Relay Box Index
