Home >> Isuzu >> 1995 >> Pickup 2WD L4-2.3L (4ZD1) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Coil >> Testing and Inspection

Ignition Coil: Testing and Inspection

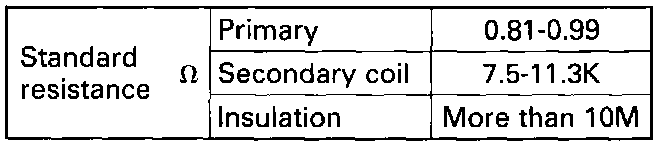

Measure the resistance of the primary coil and the secondary coil.
