Fuse Box Schematics

Fuse Box Details:

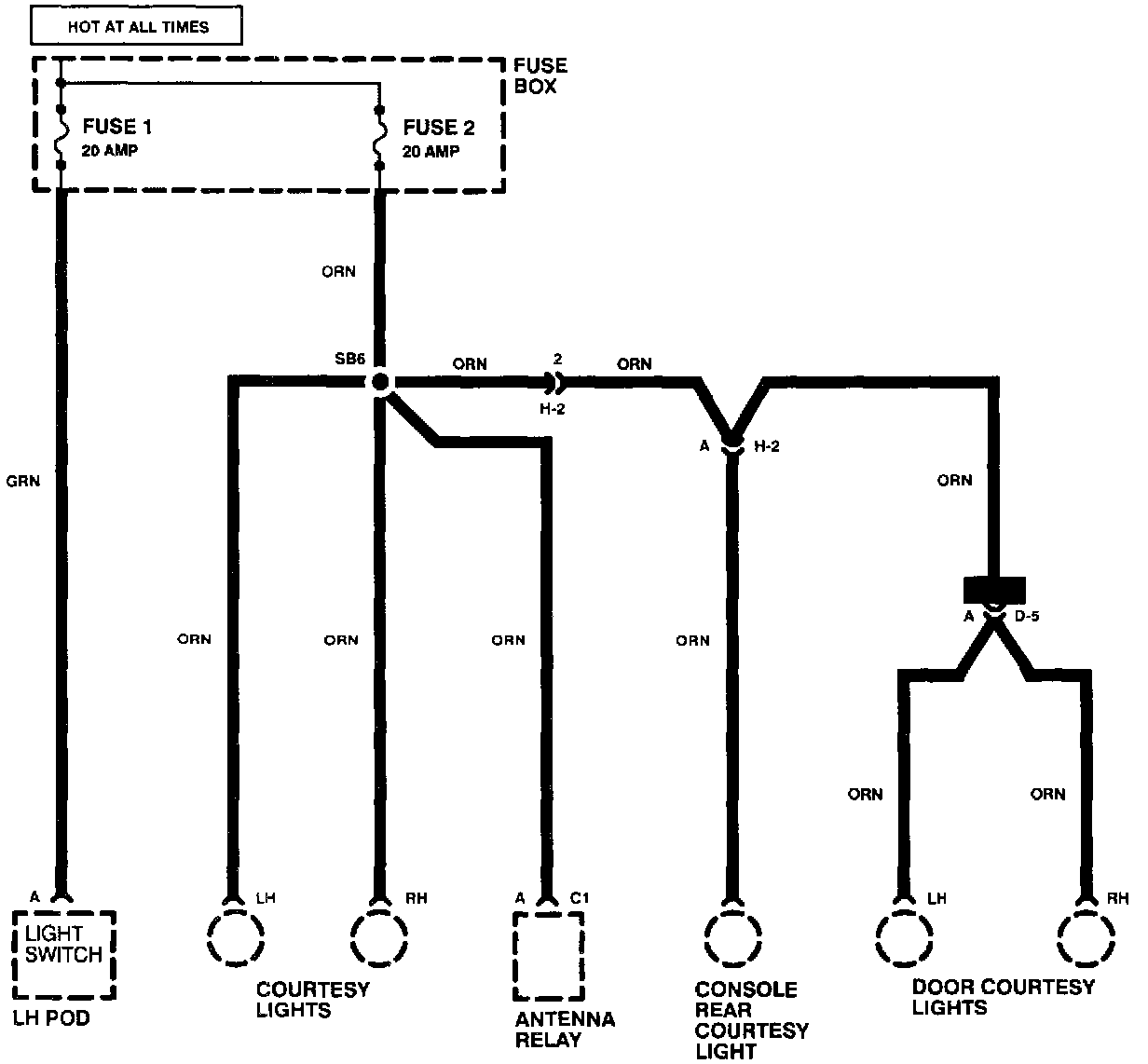

The Fuse Box Details schematic shows all the wiring between a fuse and the components connected to the output of the fuse. The Fuse Box Details schematic is extremely helpful in locating a short circuit that causes a fuse to open. This schematic may aid troubleshooting an inoperative circuit by showing a second circuit using the same fuse. If the second circuit works, then the fuse and certain wires of the inoperative circuit are good.
