Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
1996
>>
Hombre L4-2.2L CPC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Battery
Battery

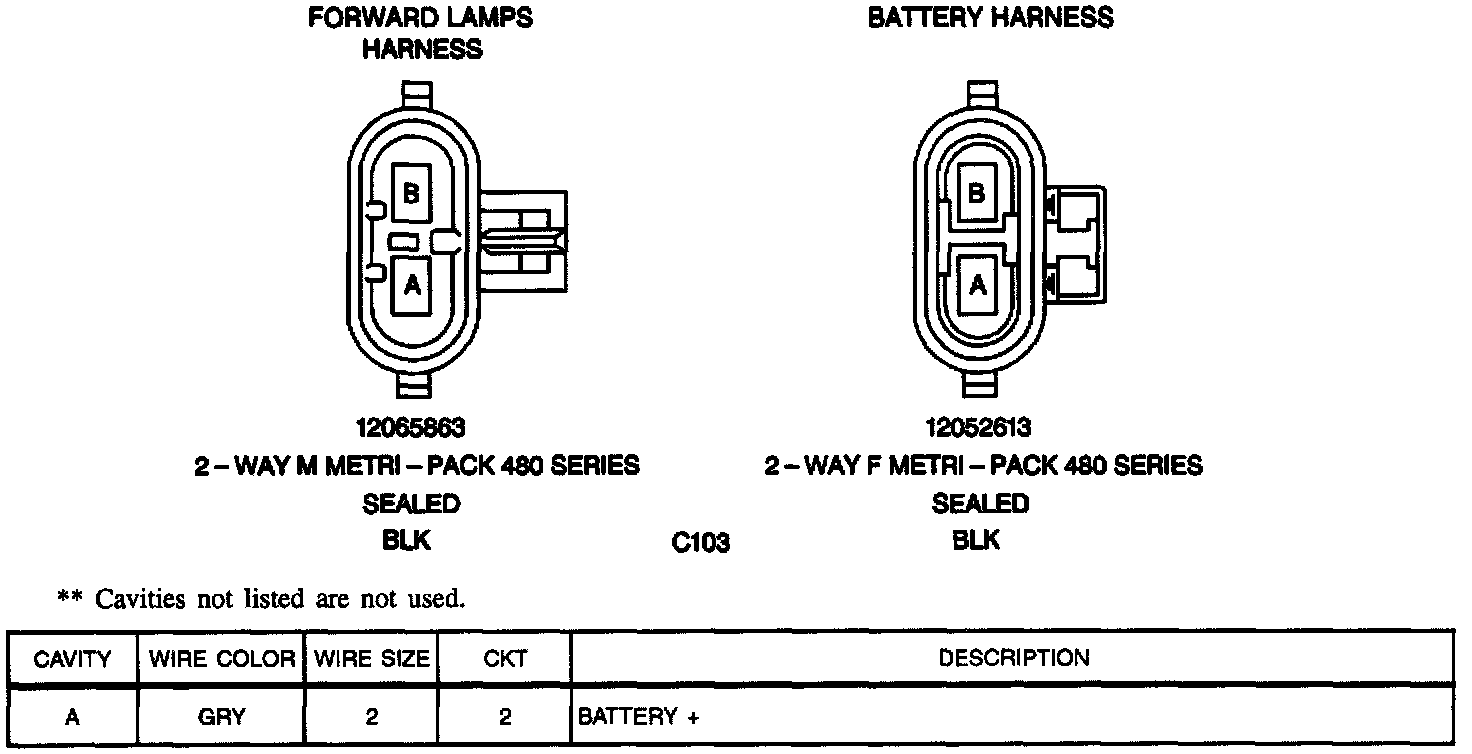

C103: Forward Lamps Harness, Battery Harness:
