Connector Views
>>
Connector By Number
>>
C201
C201

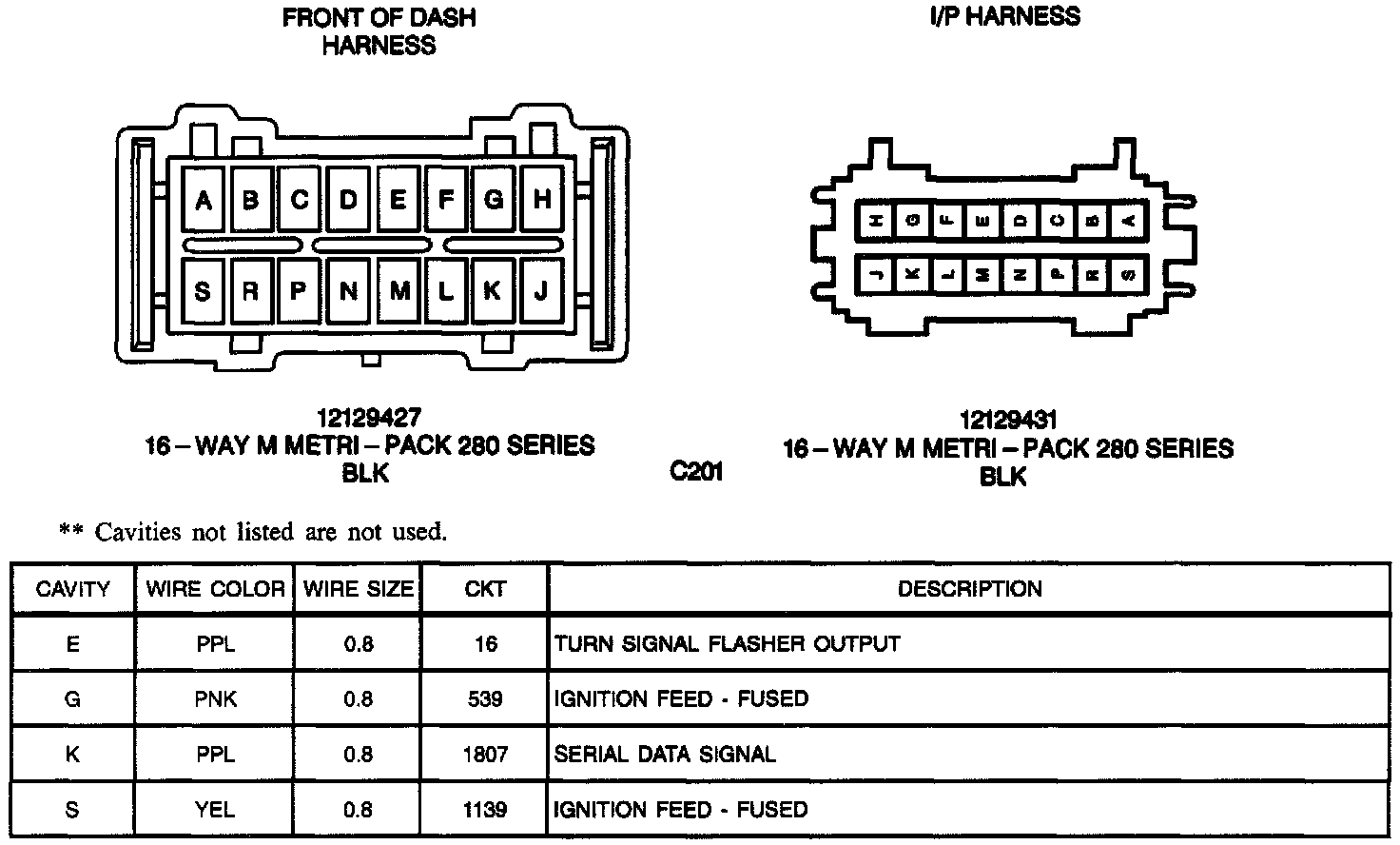

C201: Front Of Dash Harness, I/P Harness:
C223: Engine Harness, I/P Harness:

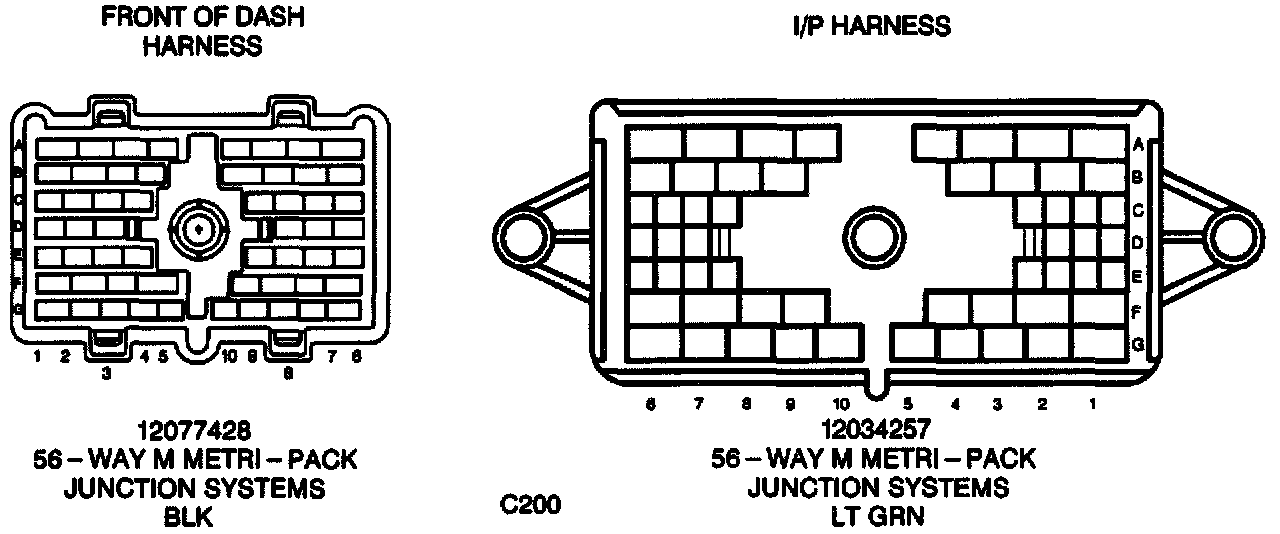

C200: Front Of Dash Harness, I/P Harness:
