Home >> Isuzu >> 1996 >> Hombre L4-2.2L CPC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> C2

C2

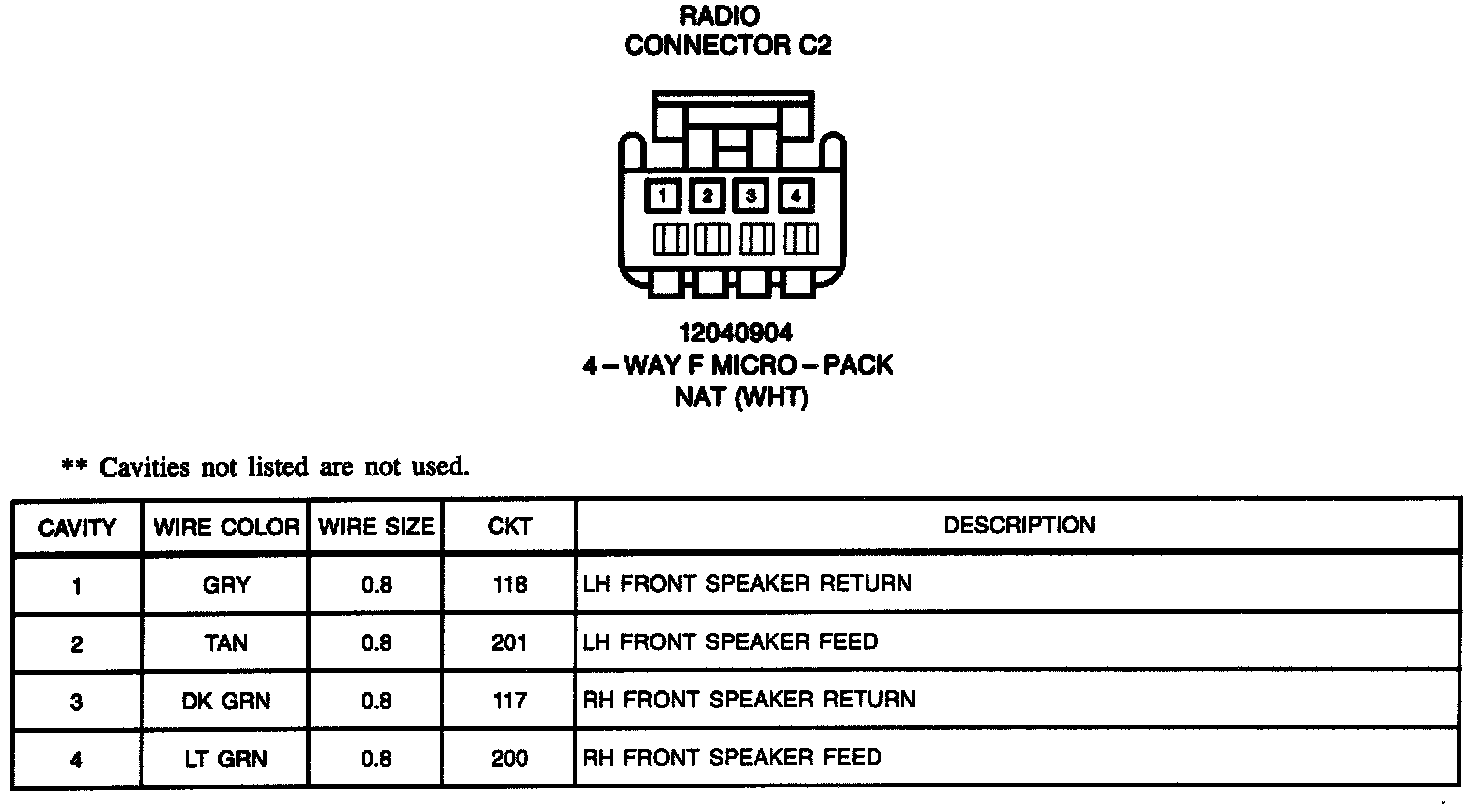

Radio Connector C2:
