Pinout Description

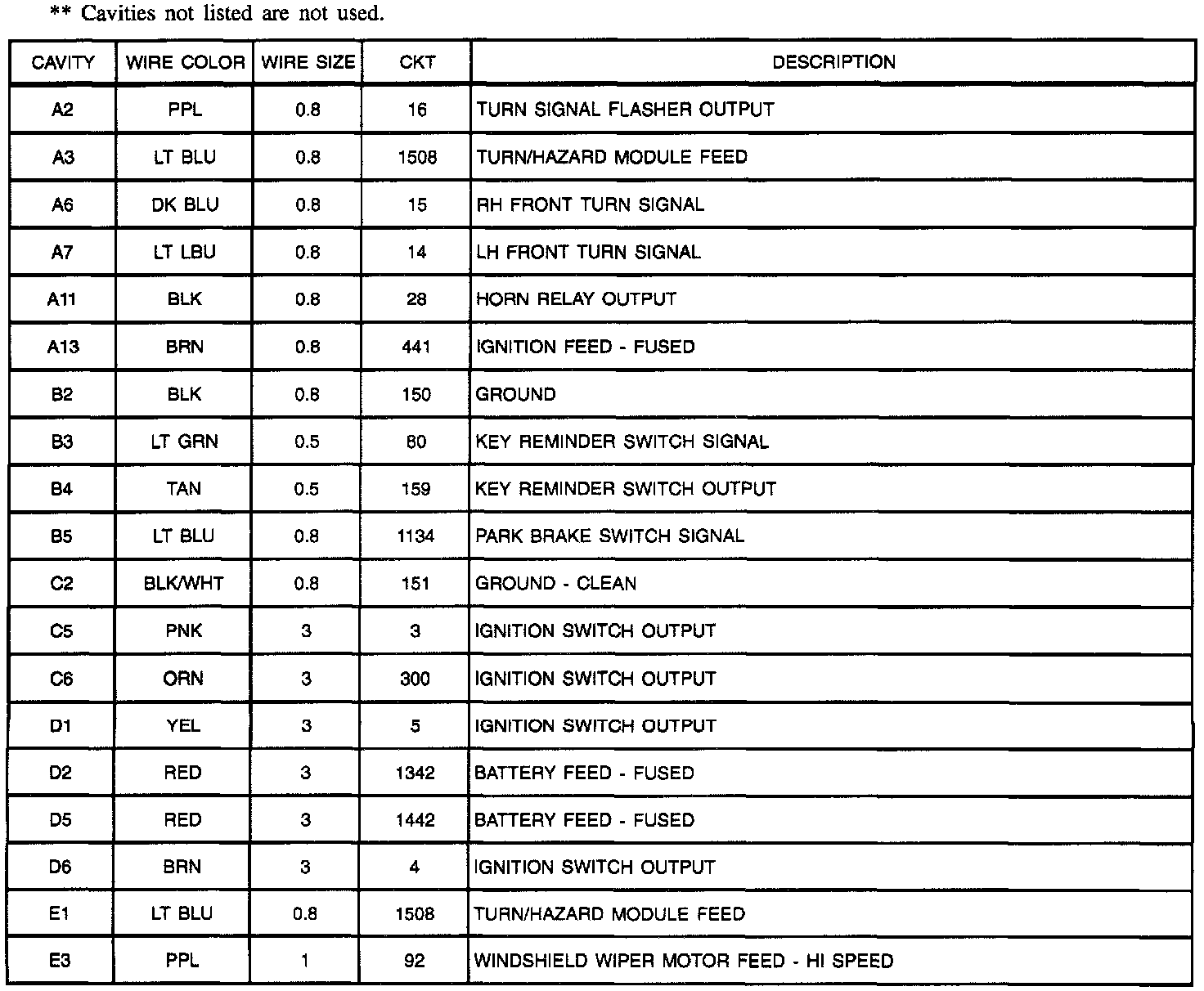

C206: Front Of Dash Harness, Steering Column Harness (Part 1 Of 2):

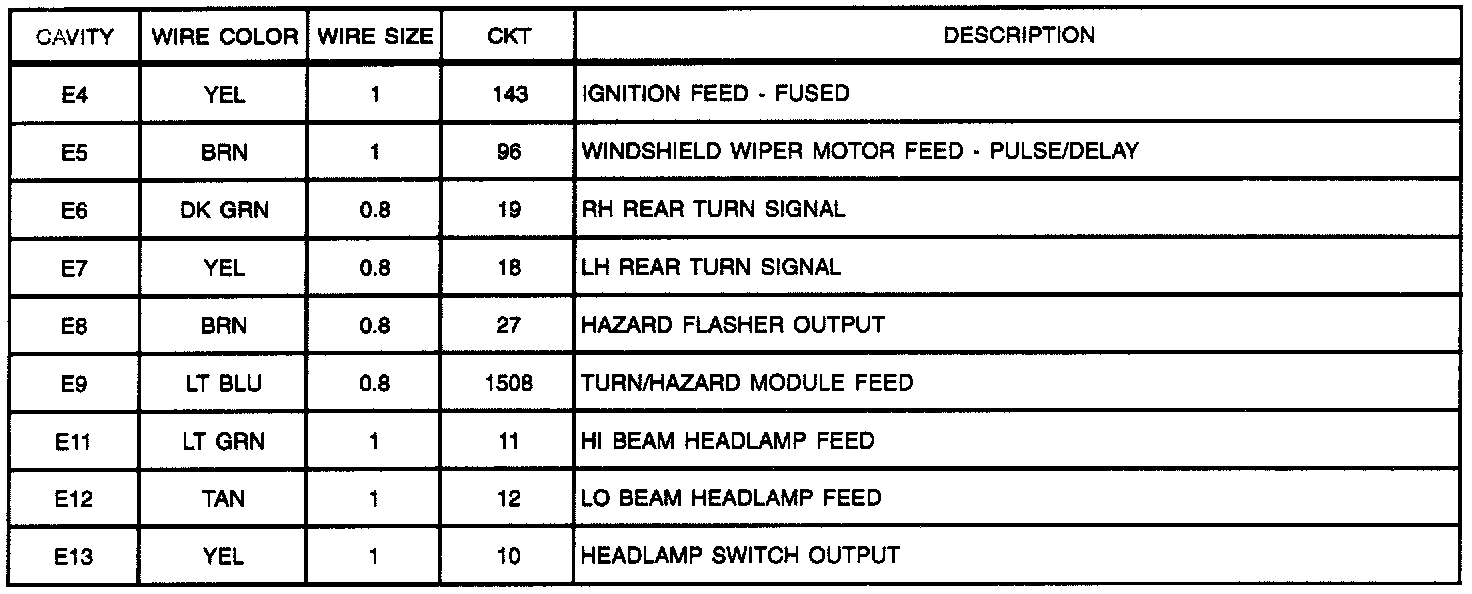

C206: Front Of Dash Harness, Steering Column Harness (Part 2 Of 2):
