Hombre L4-2.2L CPC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
Connector Views

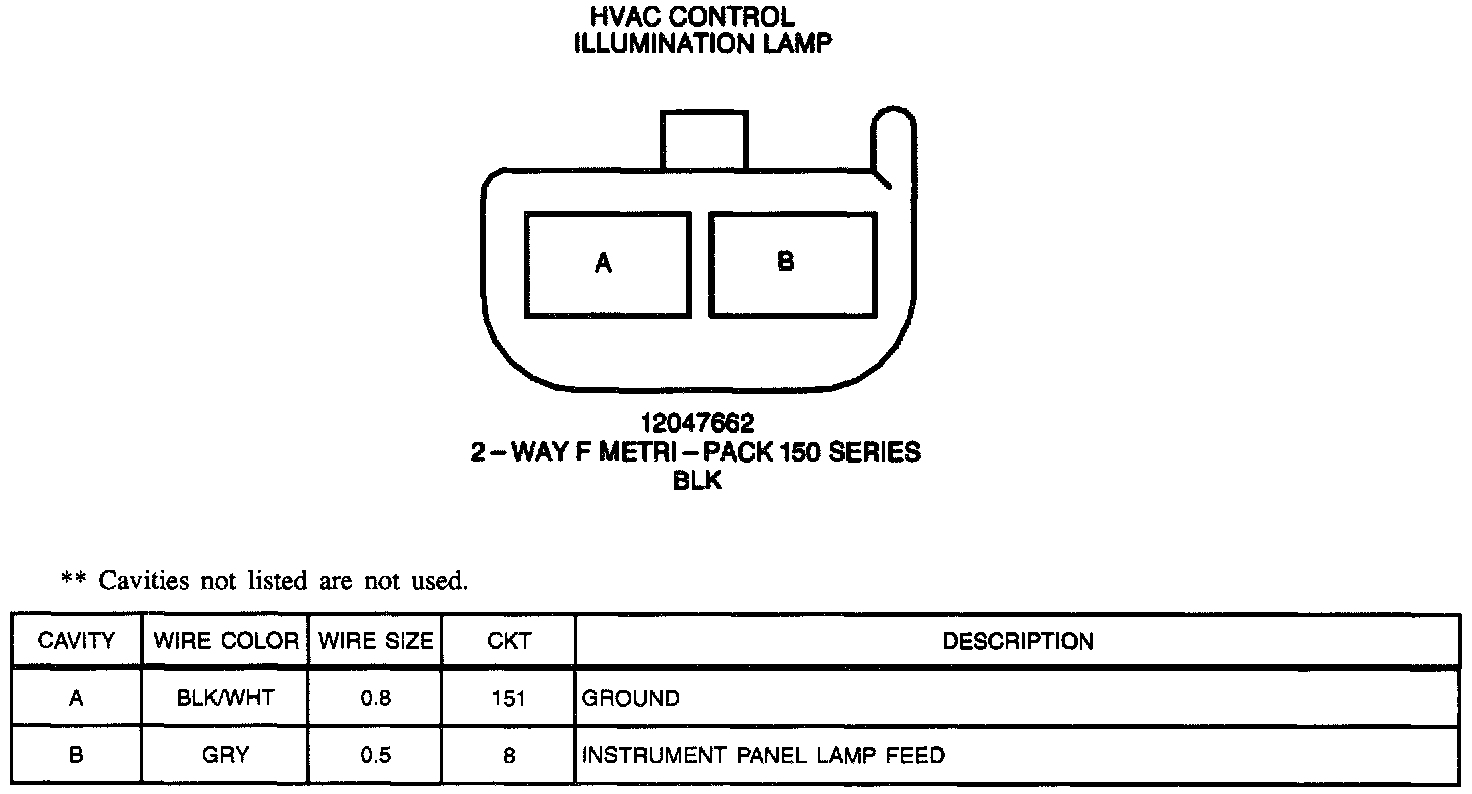

HVAC Control Illumination Lamp:

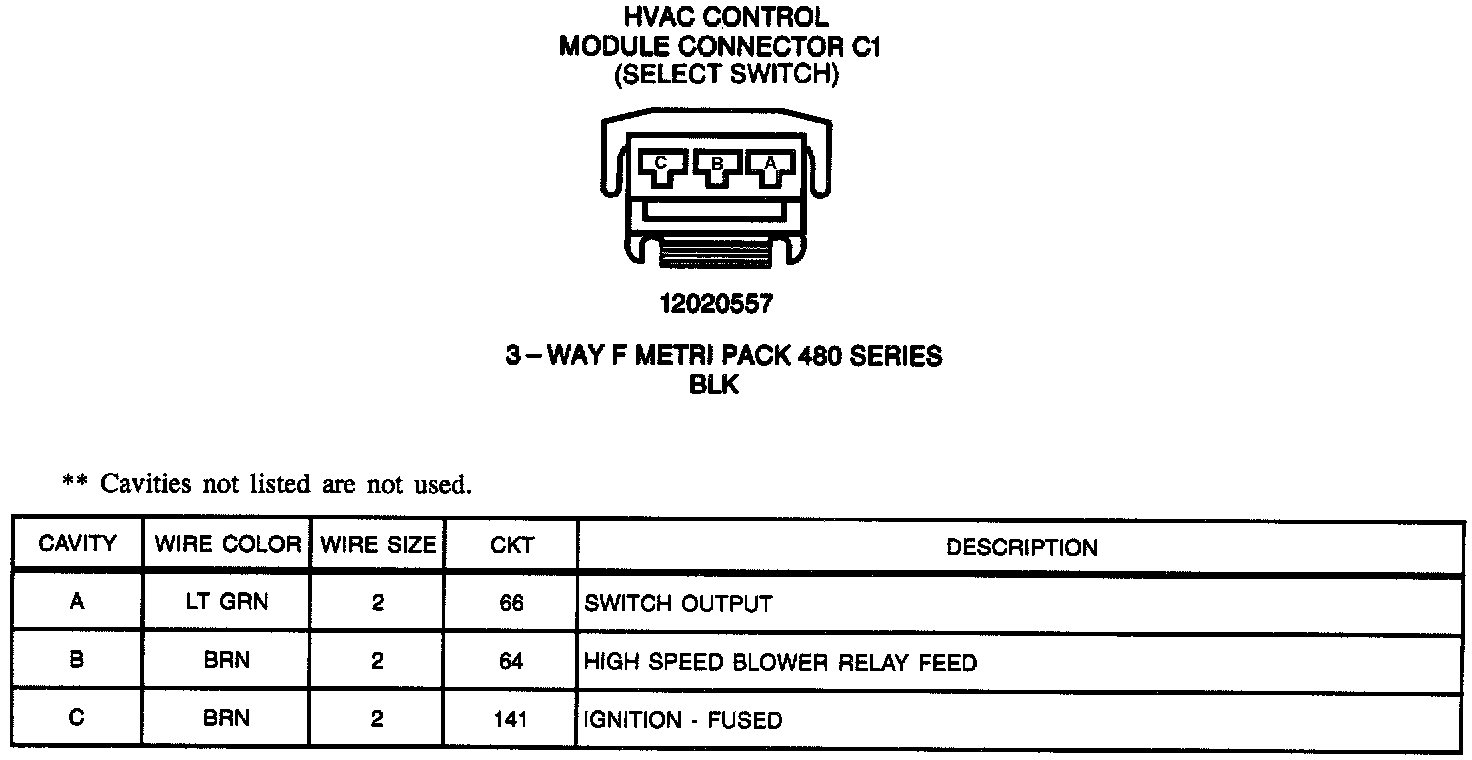

HVAC Control Module Connector C1 (Select Switch):

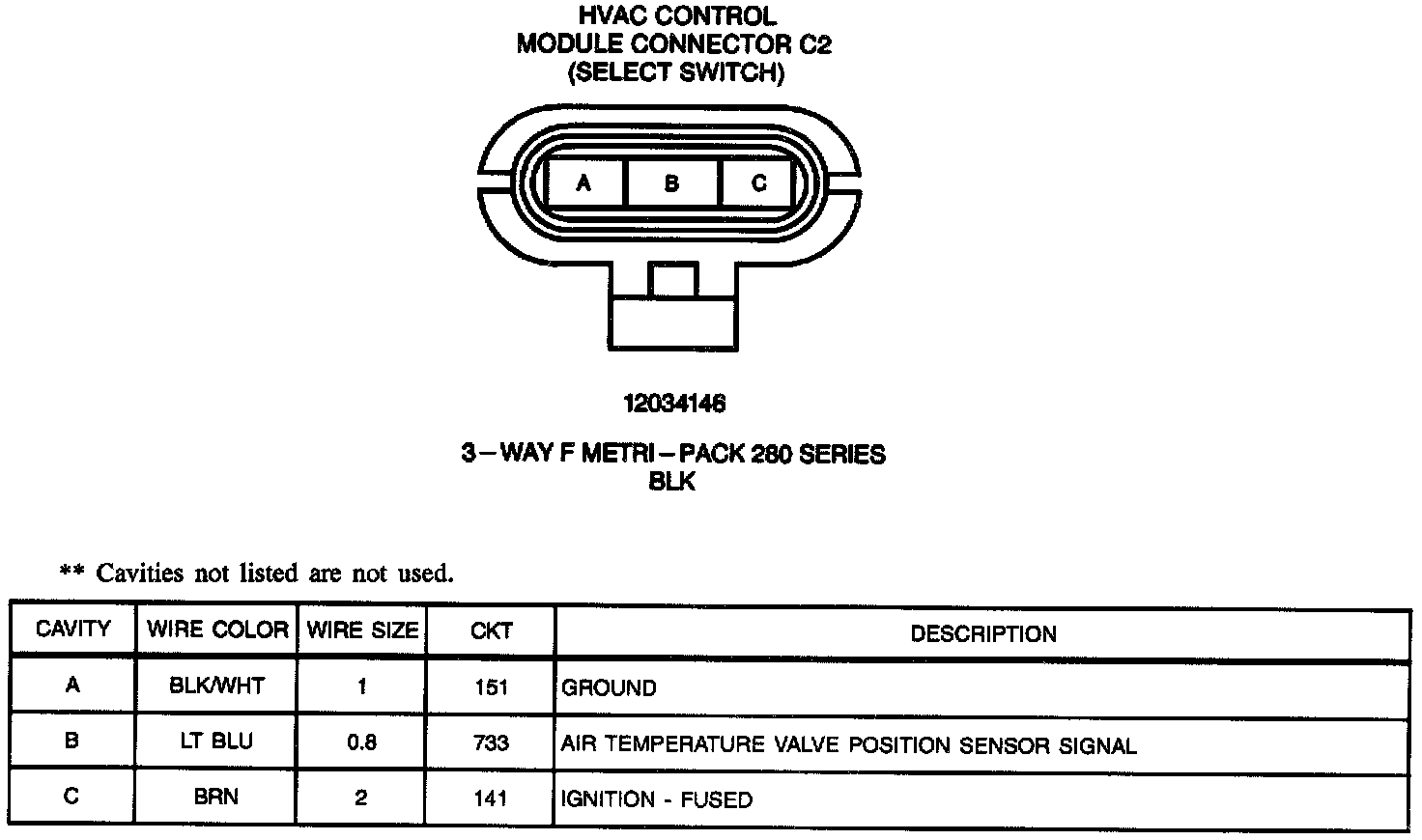

HVAC Control Module Connector C2 (Select Switch):

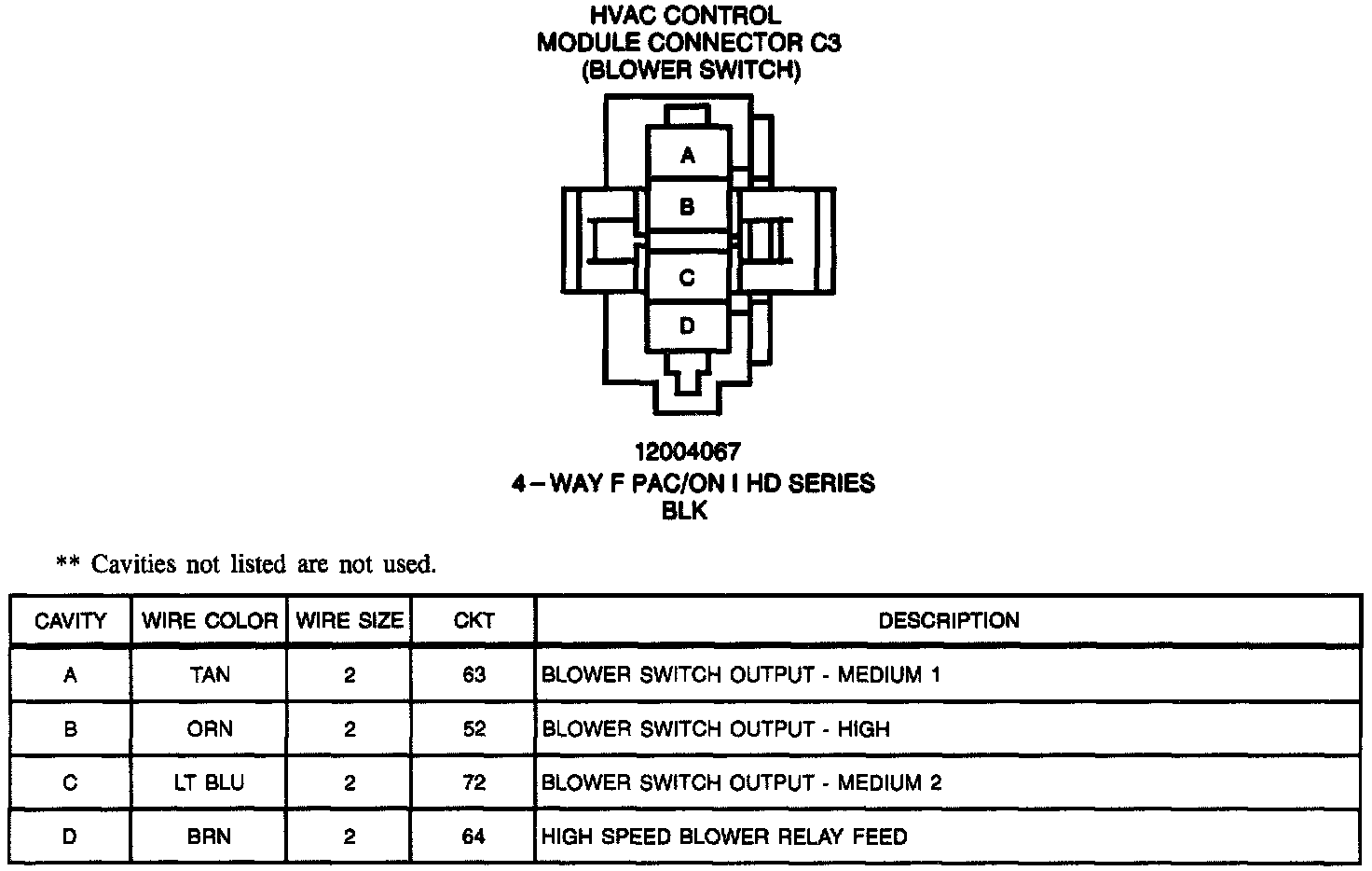

HVAC Control Module Connector C3 (Blower Switch):
