Vehicle Emissions Control Information Label

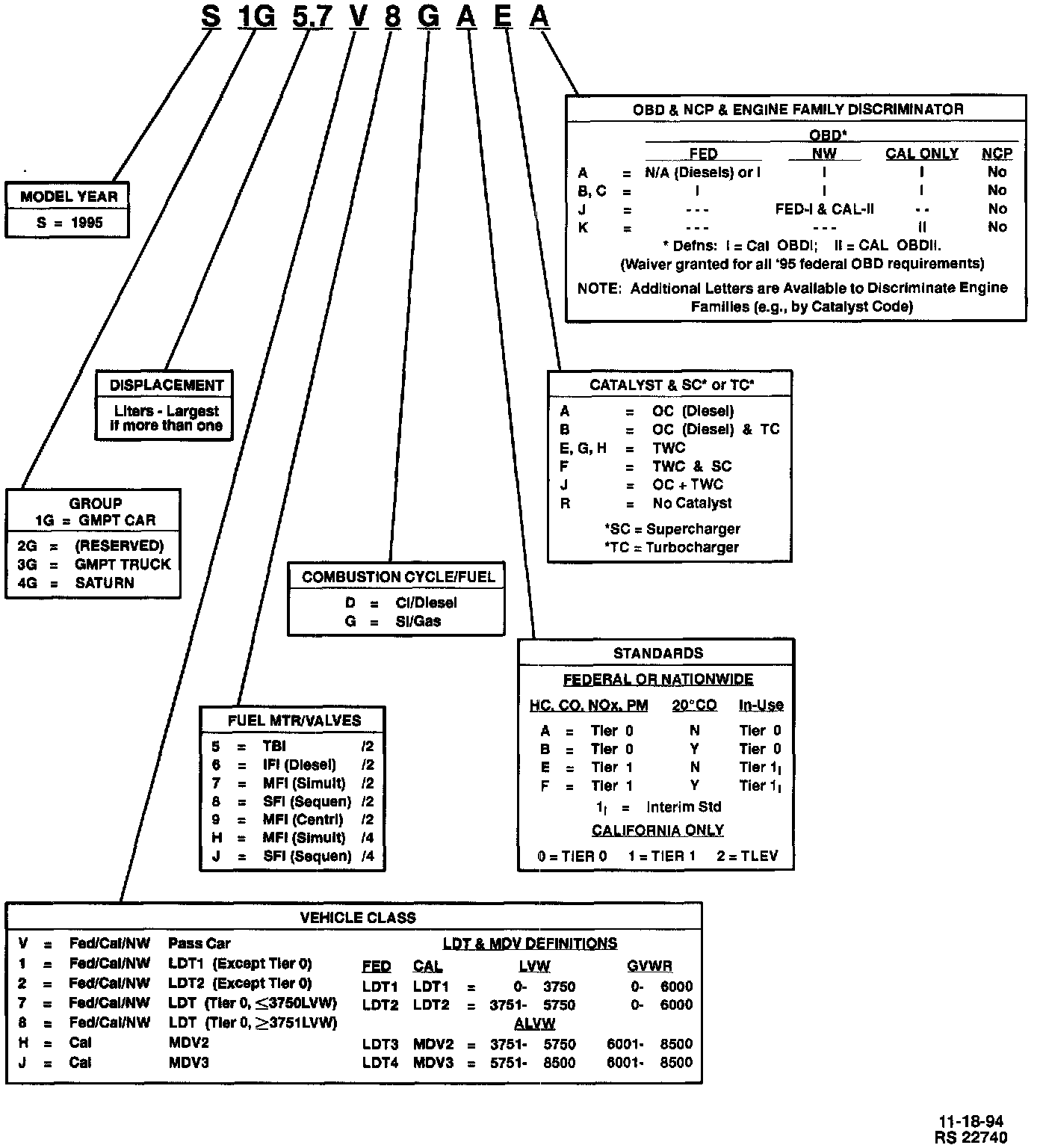

Figure 3-Sample Vehicle Emission Control Information Label Part 1:

Figure 4 Sample Vehicle Emission Control Information Label Part 2:

The Vehicle Emissions Control Information (VECI) label contains important emission specifications and procedures. On the upper left corner is the exhaust emission information. Also, there is an illustrated emission components and a vacuum hose schematic. This label is located in the engine compartment of every vehicle. If the label has been removed, a replacement label can be ordered.
