Under-Hood Fuse/Relay Box

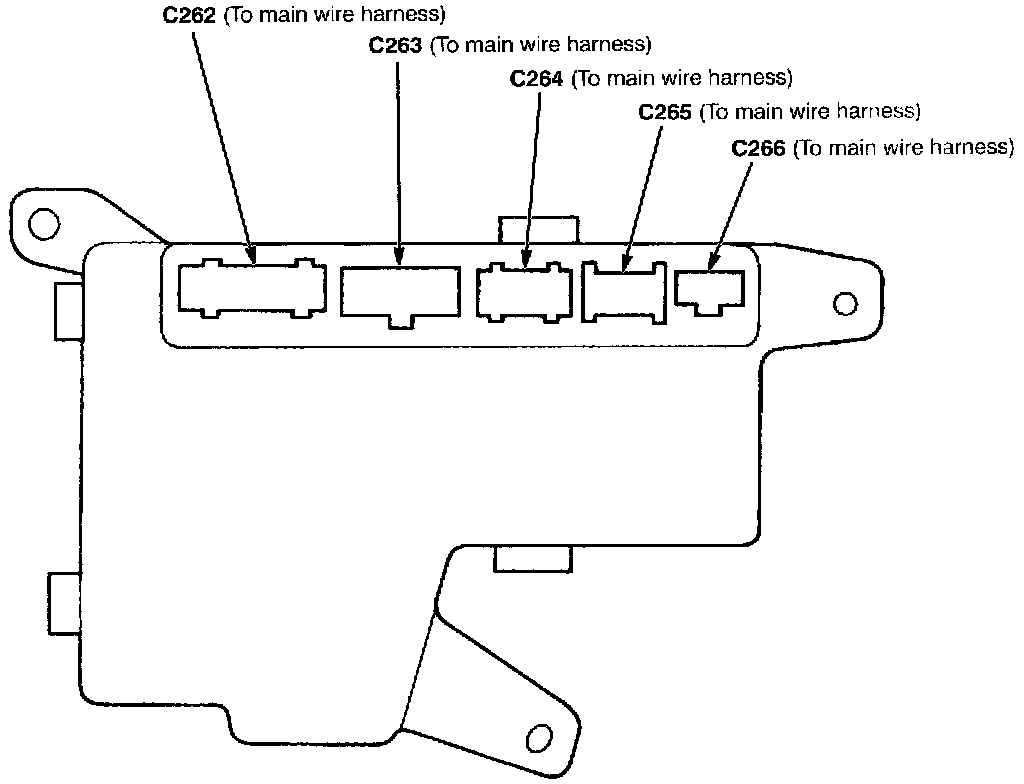

Fuse/Relay Information-Under-hood Fuse/Relay Box (Part 1a Of 2):

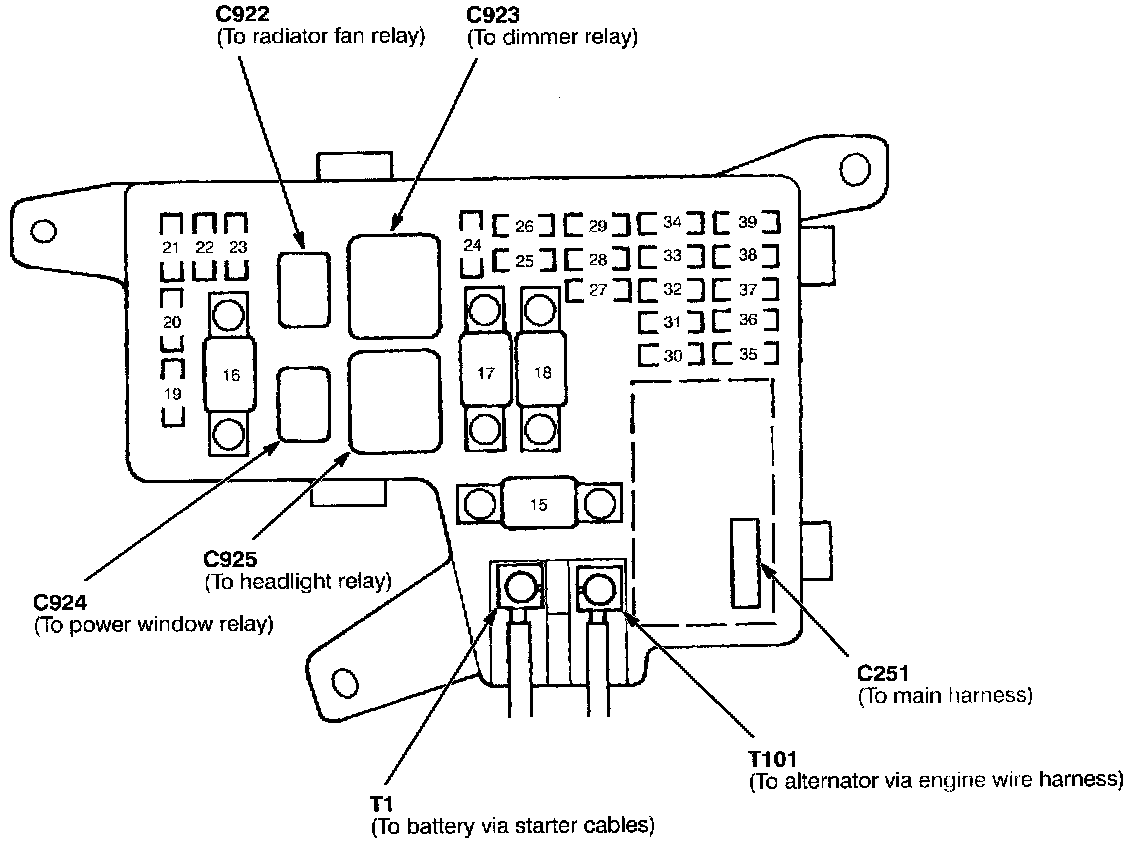

Fuse/Relay Information-Under-hood Fuse/Relay Box (Part 1b Of 2):

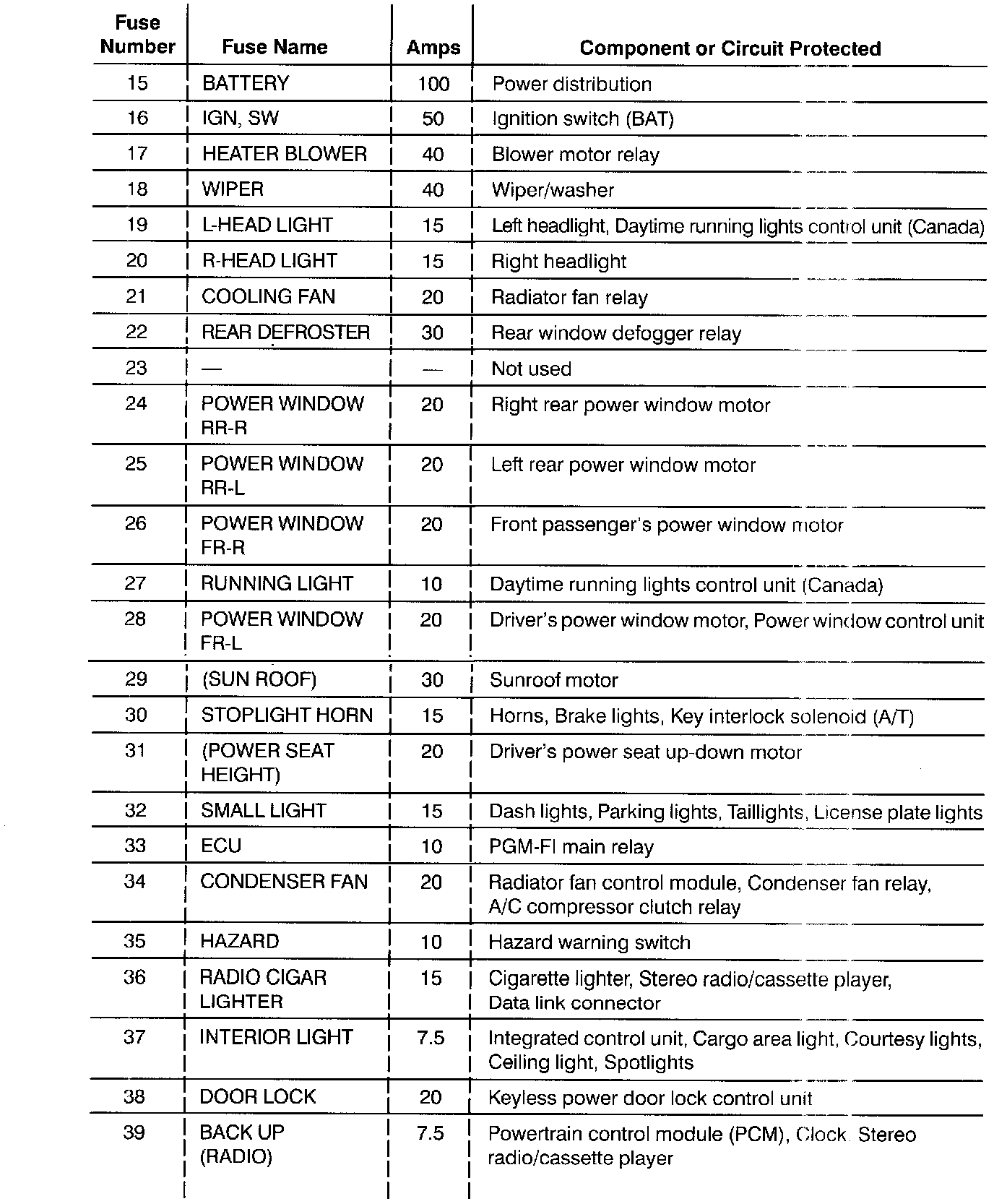

Fuse/Relay Information-Under-hood Fuse/Relay Box (Part 2 Of 2):
