Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
1996
>>
Oasis L4-2156cc 2.2L SOHC F22B6
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor Clutch Relay
>>
Locations
>>
Alternate View
Alternate View

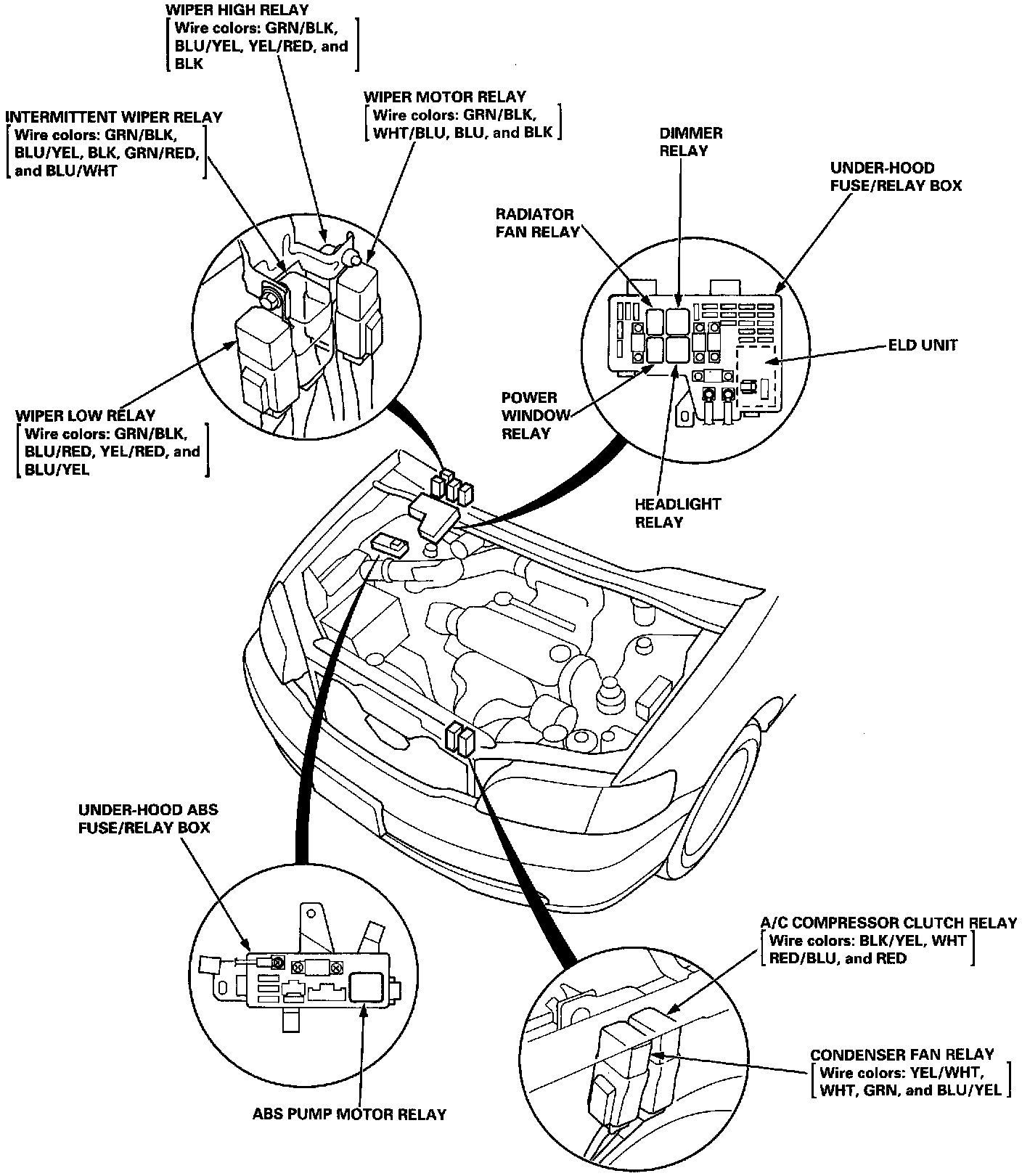

Engine Compartment:
