Home >> Isuzu >> 1996 >> Oasis L4-2156cc 2.2L SOHC F22B6 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Voltage Signal >> Testing and Inspection

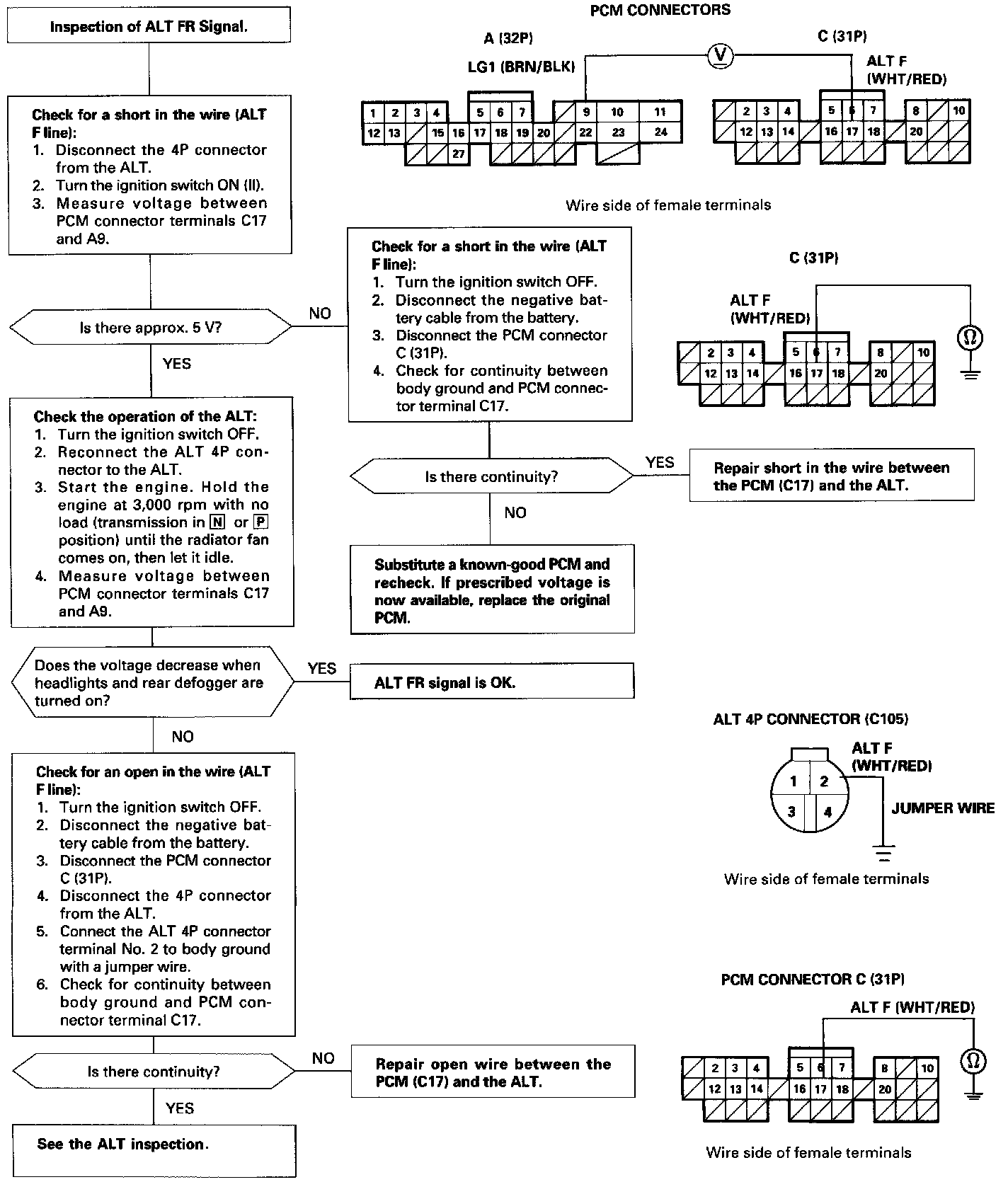

Voltage Signal: Testing and Inspection






This signals the PCM when the Alternator (ALT) is charging.
