Radiator Cooling Fan Control Module: Description and Operation

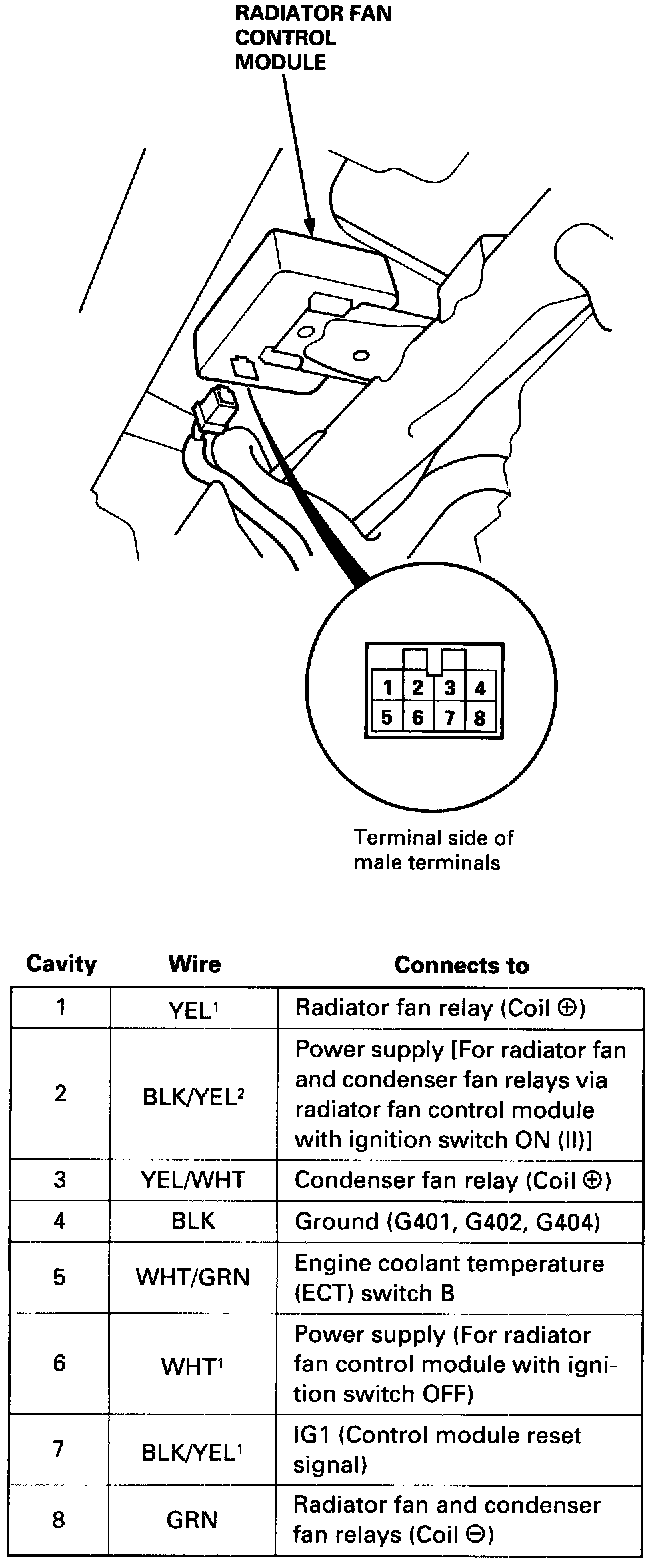

Radiator Fan Control Module Terminals:
