Home
>>
Isuzu
>>
1997
>>
Hombre S Regular Cab L4-2.2L CPC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Idle Up Control Valve
>>
Diagrams
>>

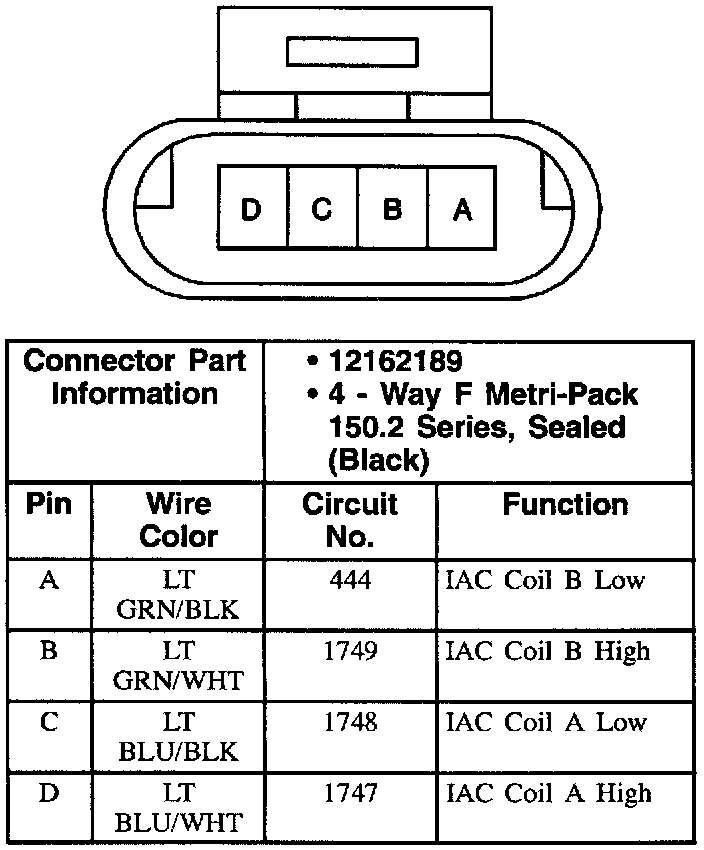

Connector Views
Connector Views
Idle Air Control Valve
