Stoplight Switch (For Vehicle Without Cruise Control)

REMOVAL




Preparation: Disconnect the battery ground cable.

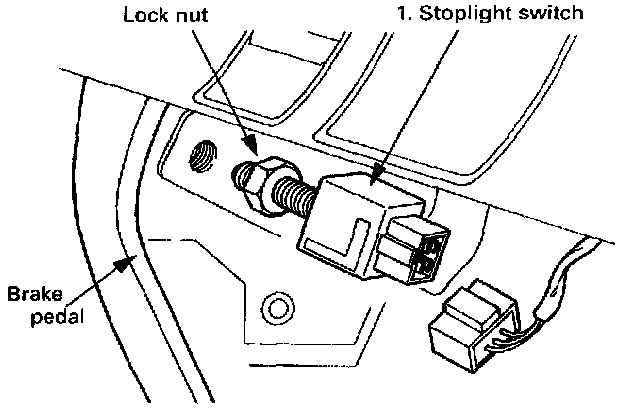

1. Stoplight switch
^ Disconnect the connector.
^ Loosen the lock nut of the switch.
^ Remove the switch by turning it.

INSTALLATION
To install, follow the removal steps in the reverse order, noting the following points.
1. Check to see if the brake pedal has been returned by the return spring to the specified position.
2. Turn the stoplight switch clockwise until the tip of the threaded portion of the switch contacts the pedal arm.




3. Turn the switch counterclockwise until the space between the tip of the threaded portion and the pedal arm is 0.5 to 1.0 mm (0.02 - 0.04 in.).
