C - Warning Lamp Does Not Come "ON" Steady

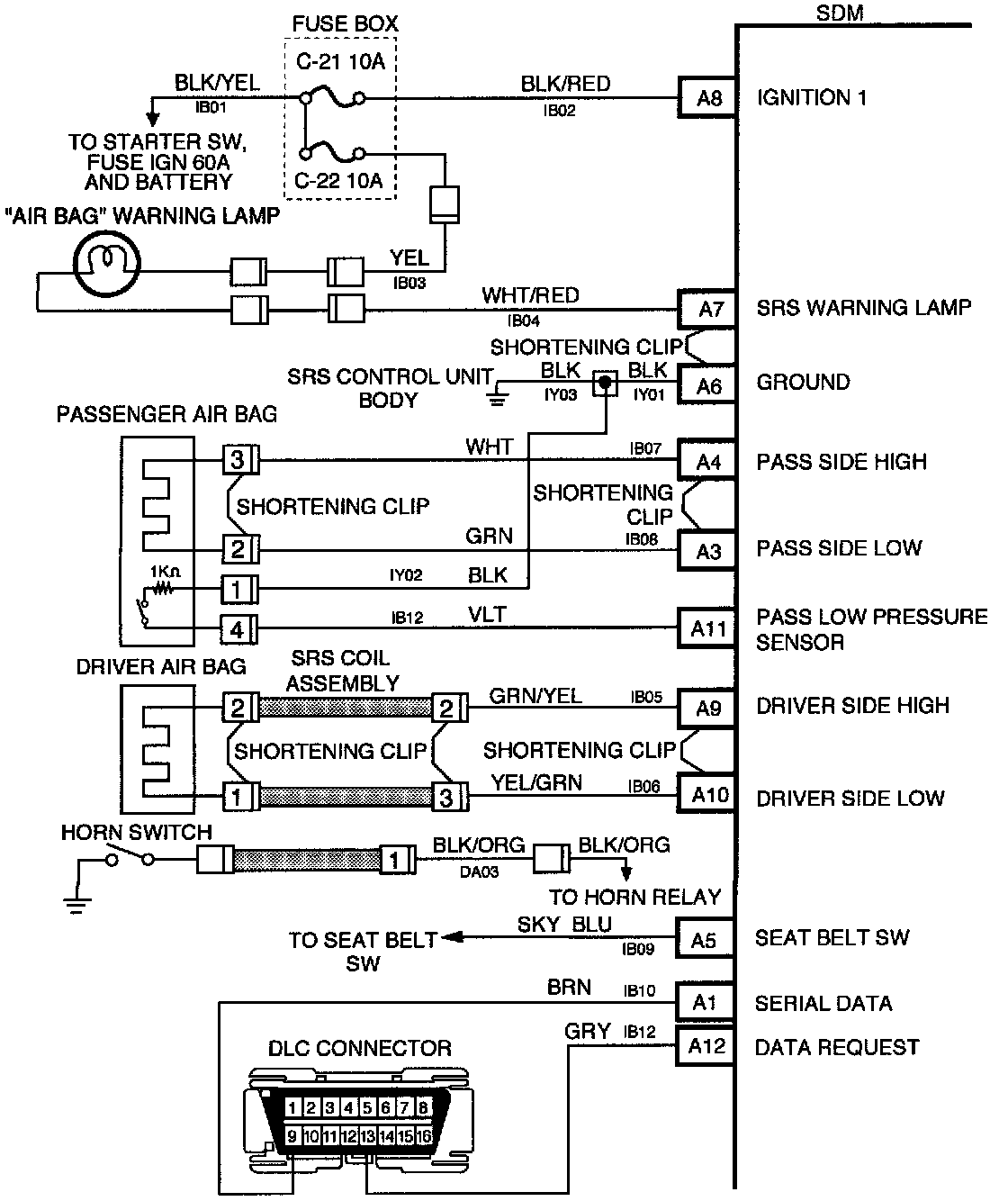

CHART C / part 1Chart C Air Bag Warning Lamp Does Not Comes On Stedy (1/2):
CIRCUIT DESCRIPTION
When the ignition switch is first turned "ON", "Ignition 1~ voltage is applied from the "0-22" fuse to the "AIR BAG" warning lamp which is connected to SRS warning lamp", terminal "A7". The "0-21" fuse apply system voltage to the "Ignition 1" inputs, terminals "A8". The SDM responds by flashing the "AIR BAG" warning lamp seven times. If "Ignition 1" is more than 16 volts, the "AIR BAG" warning lamp will come "ON" solid with no DTCs set.
Chart C Air Bag Warning Lamp Does Not Comes On Stedy (1/2):

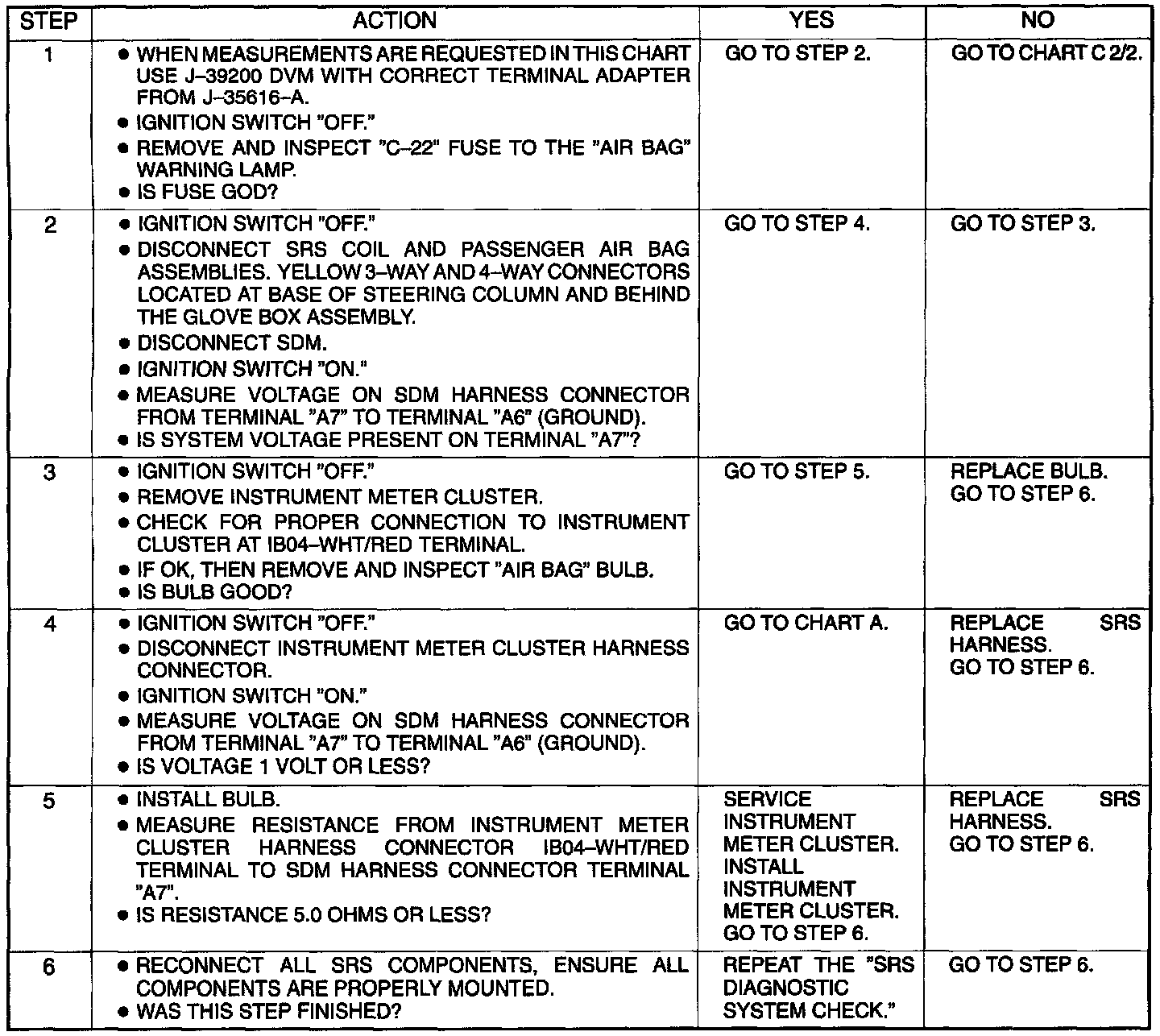

CHART TEST DESCRIPTION
Number(s) below refer to step number(s) on the diagnostic chart.
1. This test decides whether power is available to SDM warning lamp power feed circuit.
2. This test determines whether the voltage is present in the warning lamp circuit.
3. This test determines if the malfunction is in the instrument cluster.
4. This test checks for open in the warning lamp circuitry.
5. This test isolates the IB04-WHT/RED circuit and checks for a short in the IB04-WHT/RED circuit to B+.
CHART C / part 2

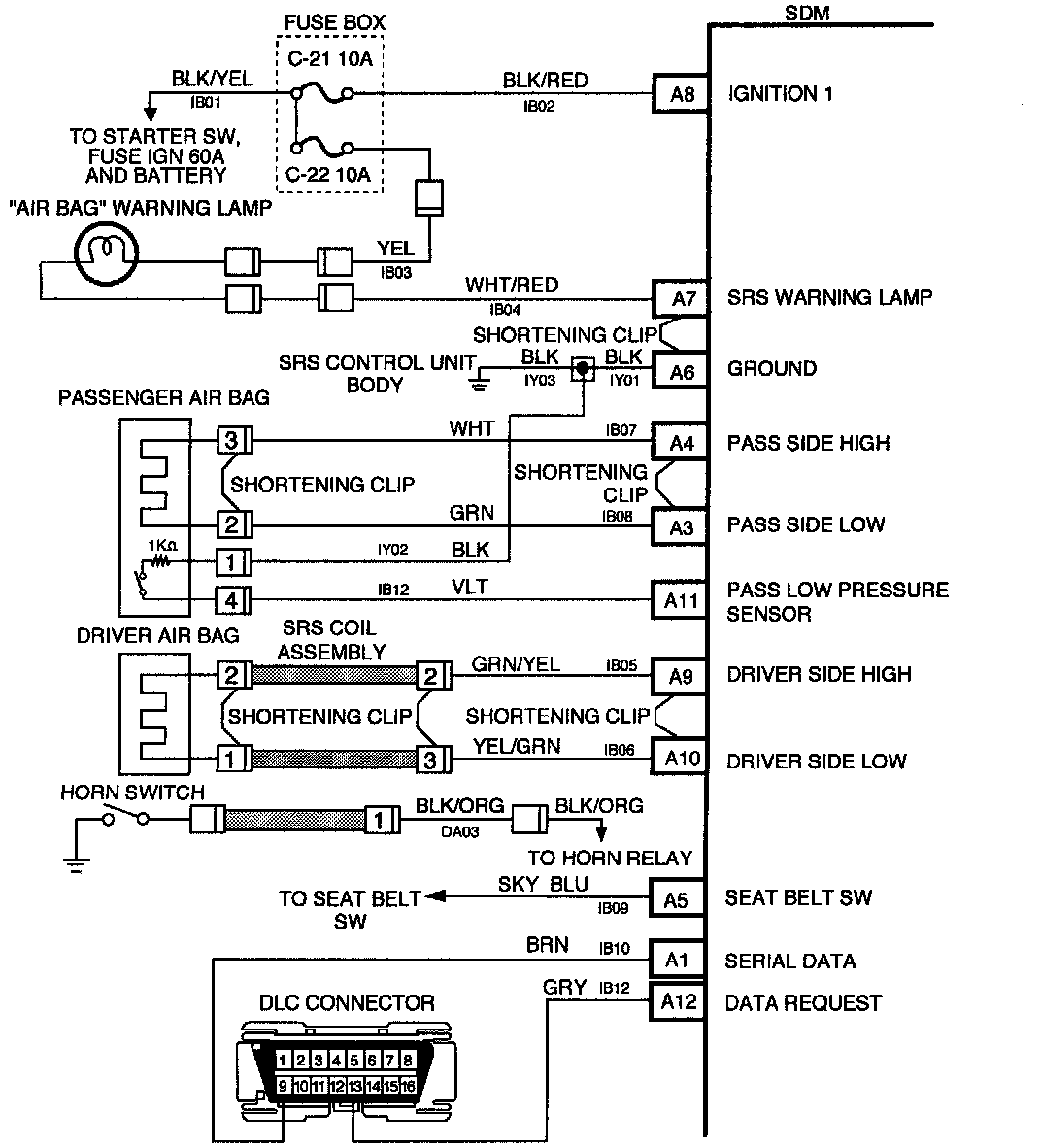

Chart C Air Bag Warning Lamp Does Not Comes On Stedy (2/2):
CIRCUIT DESCRIPTION
When the ignition switch is first turned "ON", "Ignition 1" voltage is applied from the "0-22" fuse to the "AIR BAG" warning lamp which is connected to "SRS Warning lamp", terminal "A7". The "0-21" fuses apply system voltage to the "Ignition 1" inputs, terminals "A8". The SDM responds by flashing the "AIR BAG" warning lamp seven times. If "Ignition 1" is more than 16 volts, the "AIR BAG" warning lamp will come "ON" solid with no DTCs set.
Chart C Air Bag Warning Lamp Does Not Comes On Stedy (2/2):

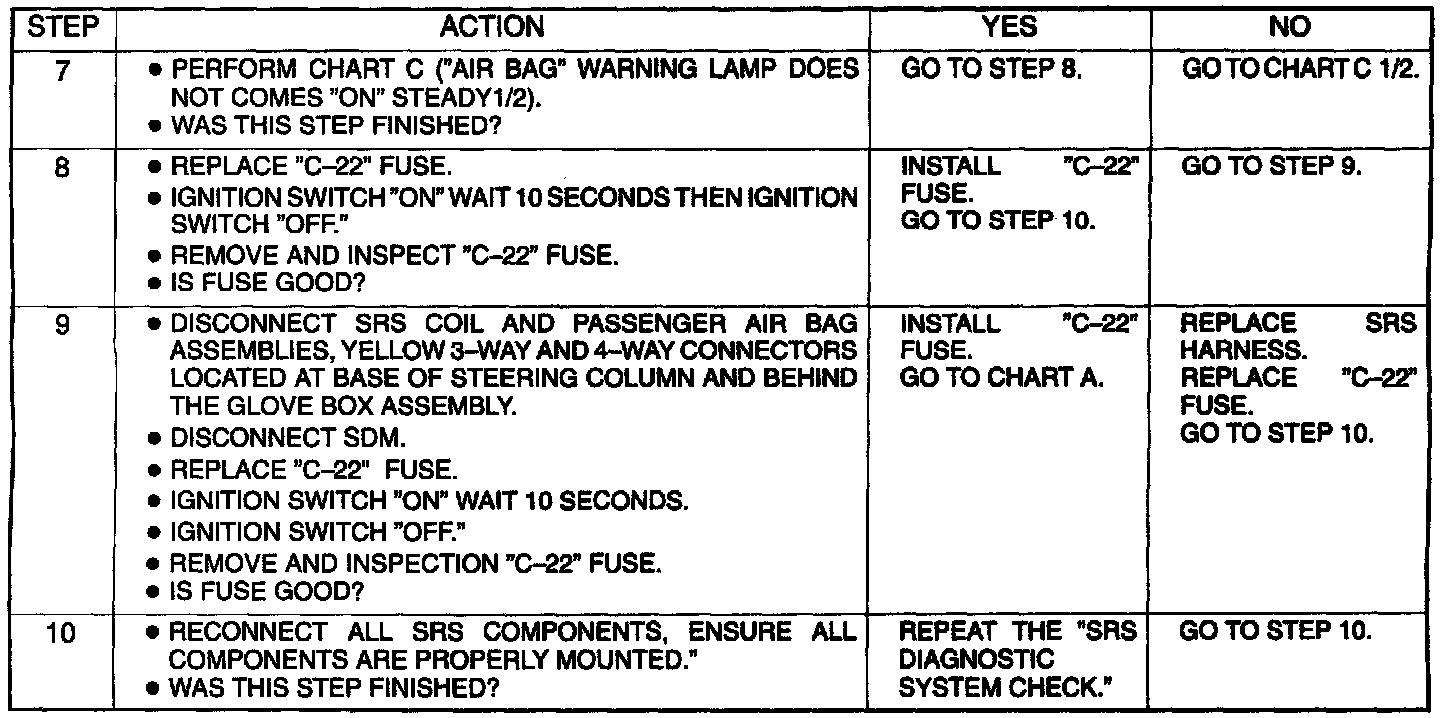

CHART TEST DESCRIPTION
8. This test checks for a short from the SDM warning lamp power feed circuit to ground.
9. This test determines whether the short to ground is due to a short in the wiring.
