Connector Views

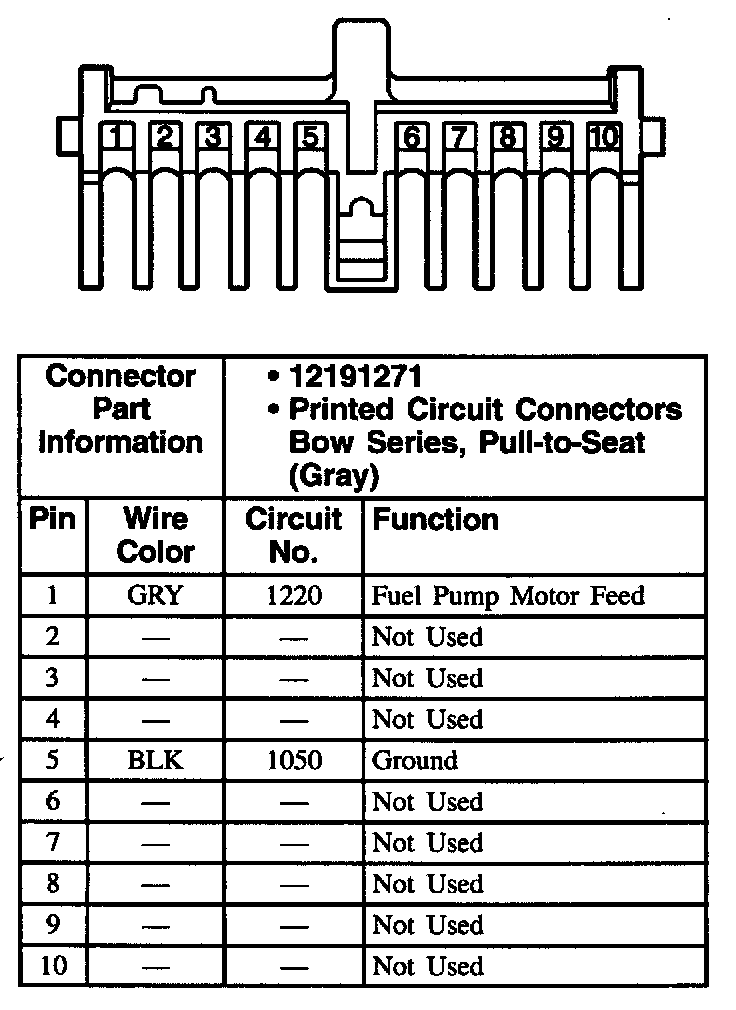

Heater and A/C Controller Connector C5:

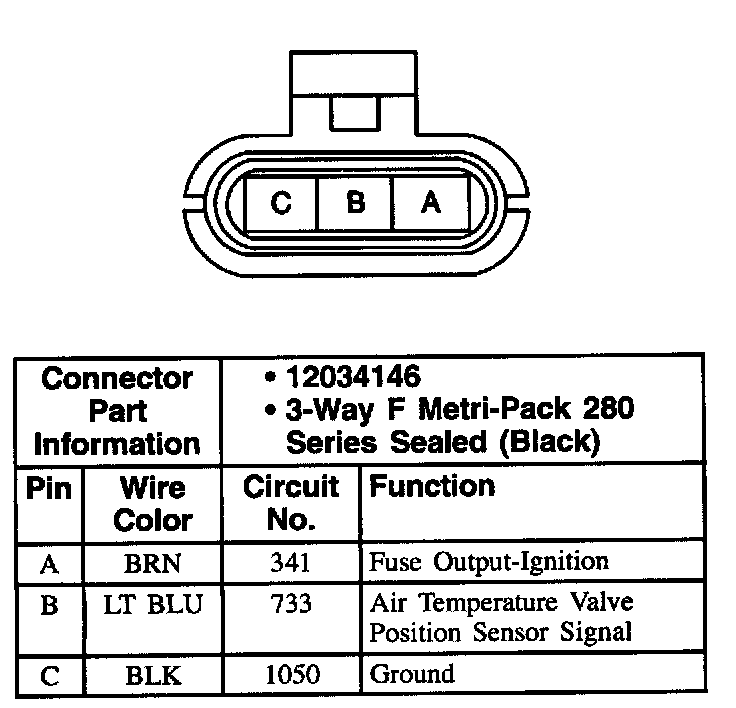

Heater and A/C Controller Connector C4:

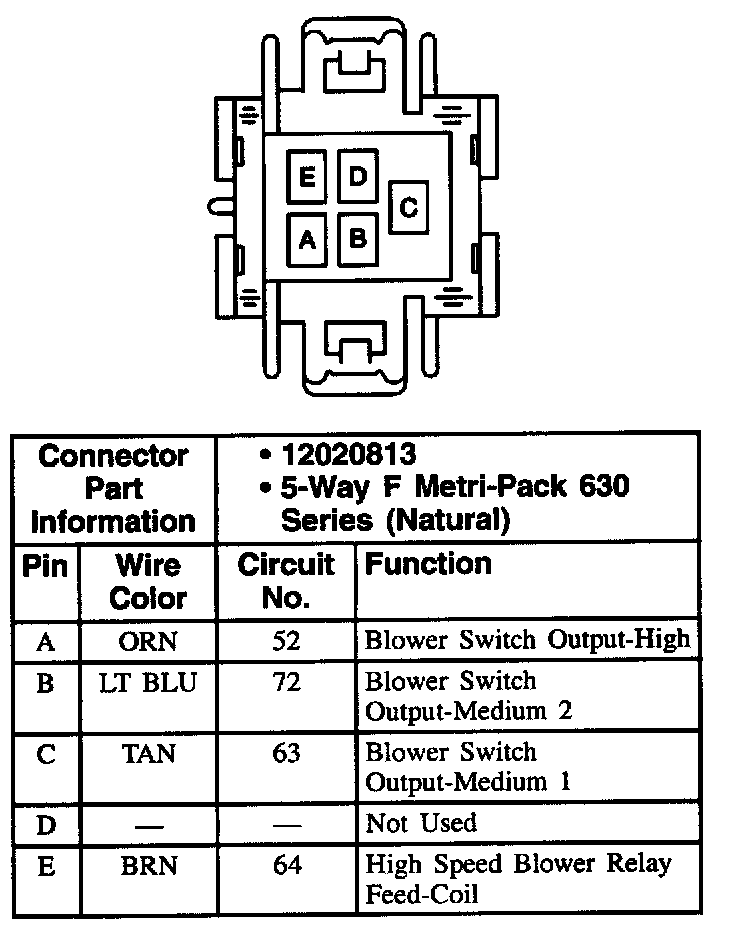

Heater and A/C Controller Connector C3:

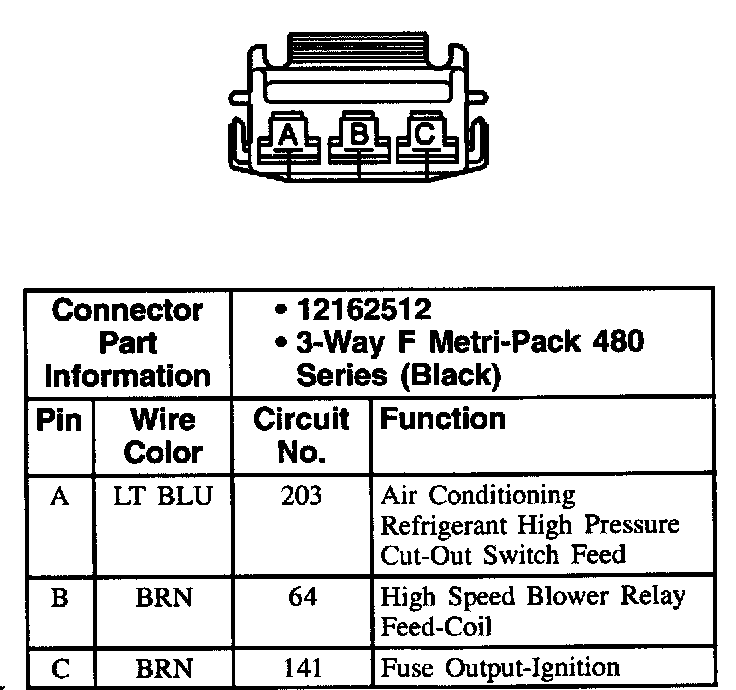

Heater and A/C Controller Connector C2:



Heater and A/C Controller Connector C1:
