Triple Pressure Switch

TRIPLE PRESSURE SWITCH
Triple pressure switch is installed on the upper part of the receiver/drier. This switch is constructed with a unitized type of two switches.

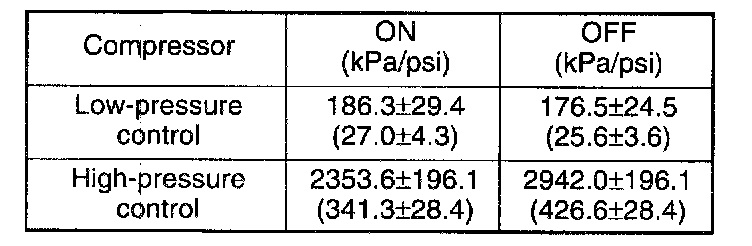

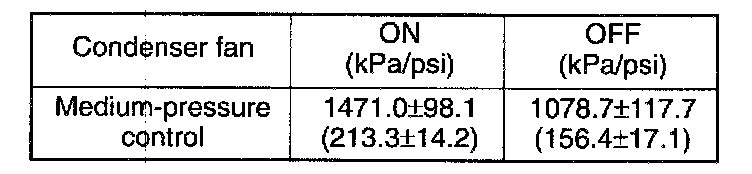

One of them is a low and high pressure switch (Dual pressure switch) to switch "ON" or "OFF" the magnetic clutch as a result of irregularly high-pressure or low pressure of the refrigerant. The other one is a medium pressure switch (Cycling switch) to switch "ON" or "OFF" the condenser fan sensing the condenser high side pressure.
