Roll Bar: Service and Repair

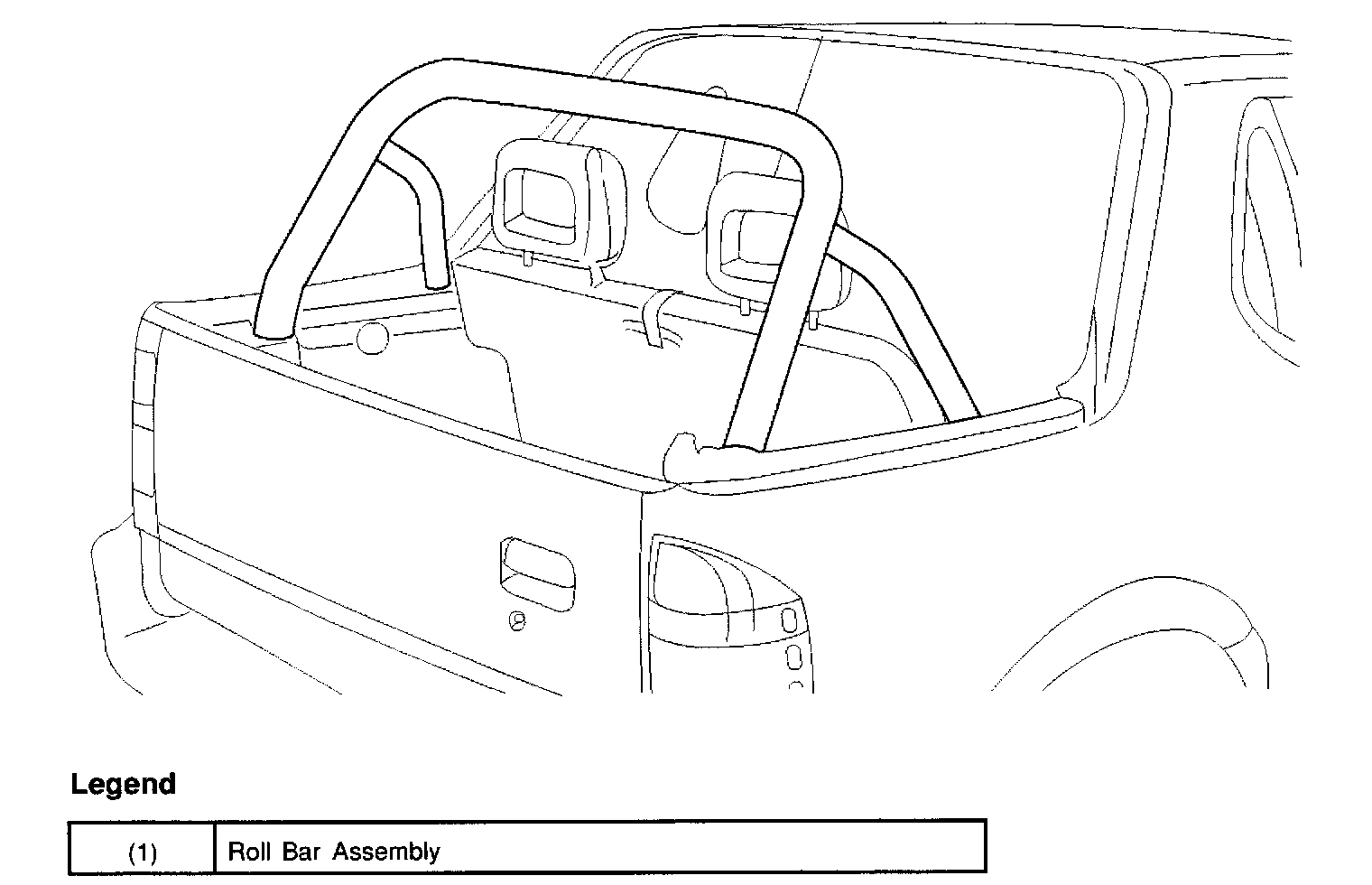

Roll Bar Assembly

Removal
1. Roll bar assembly (Fixing Bolt 5).
2. Rear quarter molding assembly (Bolt 6) 12HEX (3).

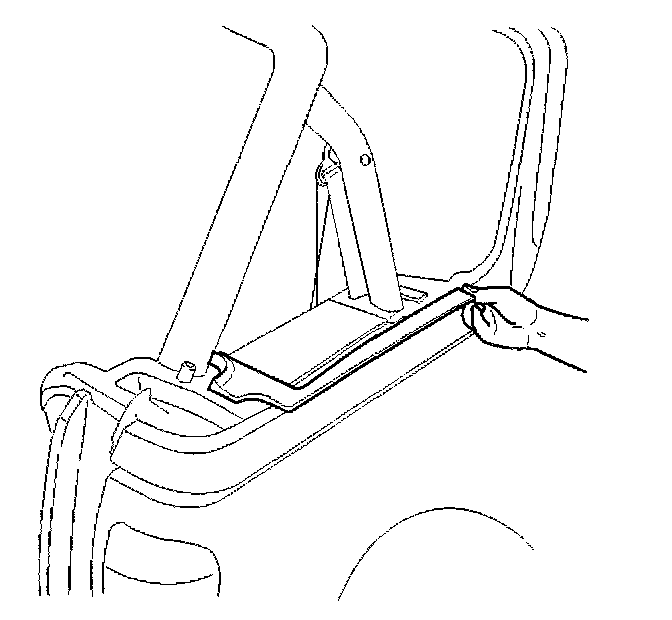

3. Rear quarter side luggage upper cover.
4. Rear quarter rid cover and side luggage trim cover.




5. Rear quarter molding




6. Rear quarter side luggage upper cover.




7. Rear quarter lid cover and side luggage trim cover.
8. Rear sil plate assembly.
9. Move rear quarter seal (weather strip) aside.
10. Quarter trim lower cover.

Installation
To install, follow the removal steps in the reverse order.
