Hombre S Regular Cab 2WD L4-2.2L CPC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Air Injection
>>
Locations
>>
Component Locations
Component Locations

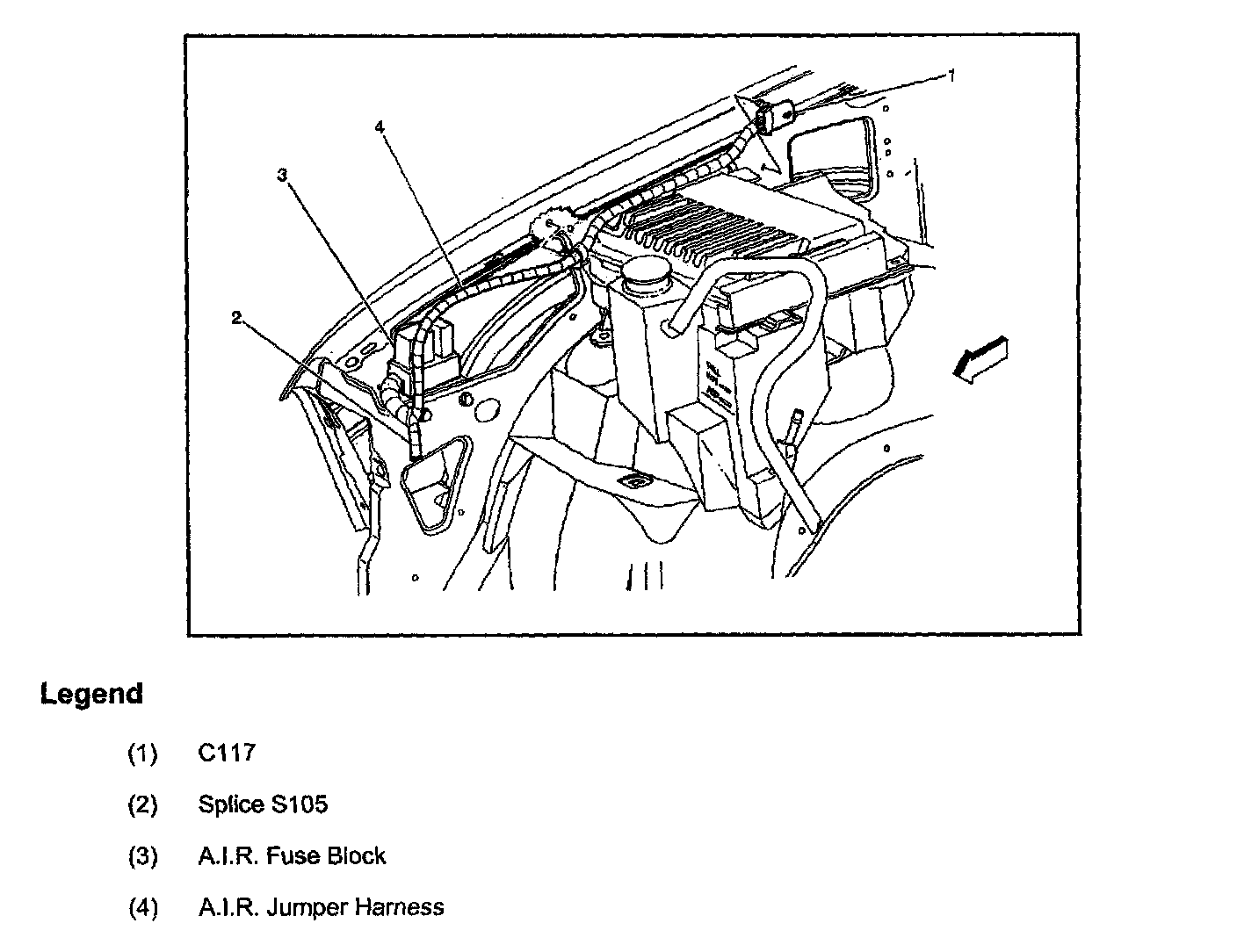

Air Injector Reactor (AIR) Fuse Block:
