Rear Seat Assembly

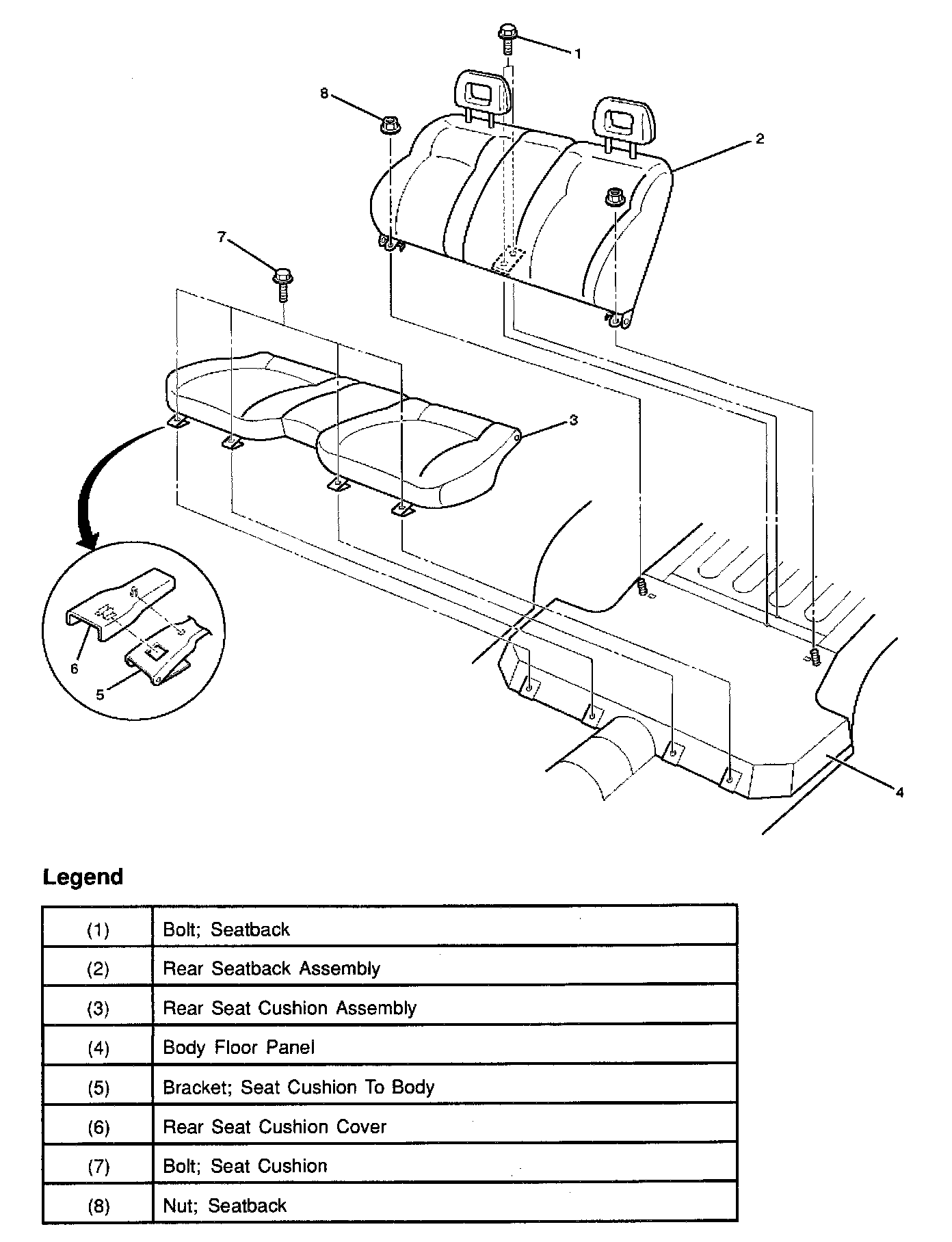

Rear Seat Assembly and Associated Parts

Removal
1. Remove the rear seat cushion cover.
2. Remove the seat cushion fixing bolt.
3. Remove the rear seat cushion assembly.
4. Remove the seatback fixing nut.
5. Remove the seatback fixing bolt.
6. Remove the rear seat assembly.

Installation
To install, follow the removal steps in the reverse order, noting the following point:
1. Tighten the rear seat fixing bolts to the specified torque.
Torque: 39 Nm (29 lb.ft)
