Circuit Diagram

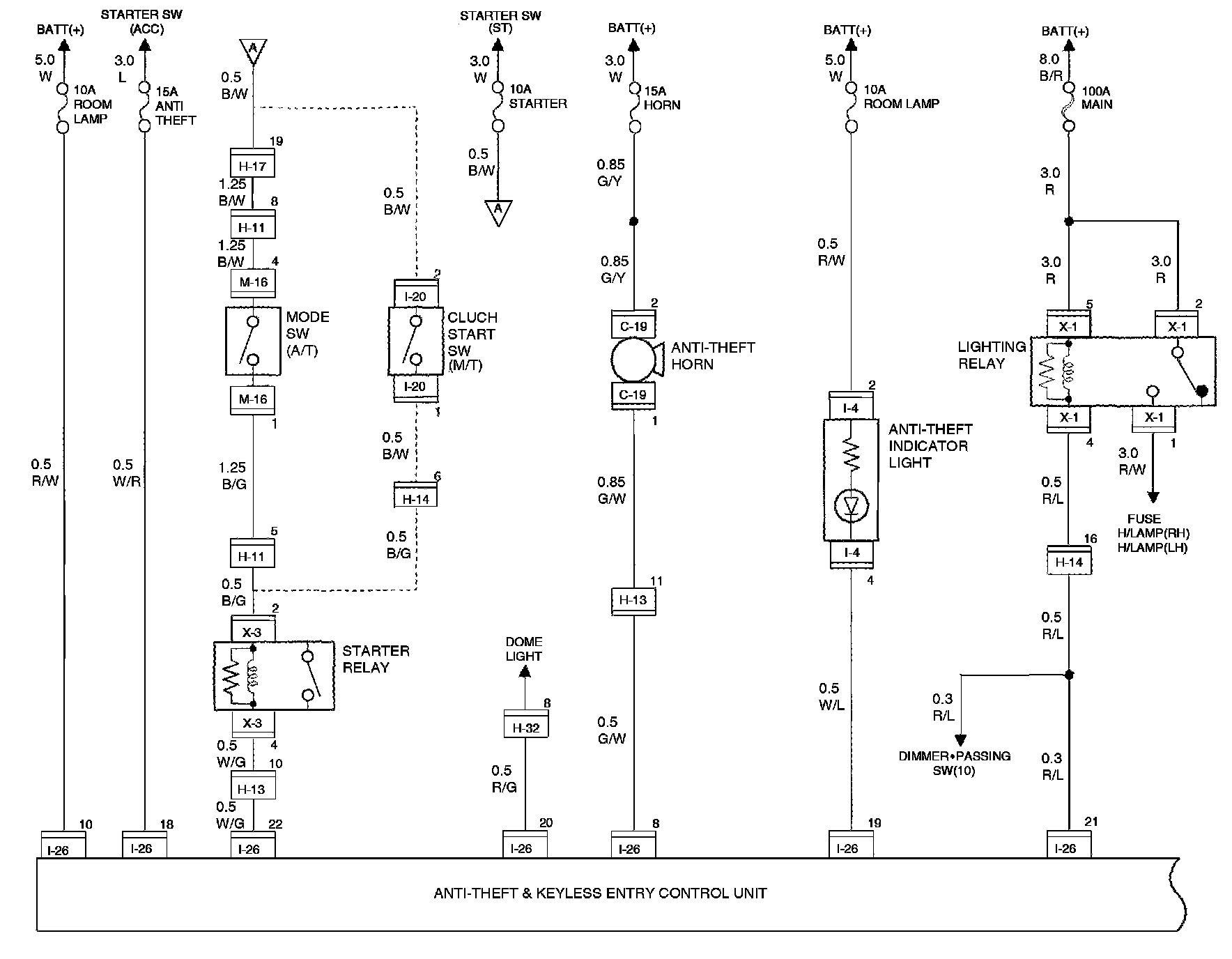

Circuit Diagram-1
Anti-Theft Horn
Anti-Theft Indicator Light
Anti-Theft & Keyless Entry Control Unit
Clutch Start SW (M/T)
Lighting Relay
Mode SW (A/T)
Starter Relay

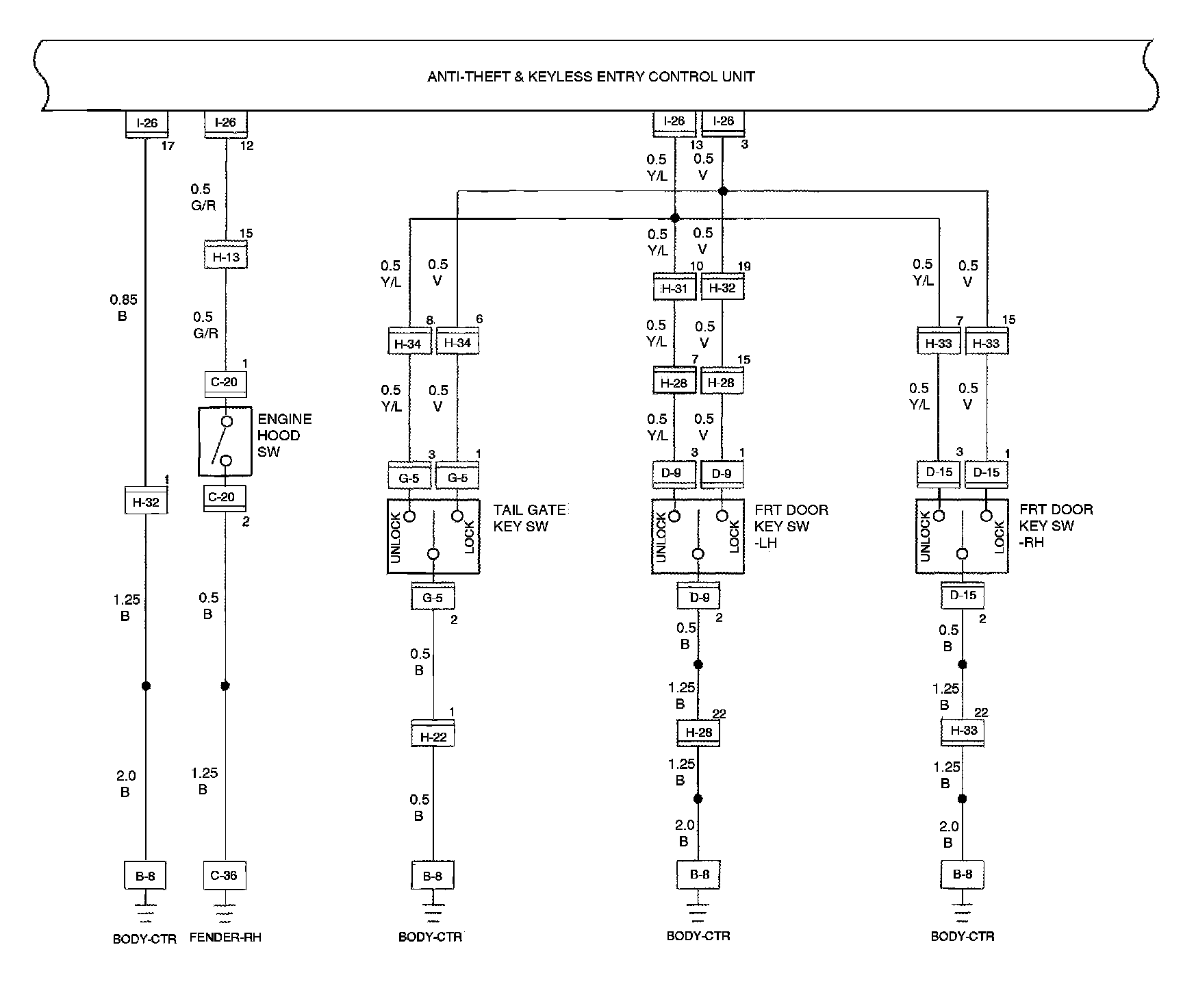

Circuit Diagram-2
Anti-Theft & Keyless Entry Control Unit
Engine Hood SW
Frt Door Key SW - LH
Frt Door Key SW - RH
Tail Gate Key SW

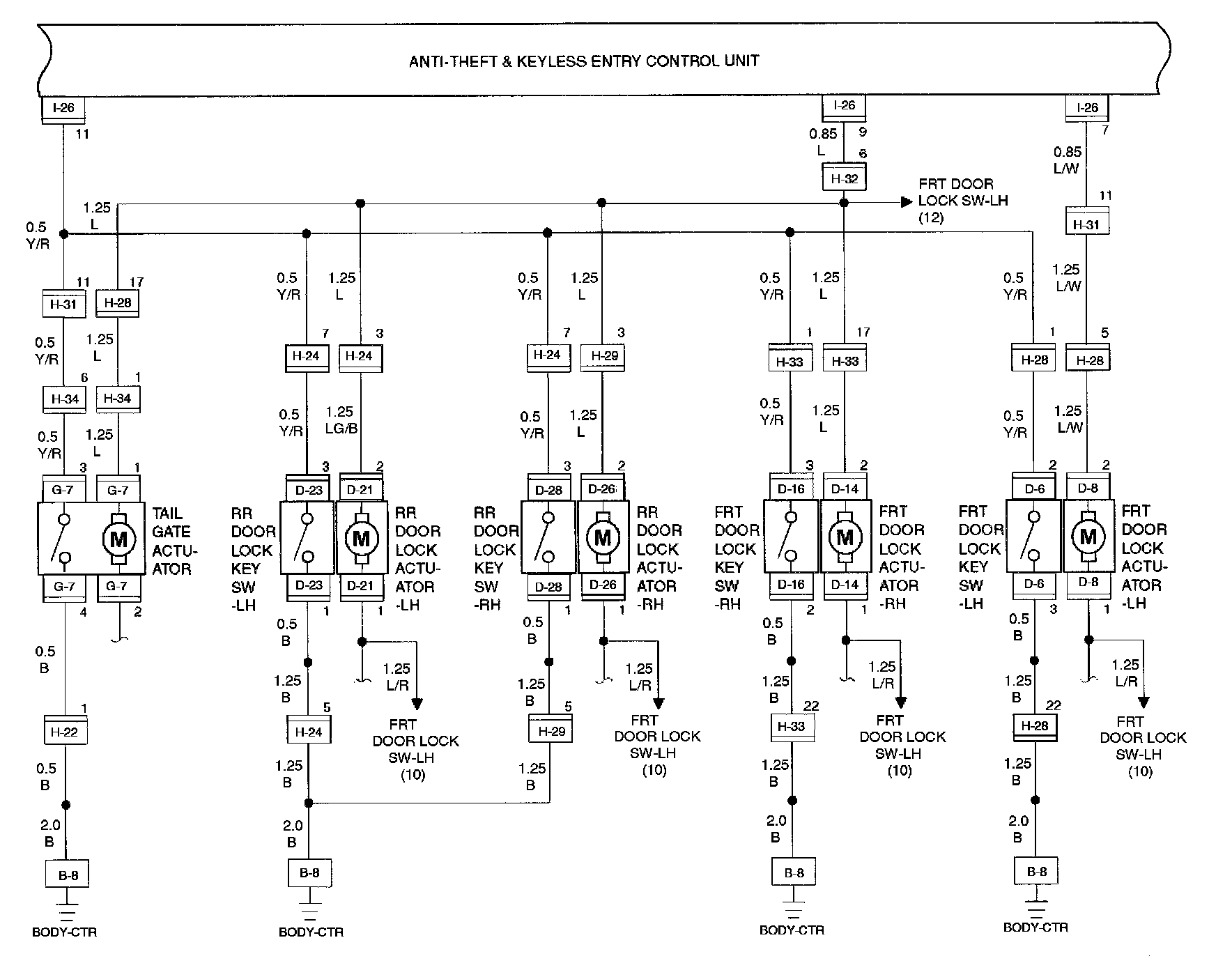

Circuit Diagram-3
Anti-Theft & Keyless Entry Control Unit
Body-Ctr
Frt Door Lock Actuator - LH
Frt Door Lock Actuator - RH
RR Door Lock Key SW - LH
RR Door Lock Key SW - RH
RR Door Lock Actuator - LH
RR Door Lock Actuator - RH

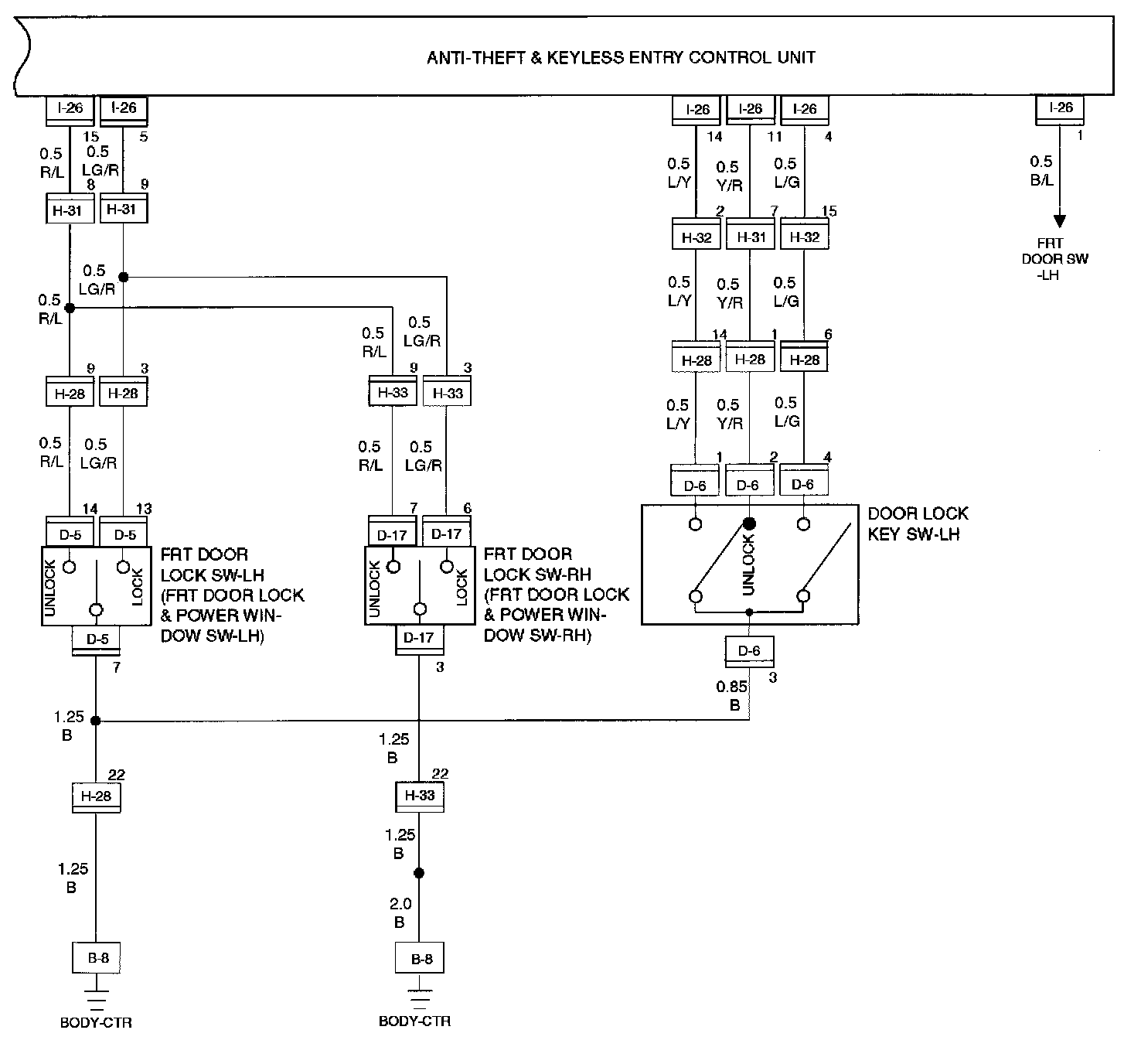

Circuit Diagram-4
Anti-Theft & Keyless Entry Control Unit
Door Lock Key SW - LH
Frt Door Lock SW - LH (Frt Door Lock & Power Window SW - LH)
Frt Door Lock SW - RH (Frt Door Lock & Power Window SW - RH)
