Compressor Clutch Relay: Service and Repair

REMOVAL
1. Remove the fuse and relay box cover from under the hood.
2. Consult the diagram on the cover to determine which is the correct relay.

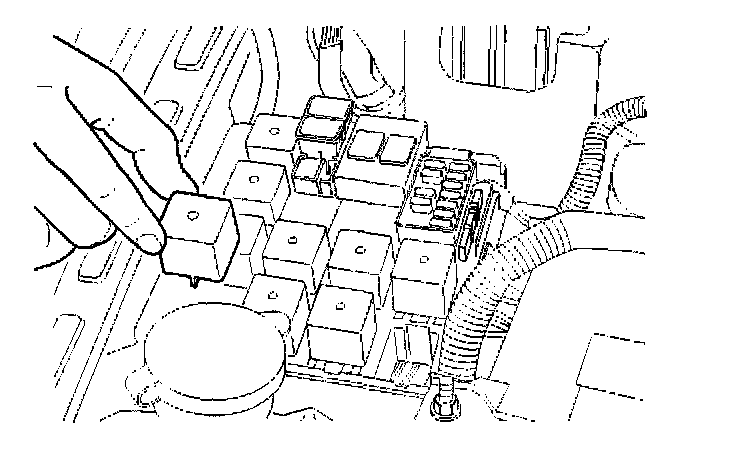

3. Pull the relay straight up and out of the fuse and relay box.

INSTALLATION
1. Insert the relay into the correct place in the fuse and relay box with the catch slot facing forward.
2. Press down until the catch engages.
- An audible click will be heard.
3. Install the fuse and relay box cover.
