Dual Pressure Switch

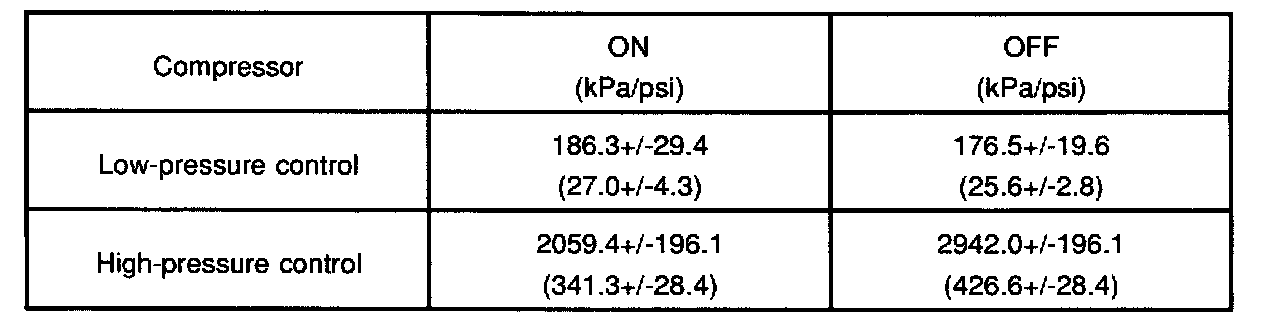

The pressure switch (Dual pressure switch) (2) is installed on the upper part of the receiver/drier, to detect excessively high pressure (high pressure switch) and prevent compressor seizure due to the refrigerant leaking (low pressure switch), so that the compressor is able to be turned
ON or
OFF.
