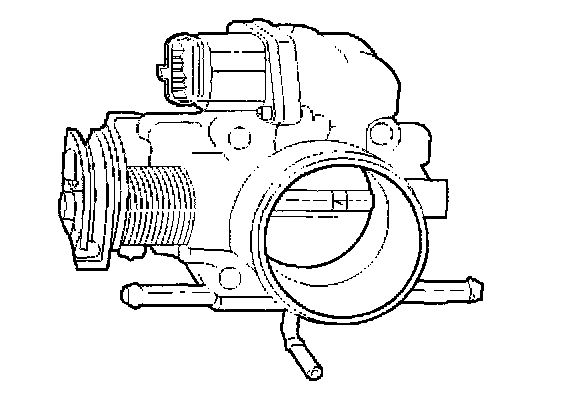

Throttle Body Unit
Throttle Body UnitThe
throttle body has a throttle plate to control the amount of air delivered to the engine. The
TP sensor and
IAC valve are also mounted on the throttle body. Vacuum ports located behind the throttle plate provide the vacuum signals needed by various components.
Engine coolant is directed through a coolant cavity in the
throttle body to warm the throttle valve and to prevent icing.
