EGR Control Test
This test is conducted check
EGR valve for proper operation.
Tech 2 must be used for this test.
Test Procedure: 1.
Connect Tech 2 to the vehicle
DLC.
2.
Run the Engine at idle.
3.

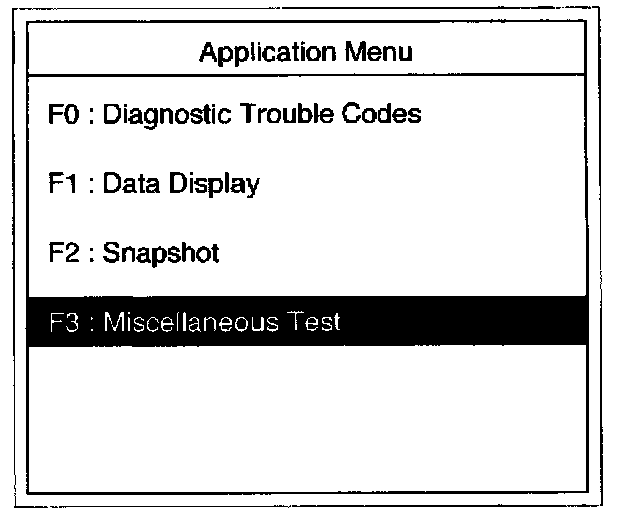

Select F3: Miscellaneous Test in the Application Menu.
4.

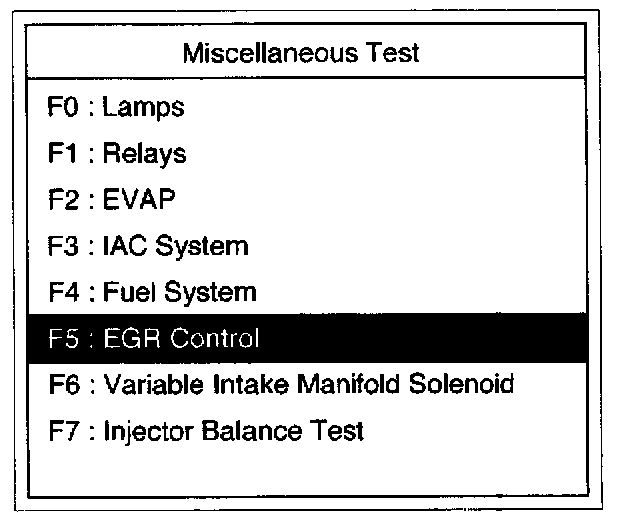

Select F5:
EGR Control Test in the Miscellaneous Test.
5.

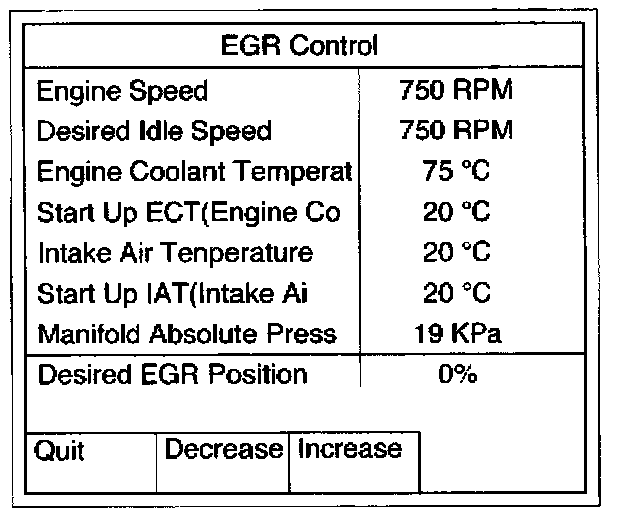

Control
EGR Valve and check data list.
6.
If data list changes, the
EGR Control is normal.
