Bench Test
Conduct a bench test of the generator.
PreparationRemove generator from the vehicle.
1.

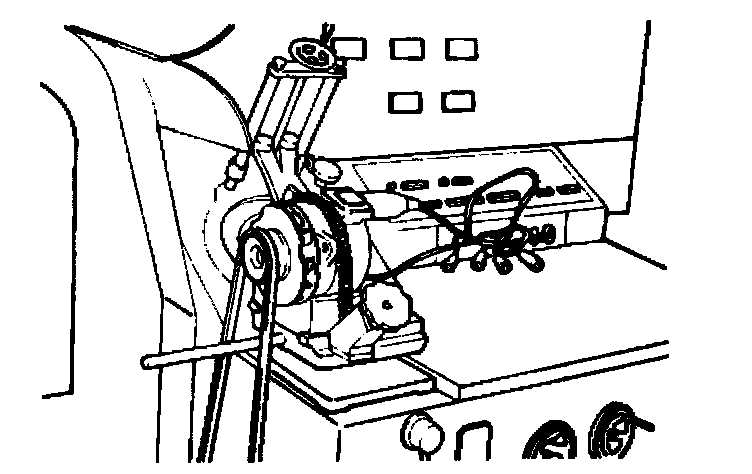

Secure generator to the bench test equipment and connect wires.
Terminal IG for energization
Terminal L for neutral (warning lamp)
Terminal B for output
2.
Conduct the generator characteristic test.

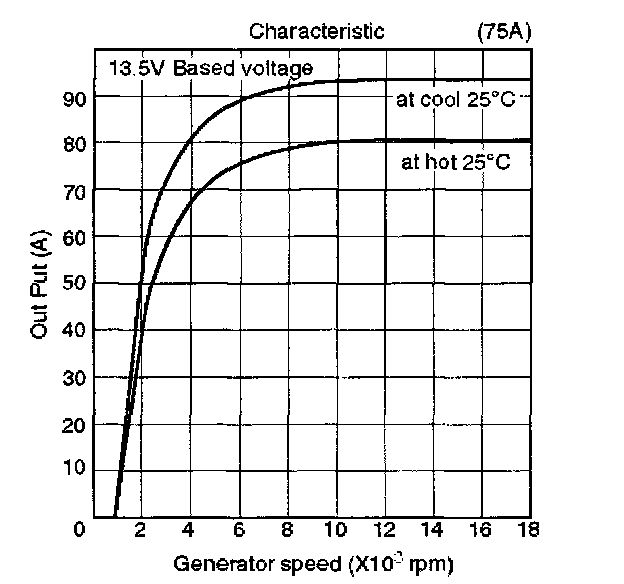

Characteristics of generator are shown in illustration.
Repair or replace the generator if its outputs are abnormal.
