Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
2000
>>
Hombre S Regular Cab 2WD L4-2.2L CPC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Mode Switch, A/T
>>
Transmission Range Switch
Transmission Range Switch

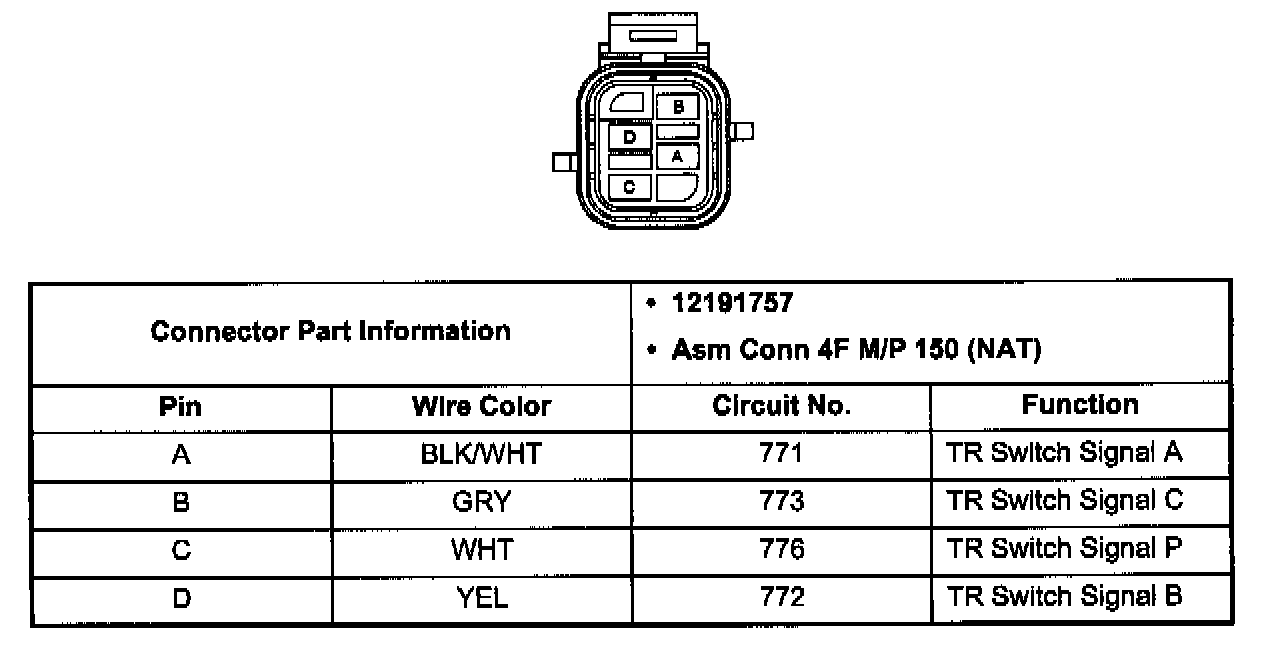

Transmission Range Switch Connector, Wiring Harness Side
