Water Pump Installation

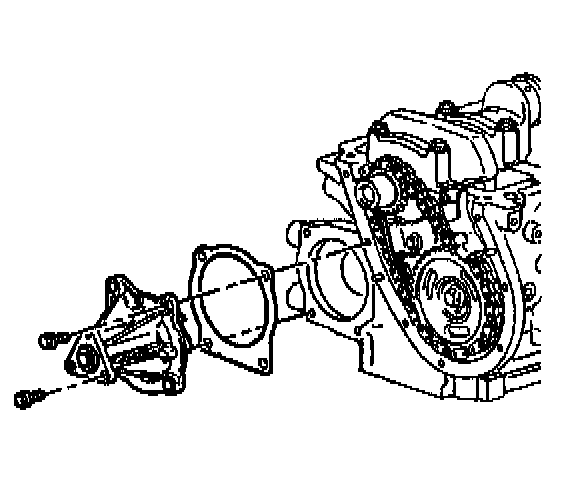

1. Install the water pump gasket to the engine.

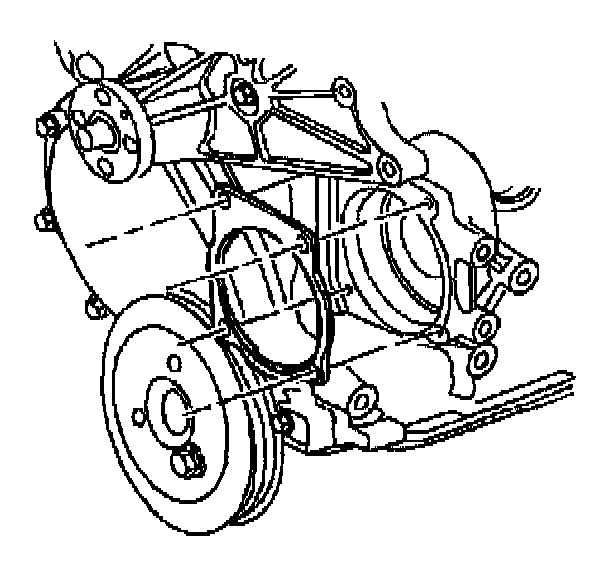

2. install the water pump to the engine.
3. Apply sealant to the bolt threads, use pipe thread sealant or equivalent.





4. Install the water pump attaching bolts.
Tighten the water pump attaching bolts to 25 Nm (18 ft. lbs.).
