Disassembly

Tools Required
- J 33013-B Hub and Drive Plate Remover/Installer
- J 33027-A Clutch Hub Holding Tool
- J 41790 Compressor Holding Fixture




1. Remove the compressor from the vehicle.

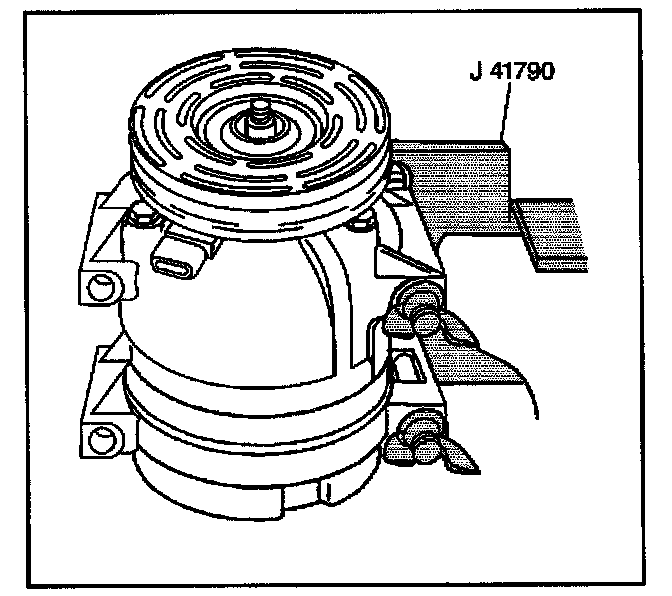

2. Clamp the compressor holding fixture, J 41790 in a vise and attach the compressor to the J 41790.

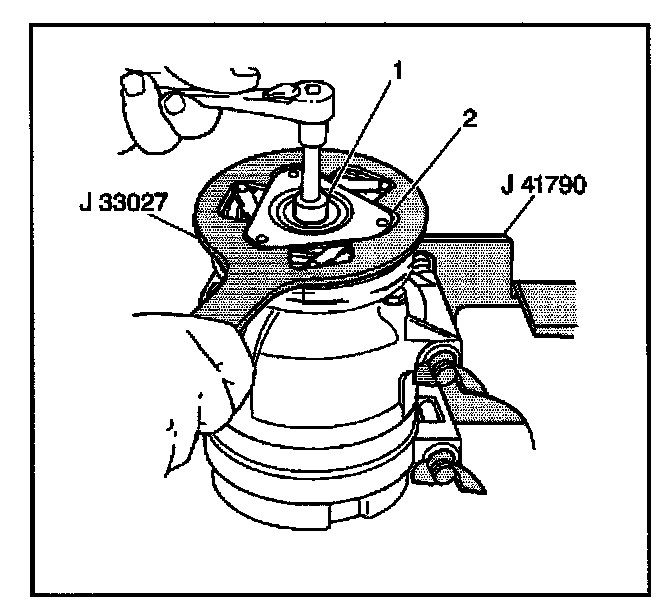

3. Hold the clutch hub and drive plate assembly (2) in place using the J 33027-A.
4. Remove the compressor shaft nut with a 13 mm socket (1).

Clutch Plate And Hub Assembly Removal:

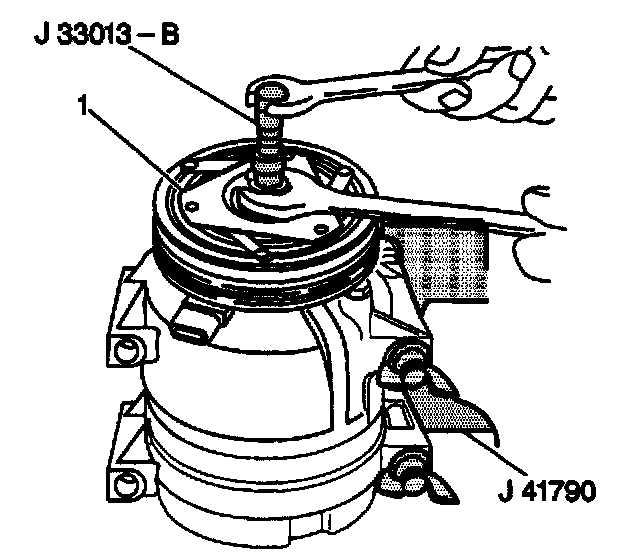

5. Thread the J 33013-B into the hub.
6. Remove the hub and drive plate assembly (1) by turning the center screw into the body of the J 33013-B and against the compressor shaft.
7. Remove the shaft key and retain for reassembly.
