Heater Core: Service and Repair
HEATER CORERemoval Procedure
1. Remove the heat/vent module. Refer to Heater/Vent Module Replacement.
2. Remove the heater core access cover screws.
3. Remove the heater core access cover.

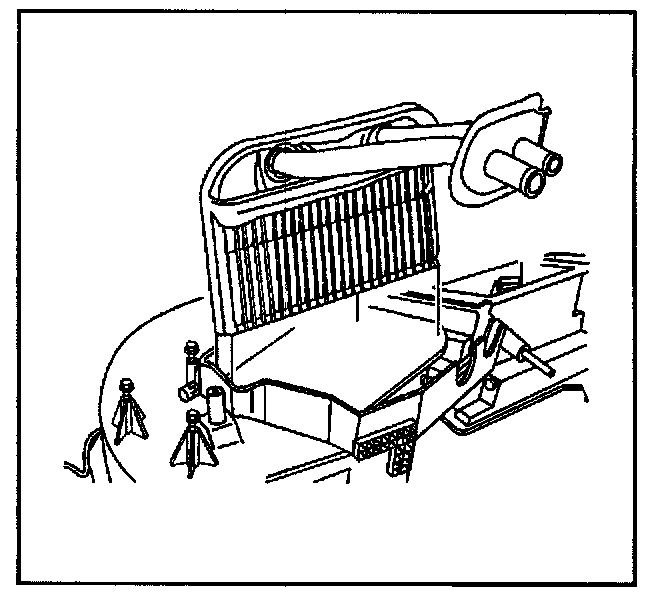

4. Remove the heater core from the heat/vent module.
Installation Procedure
1. Install the heater core in the heat/vent module.
NOTE: Refer to Fastener note in Cautions and notes.
2. Install the heater core access cover.
Tighten
Tighten the heater core access cover screws to 1.9 N.m (17 lb in)
3. Install the heat/vent module. Refer to Heater/Vent Module Replacement.
