Battery Cable: Service and Repair

Additional ground straps are used to connect the body and the frame to the engine and the transmission Always connect all ground straps in order to ensure a good ground path to the battery for all electrical components. Refer to the following illustrations for ground strap connection locations:

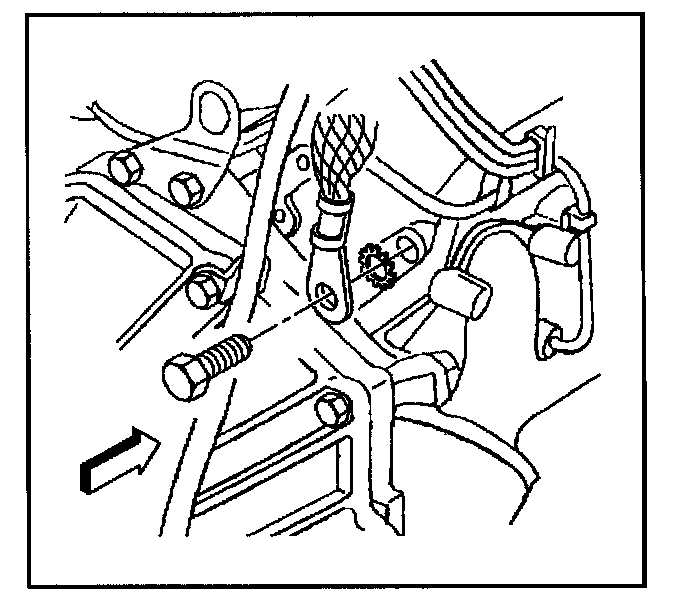

- Engine ground strap connection to the engine (2.2L).

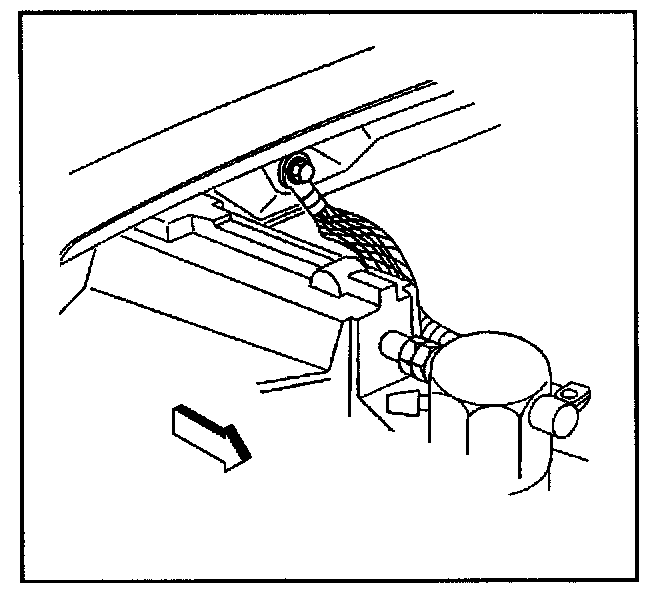

- Engine ground strap connection to the cowl (2.2L).

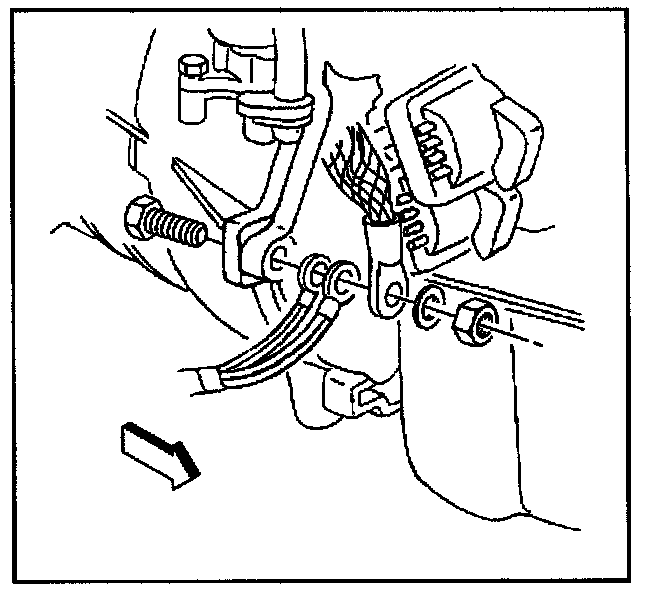

- Engine ground strap connection to the engine (4.3L).

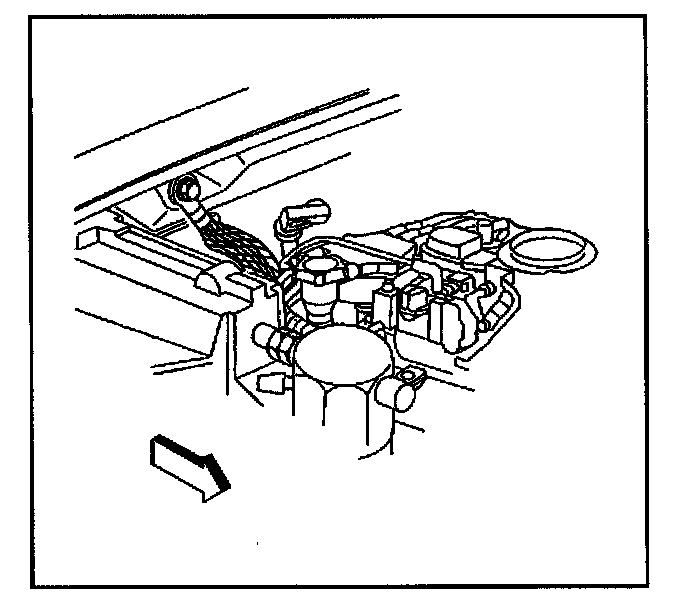

- Engine ground strap connection to the cowl (4.3L).
