Disassemble

Disassembly Procedure
1. Remove the upper and lower shrouds.





Put the shift lever clevis into the neutral position.

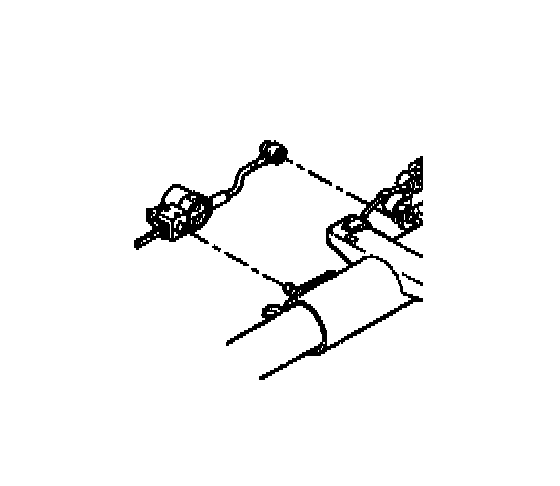

2. Use a small screwdriver to pry the electrical BTSI actuator away from the steering column jacket assembly and the cable shift cam assembly.
