Flywheel: Service and Repair

Removal Procedure
1. Remove the transmission.

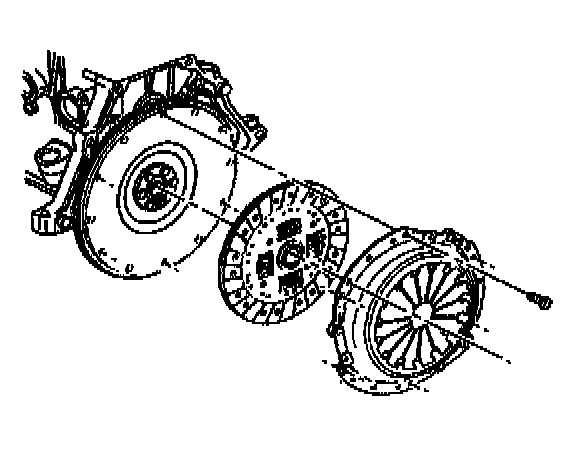

2. Remove the clutch assembly.
3. Remove the flywheel.
4. Clean and inspect the flywheel.

Inspection Procedure





1. Clean the flywheel in solvent.

Caution: Wear safety glasses in order to avoid eye damage.

2. Dry the flywheel with compressed air.





3. Inspect the manual transmission flywheel for the following:
^ Damaged ring gear teeth.
^ Loose or improperly positioned ring gear.

The ring gear has an interference fit onto the flywheel and should be positioned completely against the flange of the flywheel.
4. A scored, grooved or damaged friction surface





5. Inspect the automatic transmission flywheel for the following:
^ Damaged ring gear teeth
^ Stress cracks around the flywheel-to-crankshaft bolt hole locations.

Important: Do not attempt to repair the welded areas that retain the ring gear to the flywheel plate. Install a new flywheel.

^ Welded areas that retain the ring gear onto the flywheel for cracking.


Installation Procedure

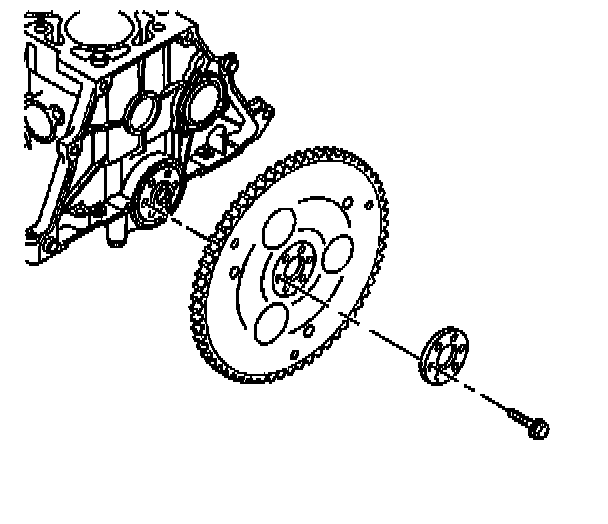

1. Install the flywheel.
2. Install the flywheel spacer if a flywheel spacer is used.

Important: You must thoroughly remove the old thread adhesive from the flywheel bolts and bolt holes. Use a round nylon bristle brush in order to remove the old adhesive.

3. Apply Loctite (R) 271 or equivalent to all flywheel bolts. Carefully follow the instructions that are included with the thread locking compound in order to ensure that the bolts are retained properly.
4. Install the flywheel bolts.
Tighten the flywheel bolts to 75 Nm (55 ft. lbs.).

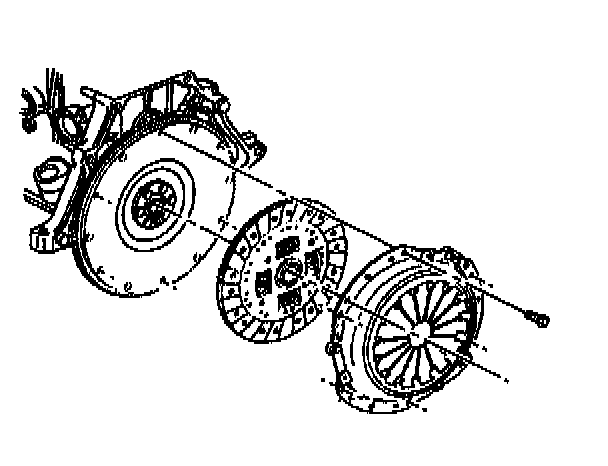

5. Install the clutch assembly.
6. Install the transmission.
