Window Seal: Service and Repair

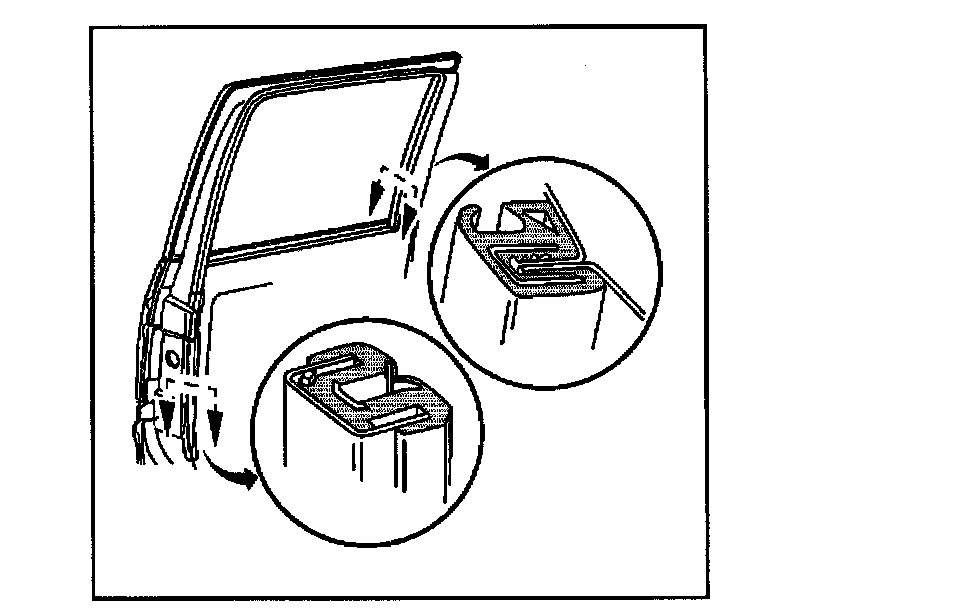

Removal Procedure
1. Lower the window.
2. Pull the weatherstrip away from the window opening.
3. Pull the weatherstrip from the window run channels.
4. Remove the door window weatherstrip from the door.

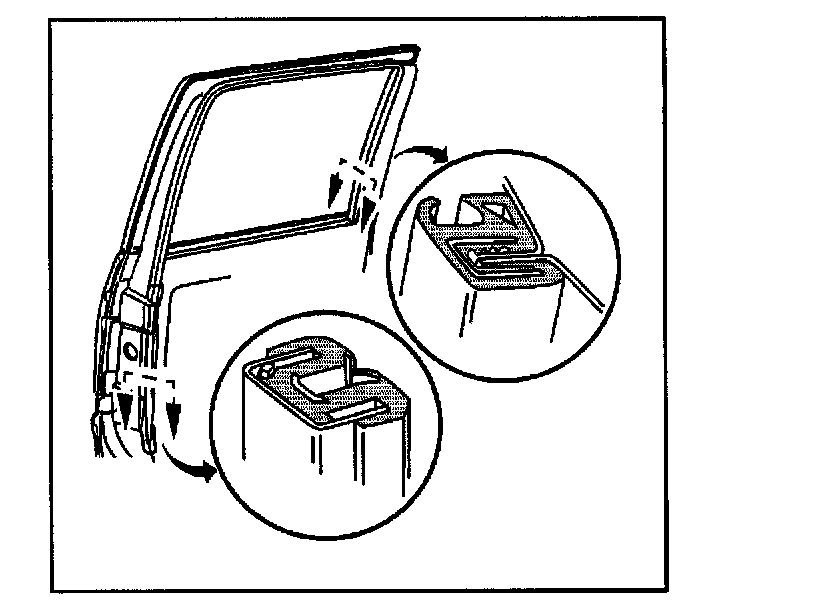

Installation Procedure
1. Install the door window weatherstrip to the door.
2. Install the ends of the weatherstrip to the window run channels.
3. Seat the weatherstrip around the perimeter of the window opening.
