Window Handle: Service and Repair

Removal Procedure

Tools Required
J9886-01 Door Handle Clip Remover

1. Close the window.

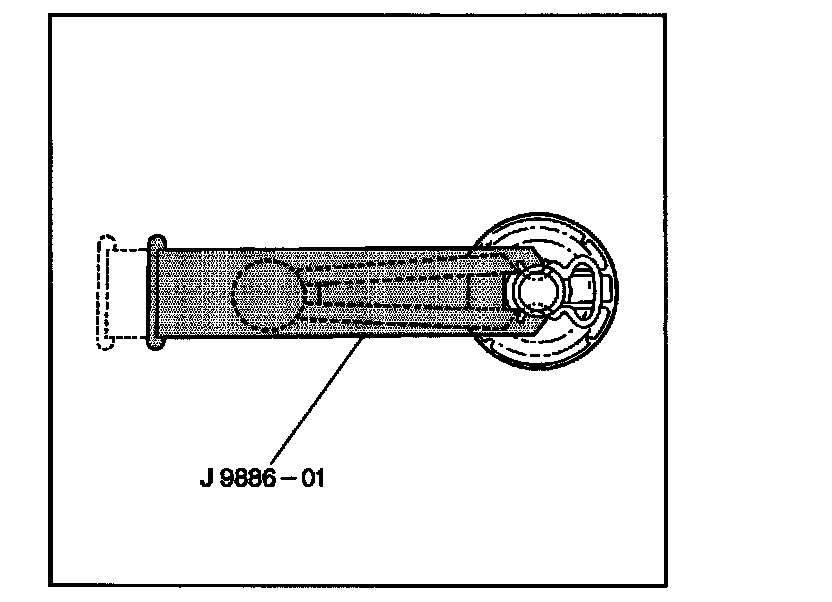

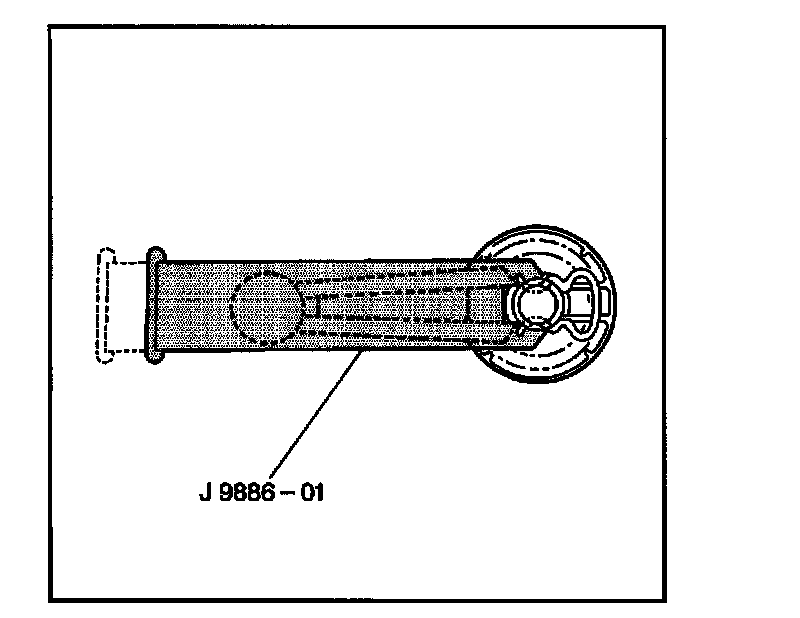

2. Insert the J9886-01 between the handle and the bearing plate.
3. Align the J9886-01 with the handle.
4. Push the J9886-01 in order to disengage the clip.

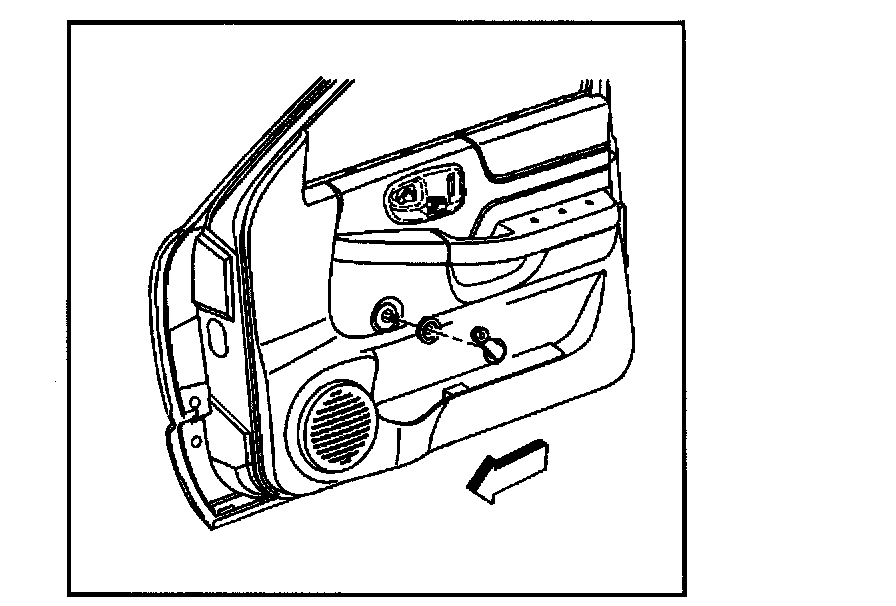

5. Pull the handle from the door.




6. Remove the window regulator handle from the door.
7. Remove the bearing plate from the door.

Installation Procedure

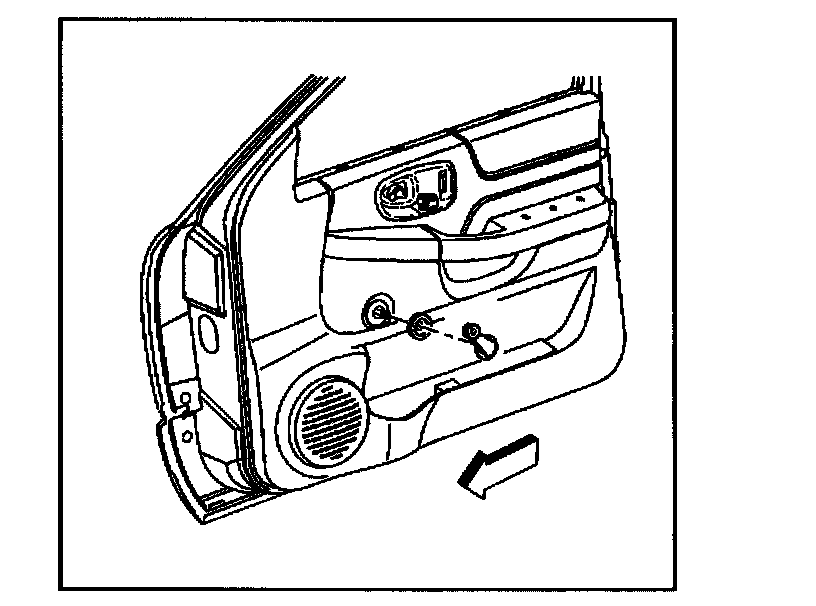

1. Install the bearing plate to the door.




2. Install the window regulator handle to the door.
3. Install the retaining clip to the handle.
4. Insert the handle onto the window regulator shaft so that the handle points toward the front of the door.
5. Push on the handle until the clip engages on the shaft.
