Refrigerant Pressure Sensor / Switch: Locations

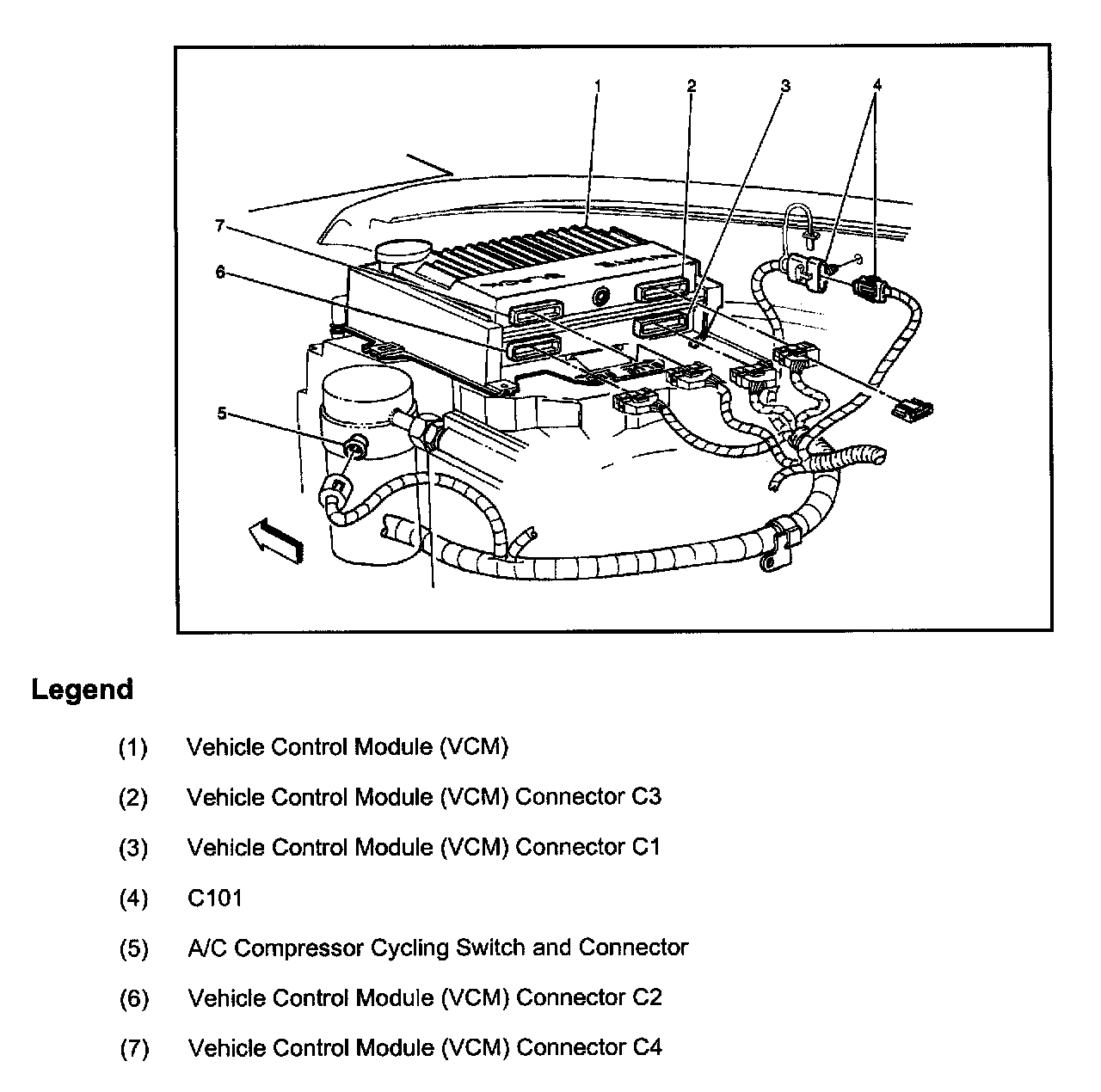

Body And Engine Harness To Vehicle Control Module (VCM) And C101:

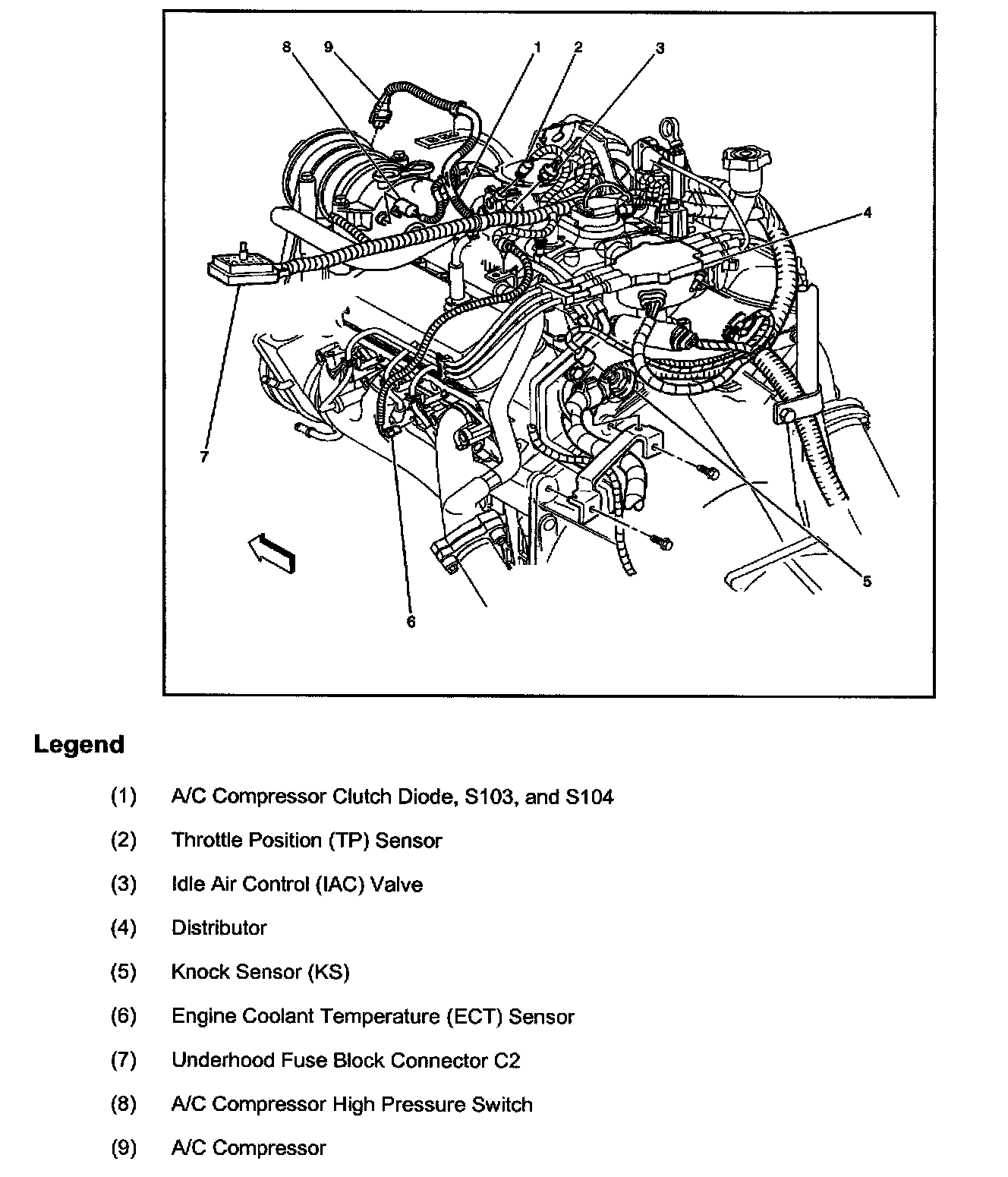

Engine, LR (4.3L):
