Cigarette Lighter: Service and Repair

Removal
1. Disconnect the battery ground cable.

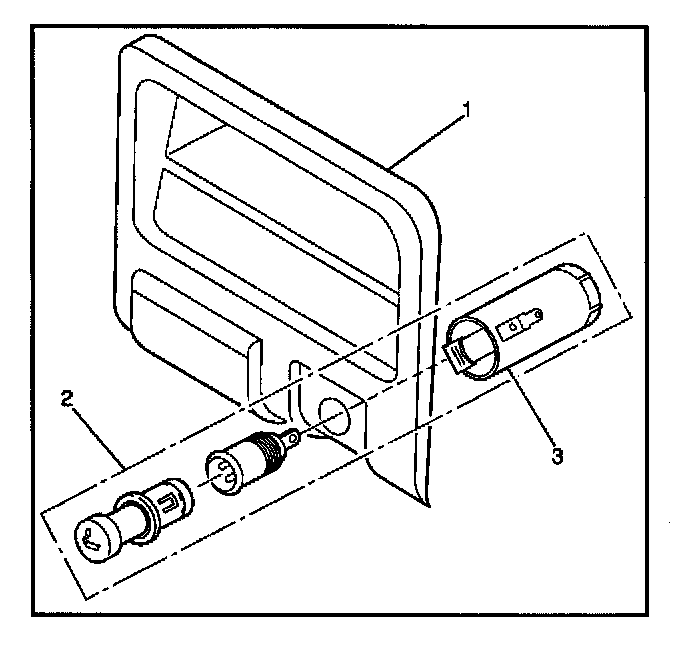

2. Remove the lower cluster assembly (1).





3. Remove the cigarette lighter assembly (2).
- Disconnect the connectors.
- Remove the socket (3).

Installation
To install, follow the removal steps in the reverse order, noting the following point:
1. When installing the bezel, align the projected portion of the socket with the notch of the bezel.
