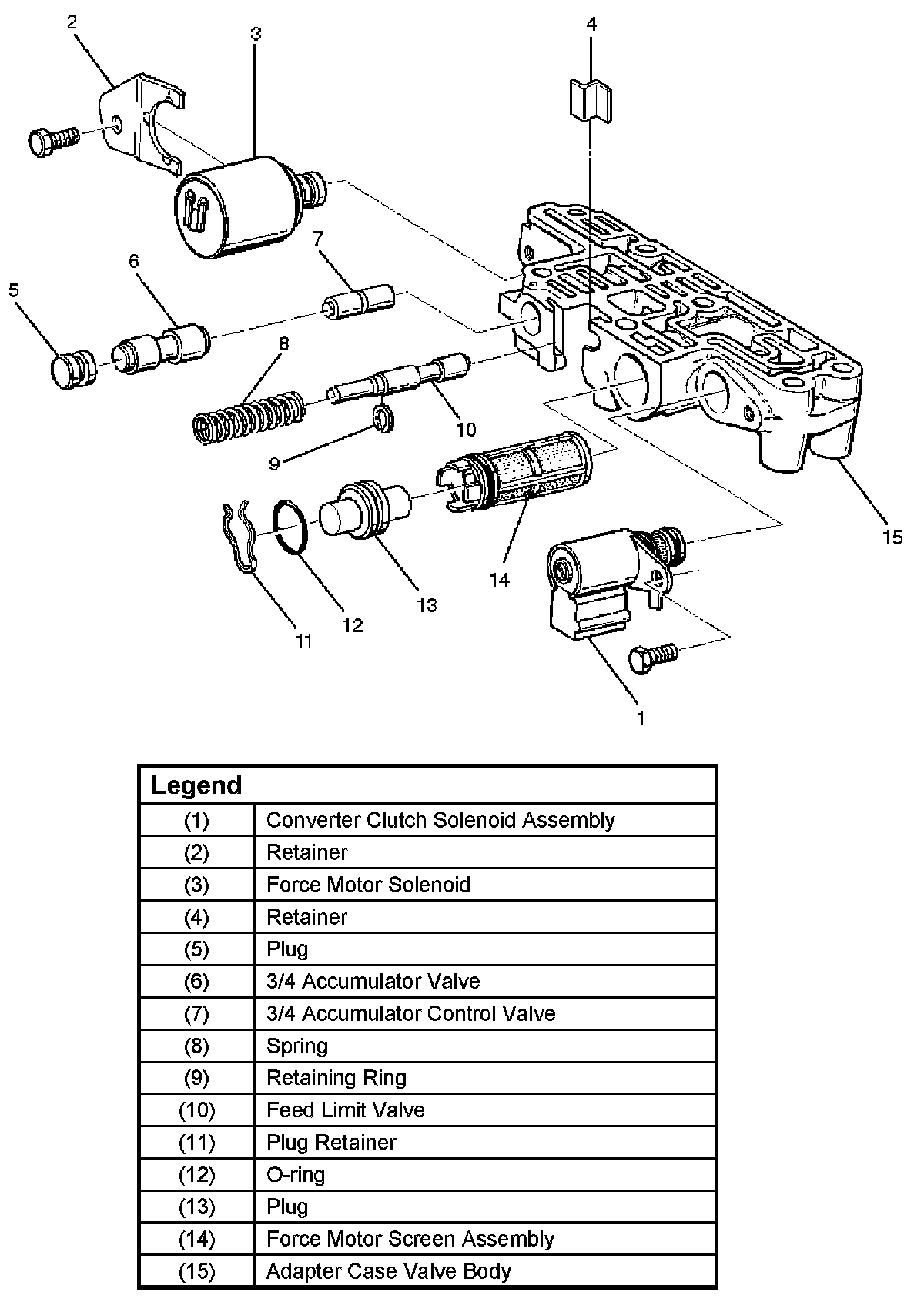

Adapter Case Valve Body

DISASSEMBLY
1. Remove 11 mm bolt from valve body.
- Remove converter control solenoid assembly (1).
2. Remove 11 mm bolt and retainer (2) from valve body.
- Remove force motor solenoid (3).
3. Remove retainer (4), plug (5), 3/4 accumulator valve (6), and 3/4 accumulator control valve (7).
4. Remove spring (8), retaining ring (9), and feed limit valve (10).
5. Remove plug retainer (11), O-ring (12), plug (13), and force motor screen assembly (14).
- Use 5 mm bolt to pull plug.

INSPECTION AND REPAIR
Inspect for the following, and replace any damaged or worn parts:
1. Damage or wear to each valve.
2. Damage in oil passages.
3. Cracks or damage to valve body.
4. Valve operations.
5. Spring fatigue.

REASSEMBLY
1. Install force motor screen assembly (14), plug (13), O-ring (12), and plug retainer (11).
2. Install feed limit valve (10), retaining ring (9), and spring (8).
3. Install 3/4 accumulator control valve (7), 3/4 accumulator valve (6), plug (5), and retainer (4).
4. Install force motor solenoid (3).
- Place solenoid terminals pointing towards mating face.
- Install retainer (2) and bolt.
Torque: 10 Nm (87 inch lbs.)
5. Install converter clutch solenoid assembly with two O-rings (1) to valve body.
- Install bolt.
Torque: 10 Nm (87 inch lbs.)
