Front Washer Motor

REMOVAL
1. Disconnect the battery ground cable.

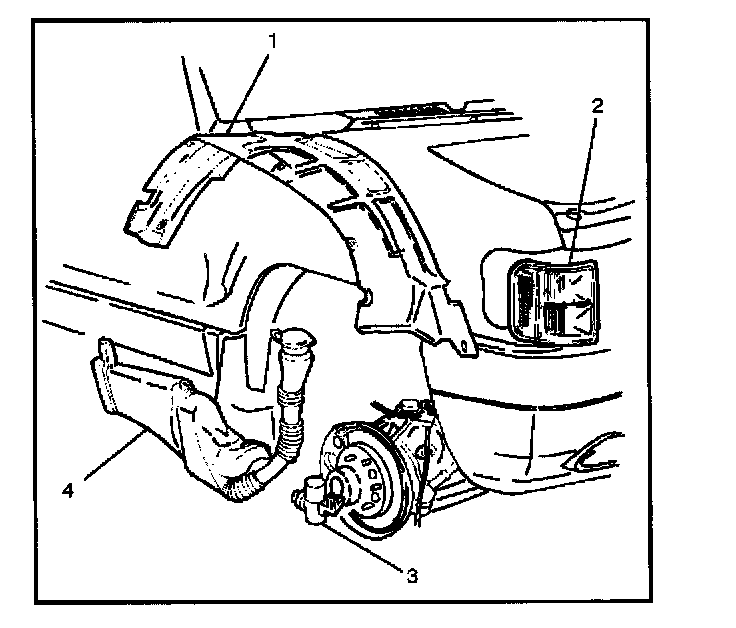

2. Remove the fender inner liner (right side) (1).
3. Remove the screws and then remove the front combination light (2).
4. Remove 2 screws, the filler neck and the hose.
5. Disconnect the windshield washer motor connector and remove the washer tank (4).
6. Pull the windshield washer motor (3) from the washer tank (4).

INSTALLATION
To install, follow the removal steps in the reverse order.
