Windshield Washer Spray Nozzle: Service and Repair

REMOVAL

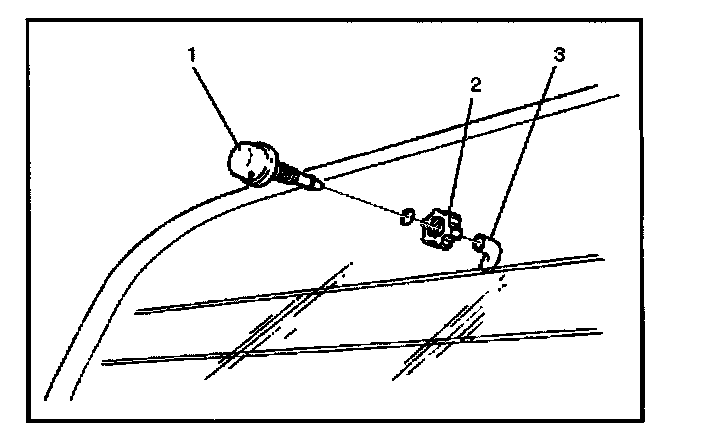

1. Disconnect the hose (3).
2. Remove the lock nut (2), and then remove the washer nozzle (1).

INSTALLATION
To install, follow the removal steps in the reverse order.
