Front Bumper: Service and Repair

Front Bumper

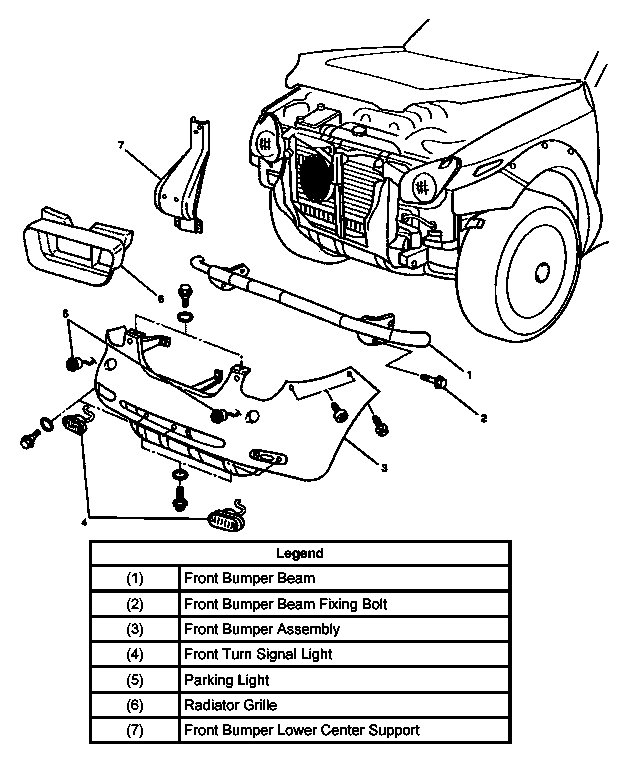

Parts Location:

Removal

1. Disconnect the battery ground cable.
2. Remove the radiator grille.

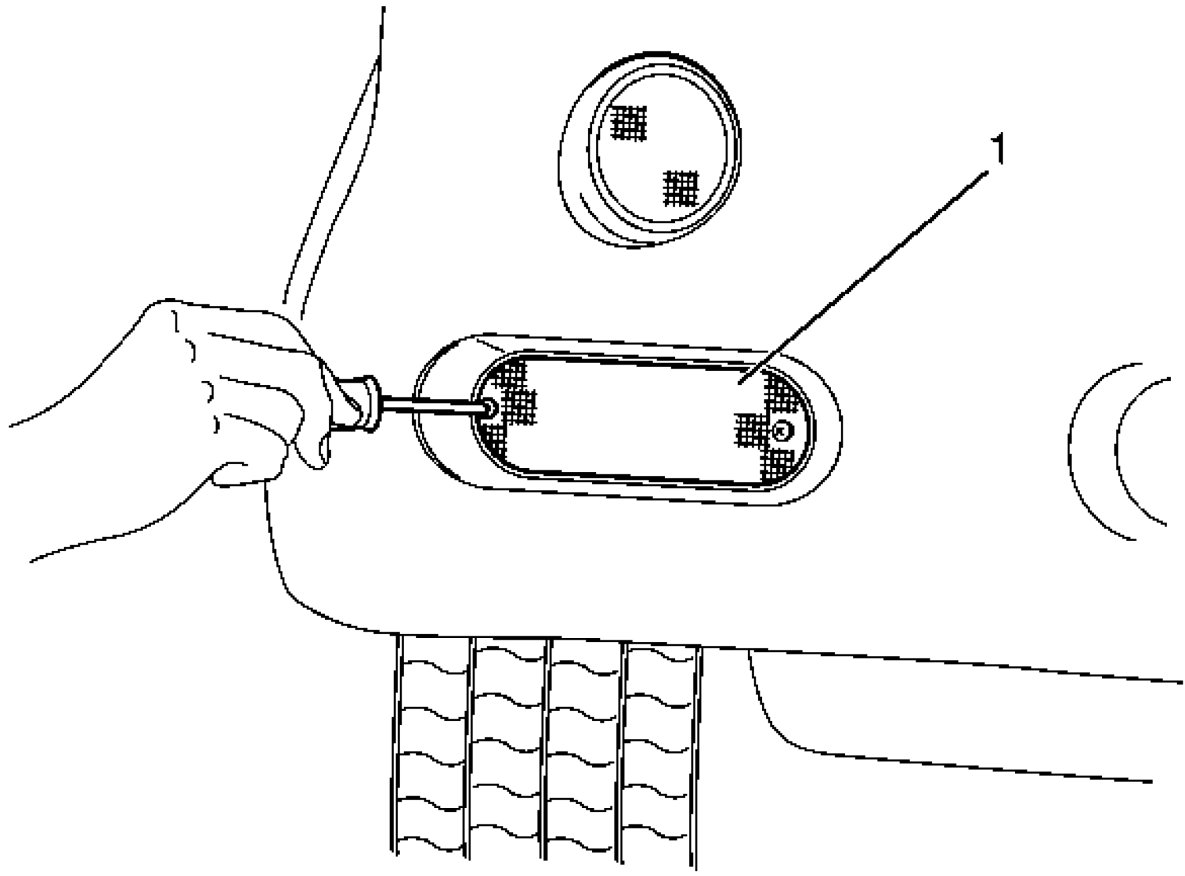

3. Remove the front turn signal light (1).
- Remove the two screws and disconnect the front turn signal light connector (RH & LH).







4. Remove the front bumper assembly.
- Remove the eight bolts and six screws.

5. Remove the parking light.
- Disconnect the parking light connector.
- Turn the parking light assembly clockwise from the back side of front bumper and push it out.

6. Remove the bumper lower center support.
- Remove the four bolts.

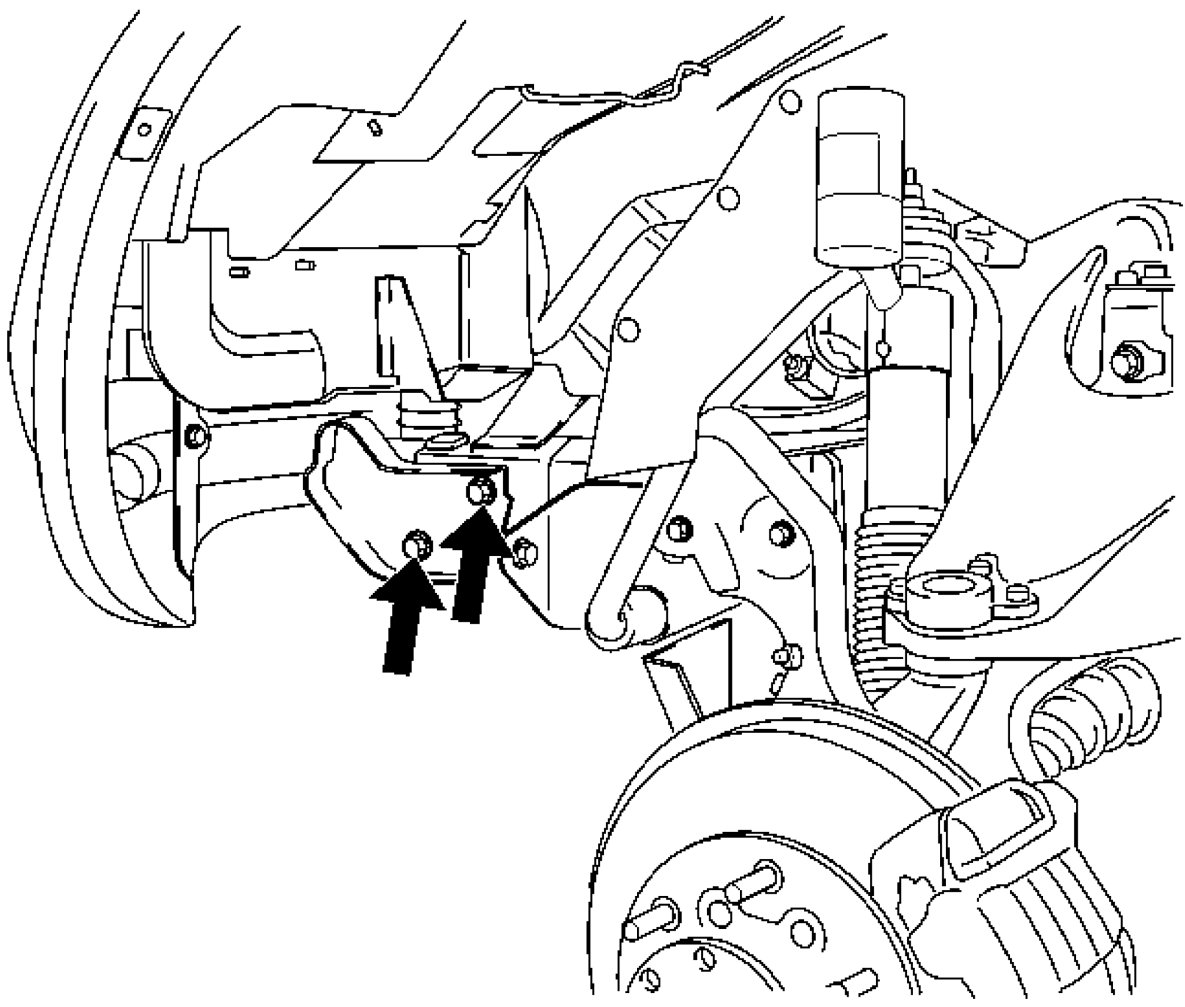

7. Remove the front bumper beam.
- Remove the two bolts from each side.







Installation

To install, follow the removal steps in the reverse order noting the following points:
2. Tighten the bumper beam bolts to the specified torque.

Torque: 118 N.m (87 lb ft)
