Front Fender: Service and Repair

Front Fender Panel

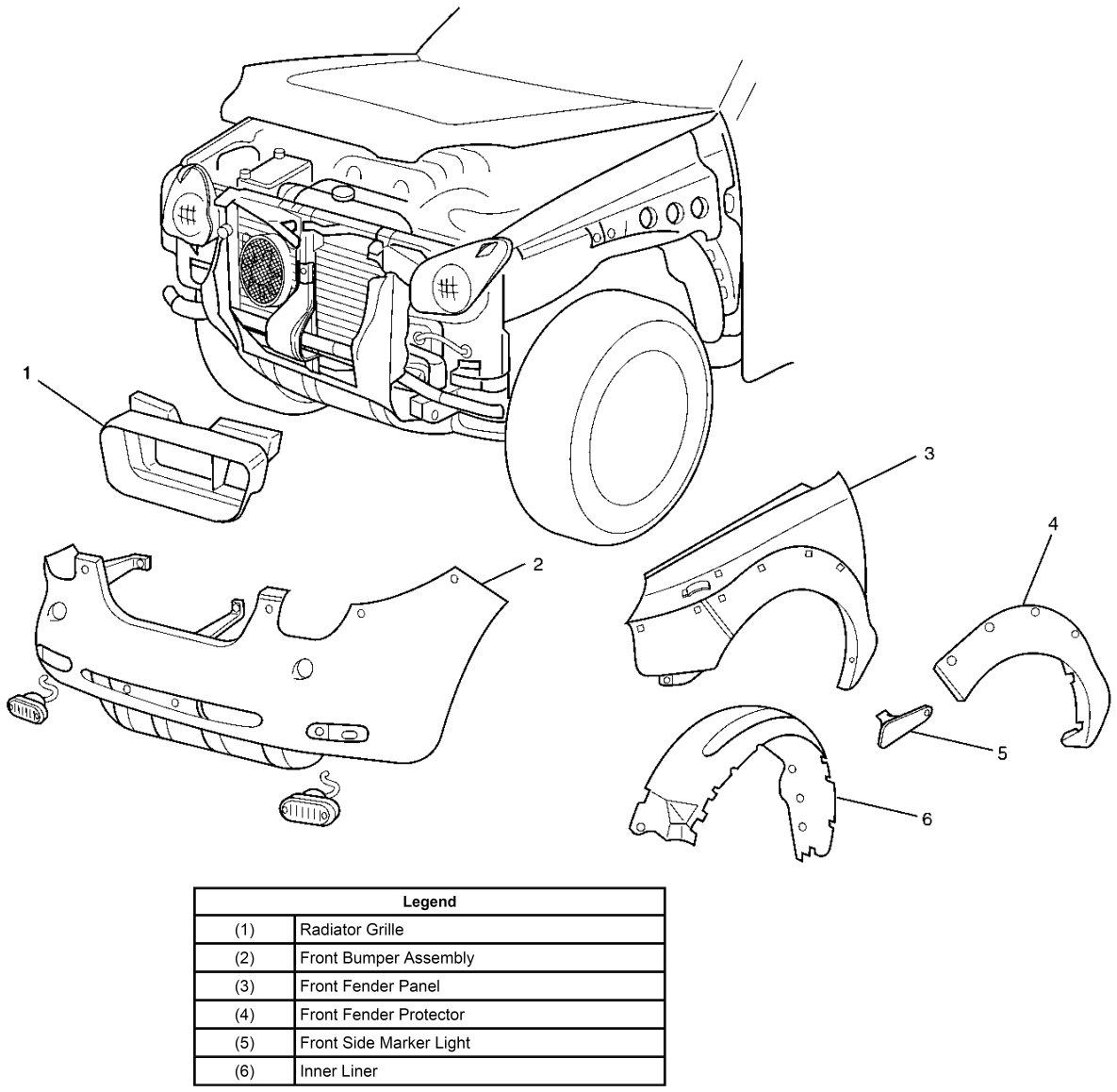

Parts Location:

Removal

1. Open and support the engine hood.
2. Disconnect the battery ground cable.
3. Remove the radiator grille.
4. Remove the front bumper assembly.
5. Remove the inner liner.
6. Remove front fender protector.
7. Remove the front side marker light (2).
- Remove the screw and disconnect the connector (3).

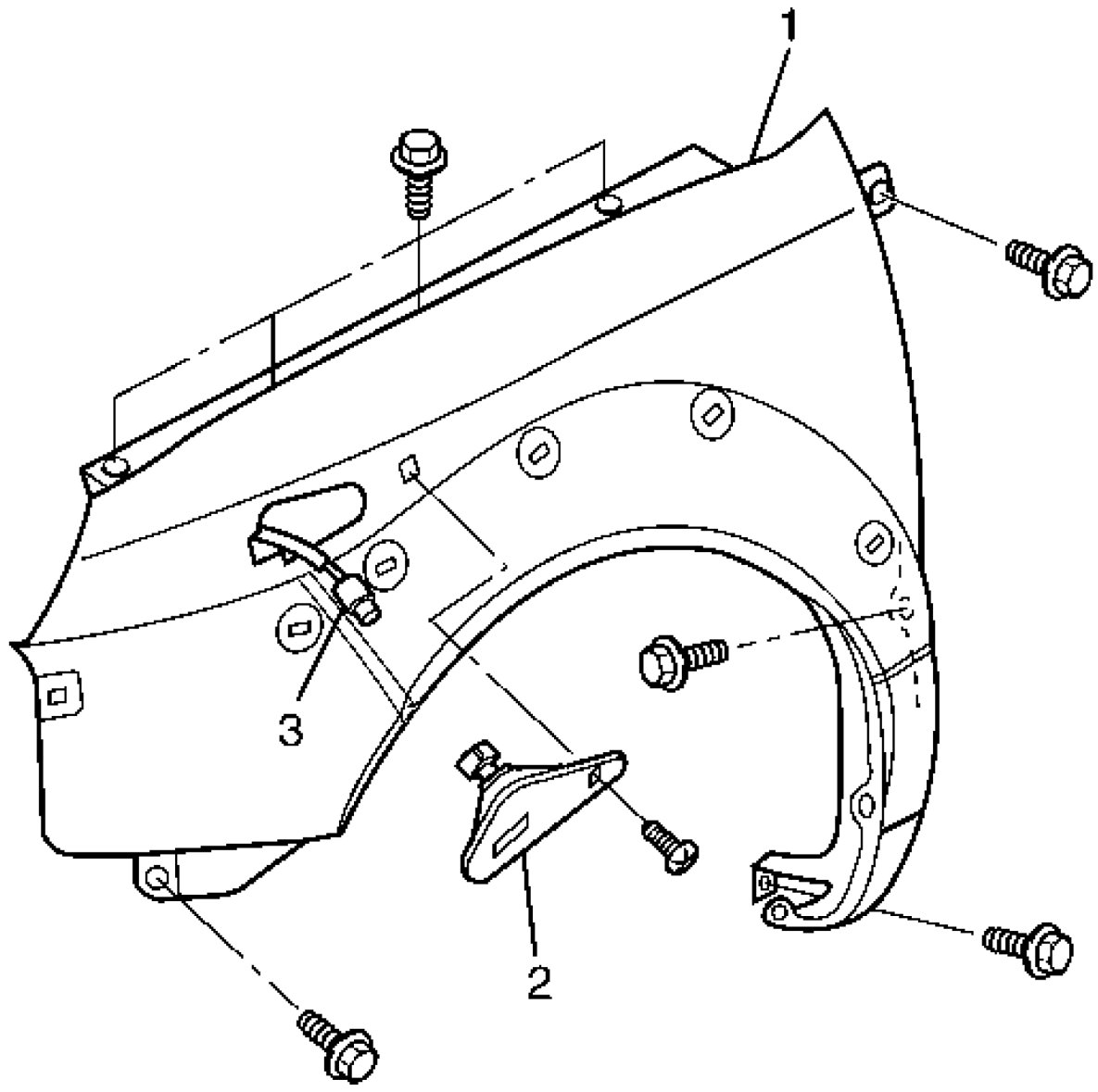

8. Remove the front fender panel (1).
- Remove the eight fixing bolts.







Installation

To install, follow the removal steps in the reverse order noting the following points.

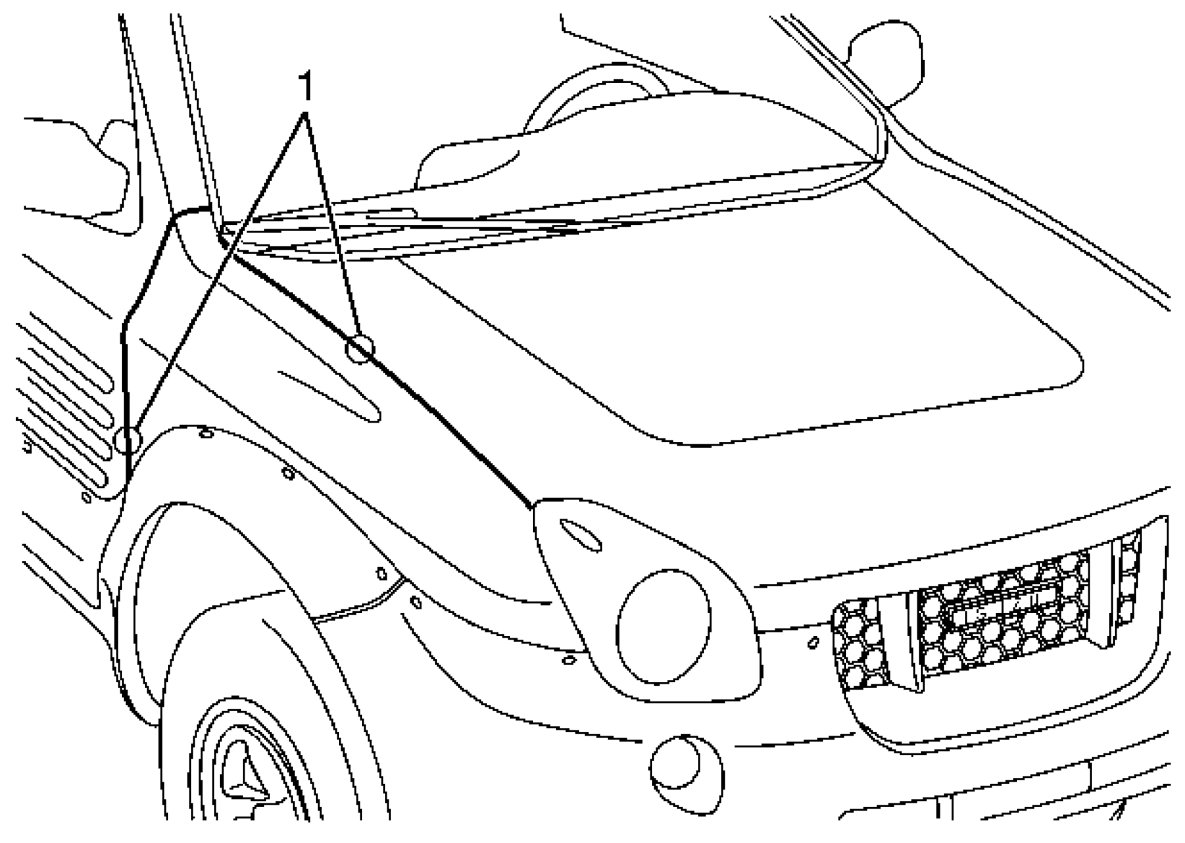

1. Check the engine hood and fender.

Clearance: 4.2 mm (0.165 in)
Height: Flush







Use a new double-sided adhesive tape whenever installing the front fender protector. Using a white gasoline, clean the places in advance where a double-sided adhesive tape is affixed.

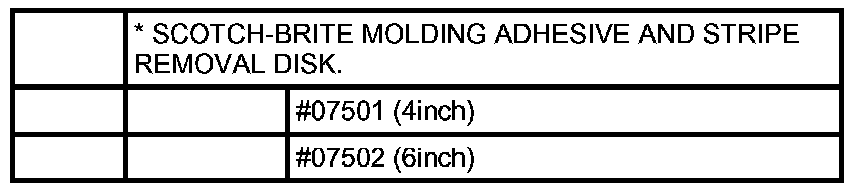

To tear the remaining old double-sided adhesive tape off, use 3M (*) or equivalent.
