Grille: Service and Repair

Radiator Grille

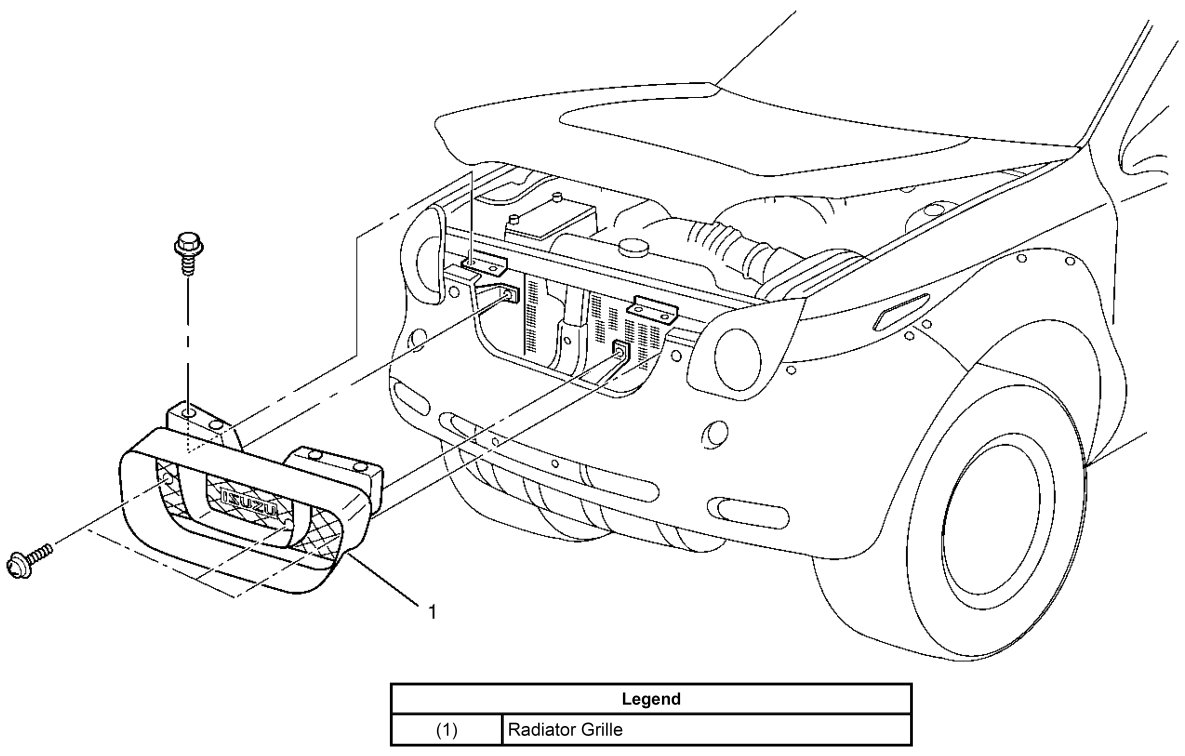

Parts Location:

Removal

1. Open and support the engine hood.
2. Disconnect the battery ground cable.
3. Remove the radiator grille.
- Remove the four fixing bolts and three fixing screws.

Installation
To install, follow the removal steps in reverse order.
