Front Seat Assembly

Front Seat Assembly

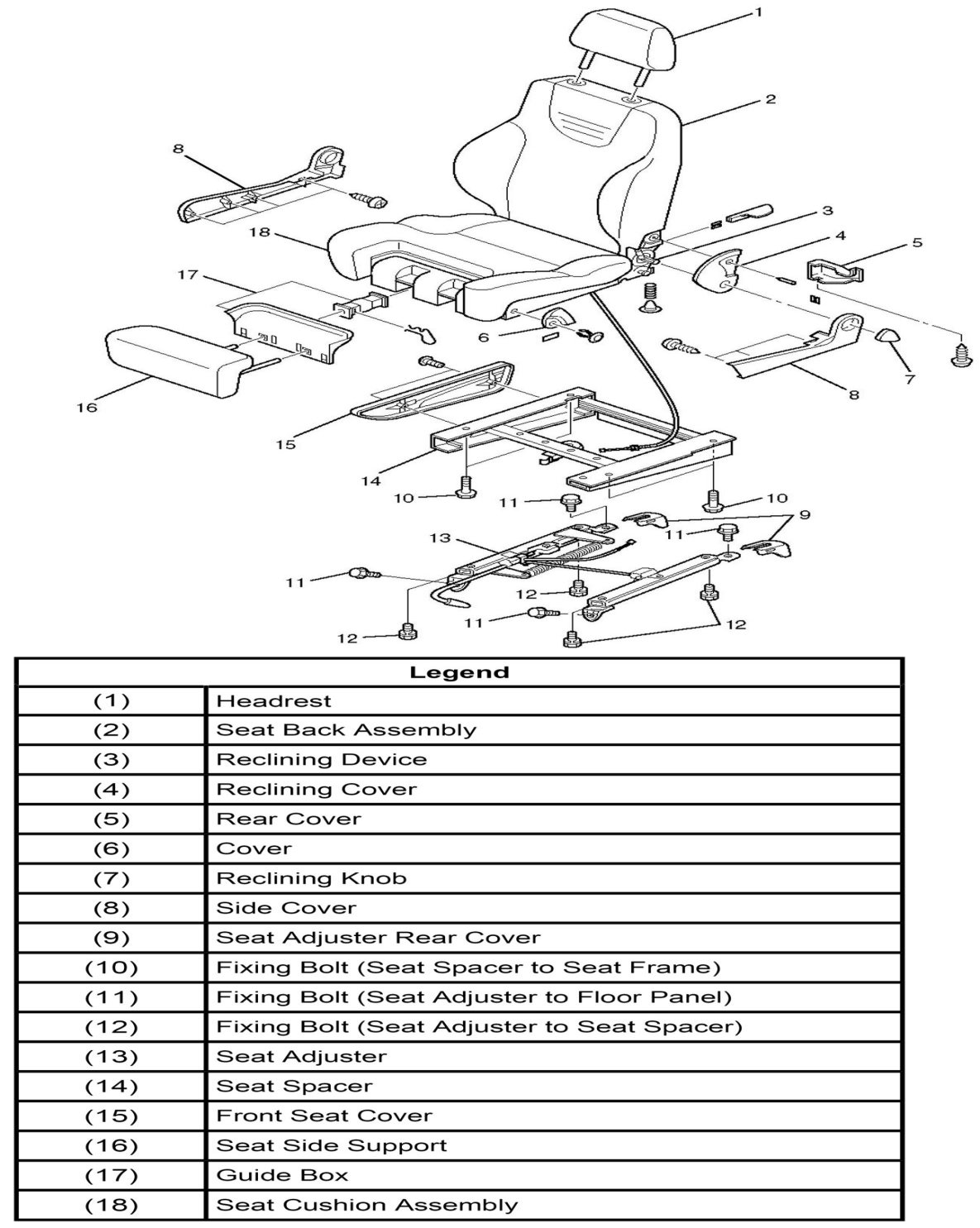

Disassembled View

This illustration is based on the passenger's side seat.

Disassembled View:

Removal

1. Disconnect the battery ground cable.
2. Remove the seat adjuster rear cover.
3. Remove the front seat assembly.
- Remove the four seat adjuster fixing bolts.

Installation

To install, follow the removal steps in the reverse order, noting the following points.
- Tighten the front seat assembly fixing bolts to the specified torque.
Torque: 40 N.m (30 lb ft)
