Scan Tool Testing and Procedures

Tech 2 Scan Tool





From 98 MY, Isuzu dealer service departments are recommended to use Tech 2. Please refer to Tech 2 scan tool user guide.

Getting Started

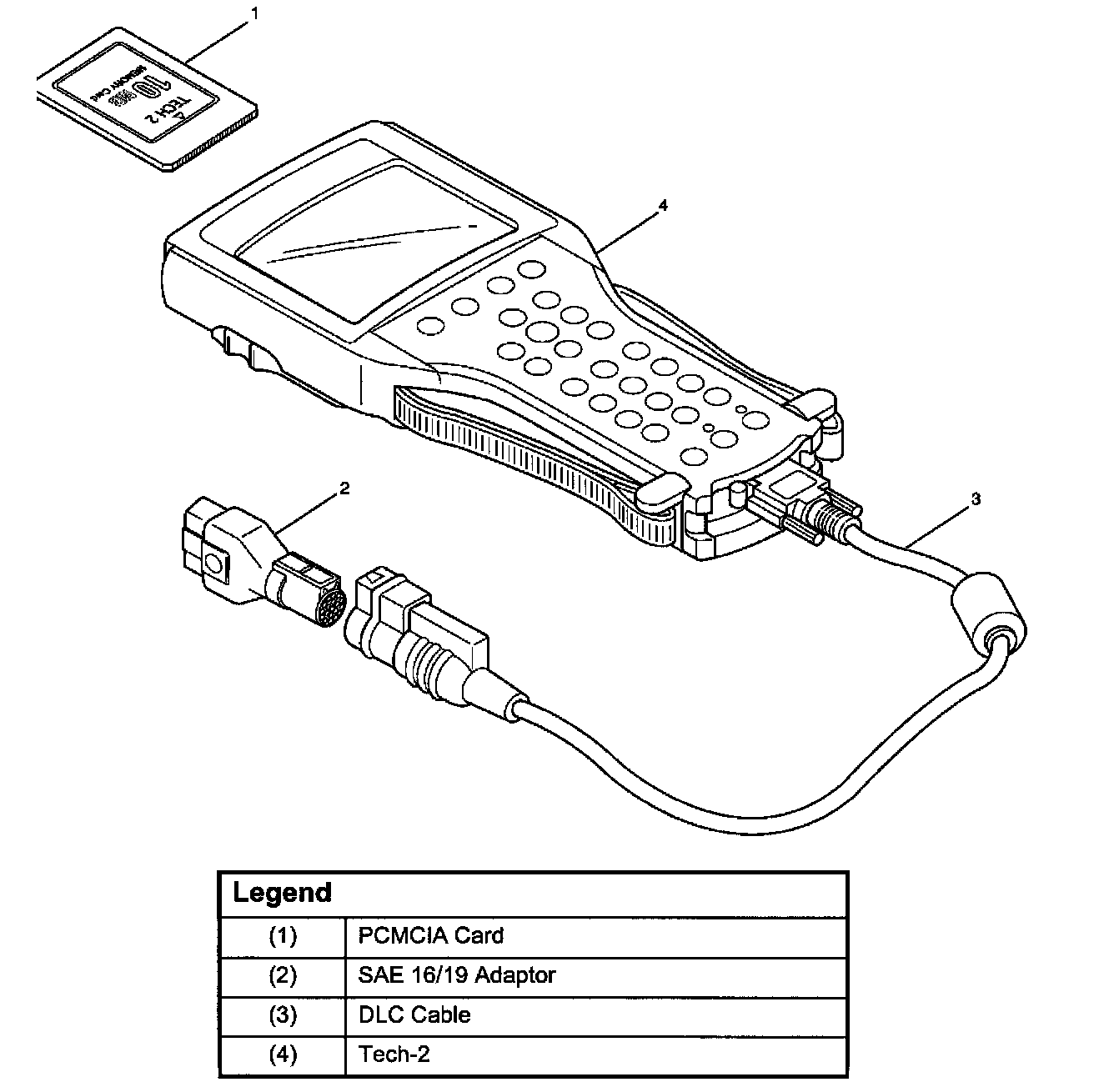

Before operating the Isuzu PCMCIA card with the Tech 2, the following steps must be performed:
^ The Isuzu 98 System PCMCIA card (1) inserts into the Tech 2 (4).
^ Connect the SAE 16/19 adapter (2) to the DLC cable (3).
^ Connect the DLC cable to the Tech 2 (4).
^ Make sure the vehicle ignition is off.
^ Connect the Tech 2 SAE 16/19 adapter to the vehicle DLC connector.
^ The vehicle ignition turns on.





^ Power up the Tech 2.
^ Verify the Tech 2 power up display.








Operating Procedure

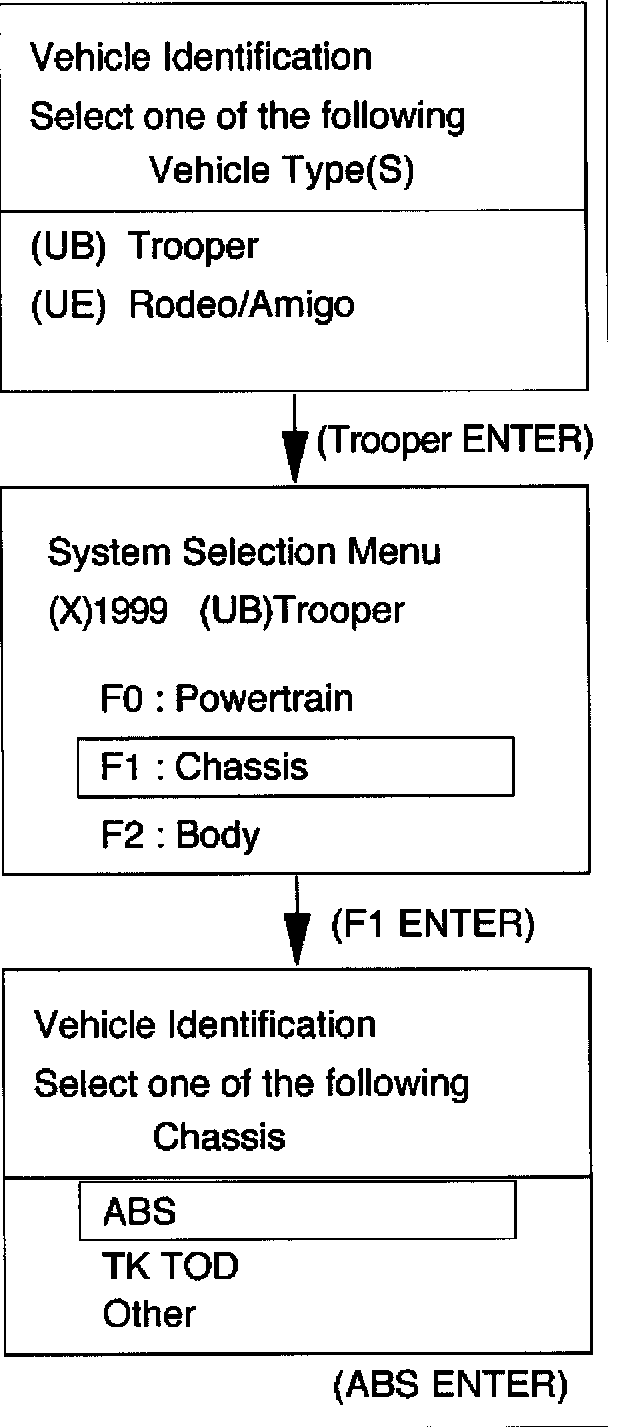

The power up screen is displayed when you power up the tester with the Isuzu systems PCMCIA card. Follow the operating procedure.

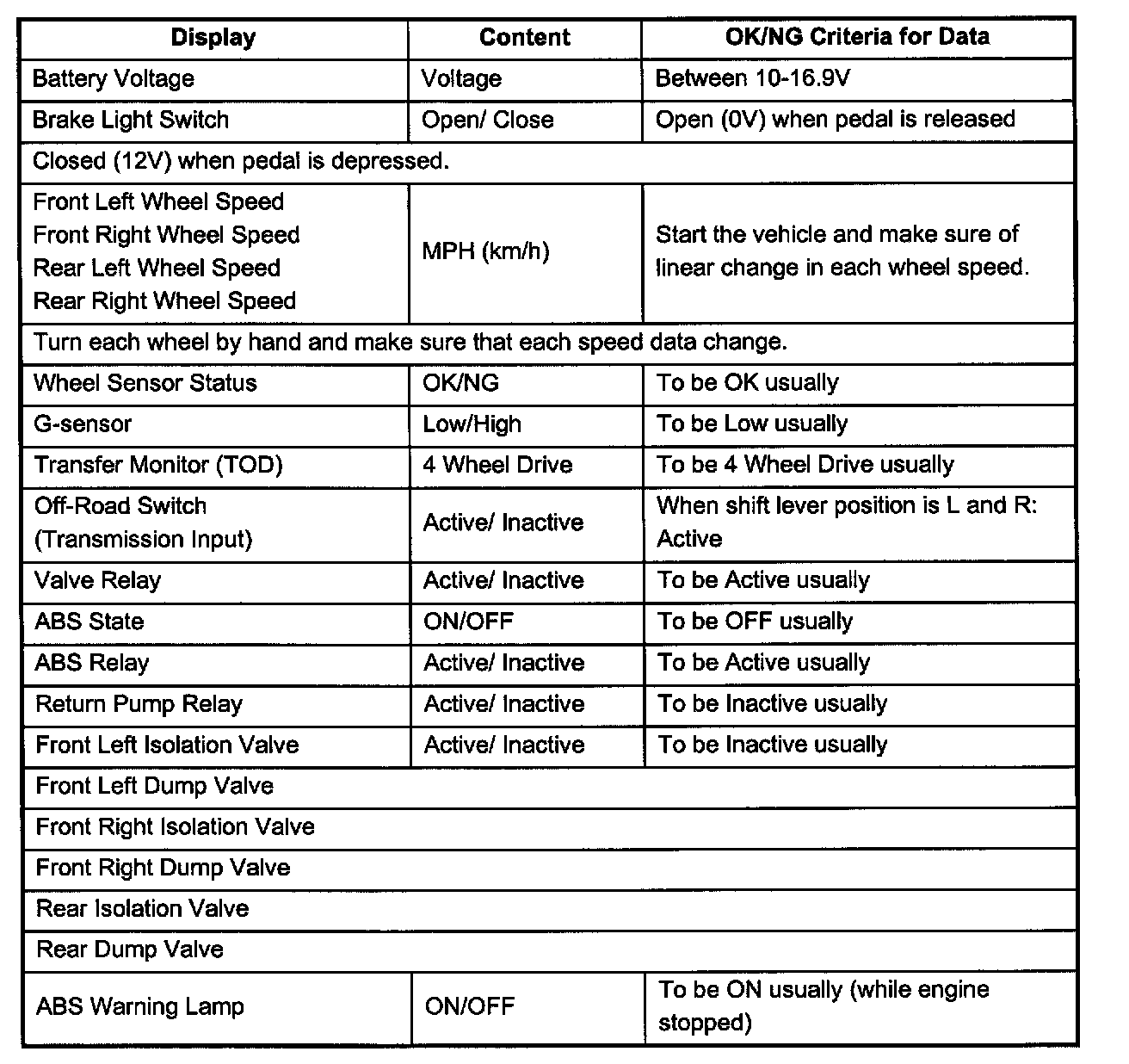

Data List
