Traction Control Indicator Lamp: Service and Repair

TOD INDICATOR ASSEMBLY

REMOVAL

1. Disconnect the battery ground cable.
2. Remove the meter assembly. Refer to the Meter Assembly.
3. Remove the meter cluster glass. Refer to the Speedometer.

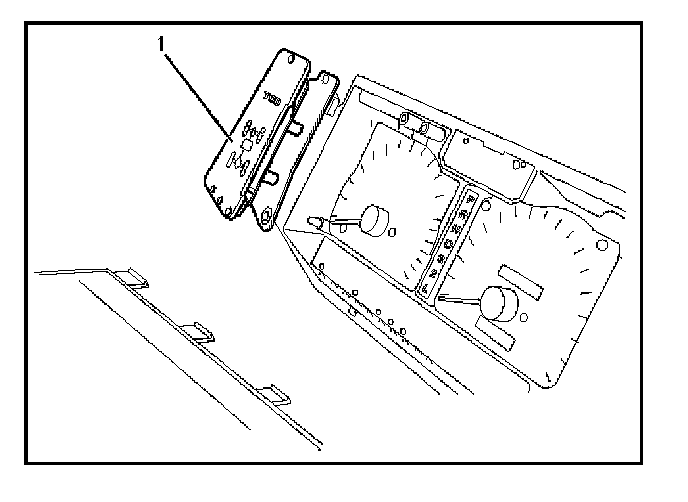

4. Remove the TOD indicator assembly (1).




- Remove the 2 fixing screws securing the indicator from the back side of the meter assembly.




- Lift the TOD indicator assembly carefully.

INSTALLATION
To install, follow the removal steps in the reverse order.
