Home >> Isuzu >> 2000 >> VehiCROSS 4WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Console

Console

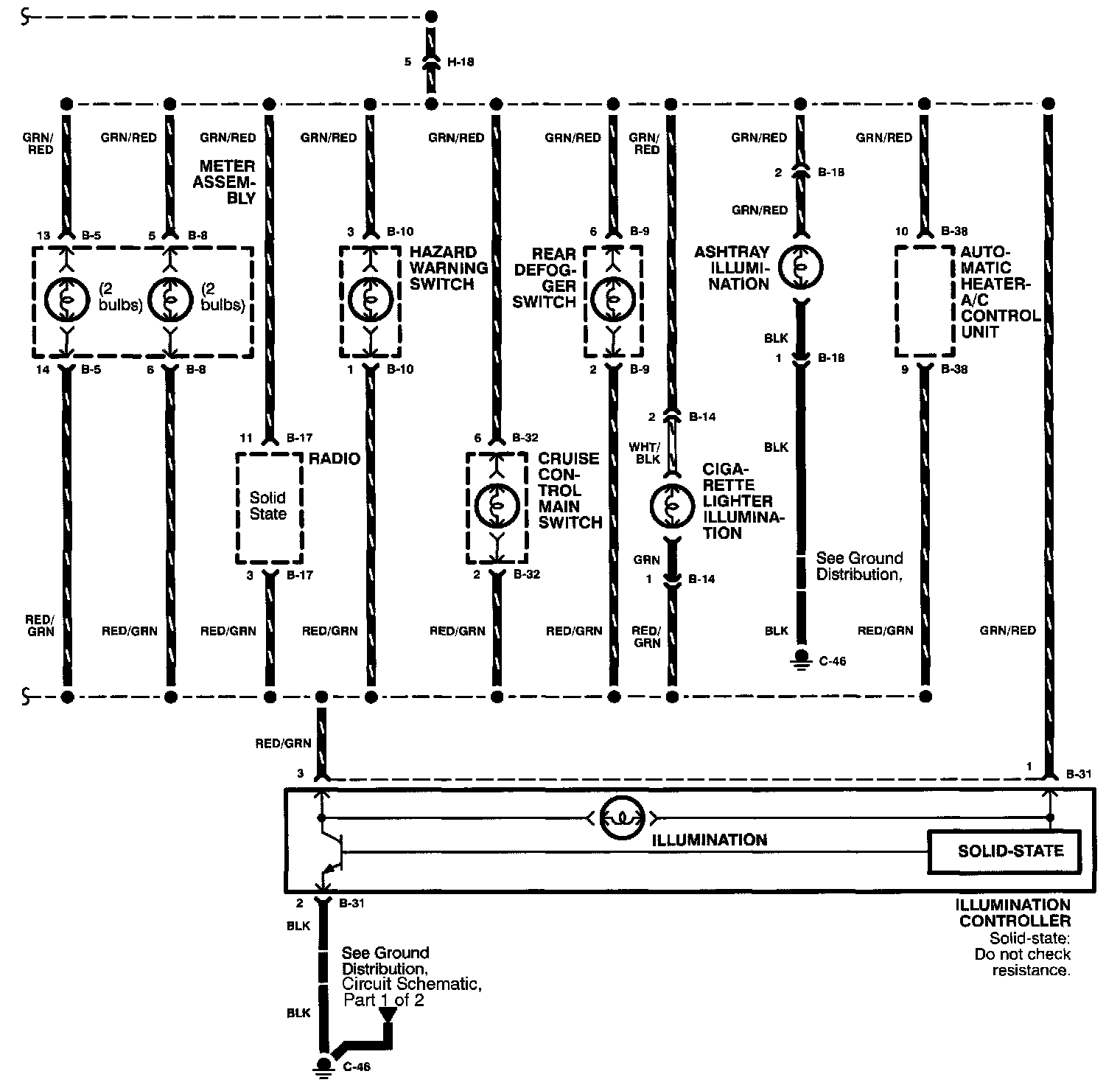

Dash And Console Lights (1 of 2):

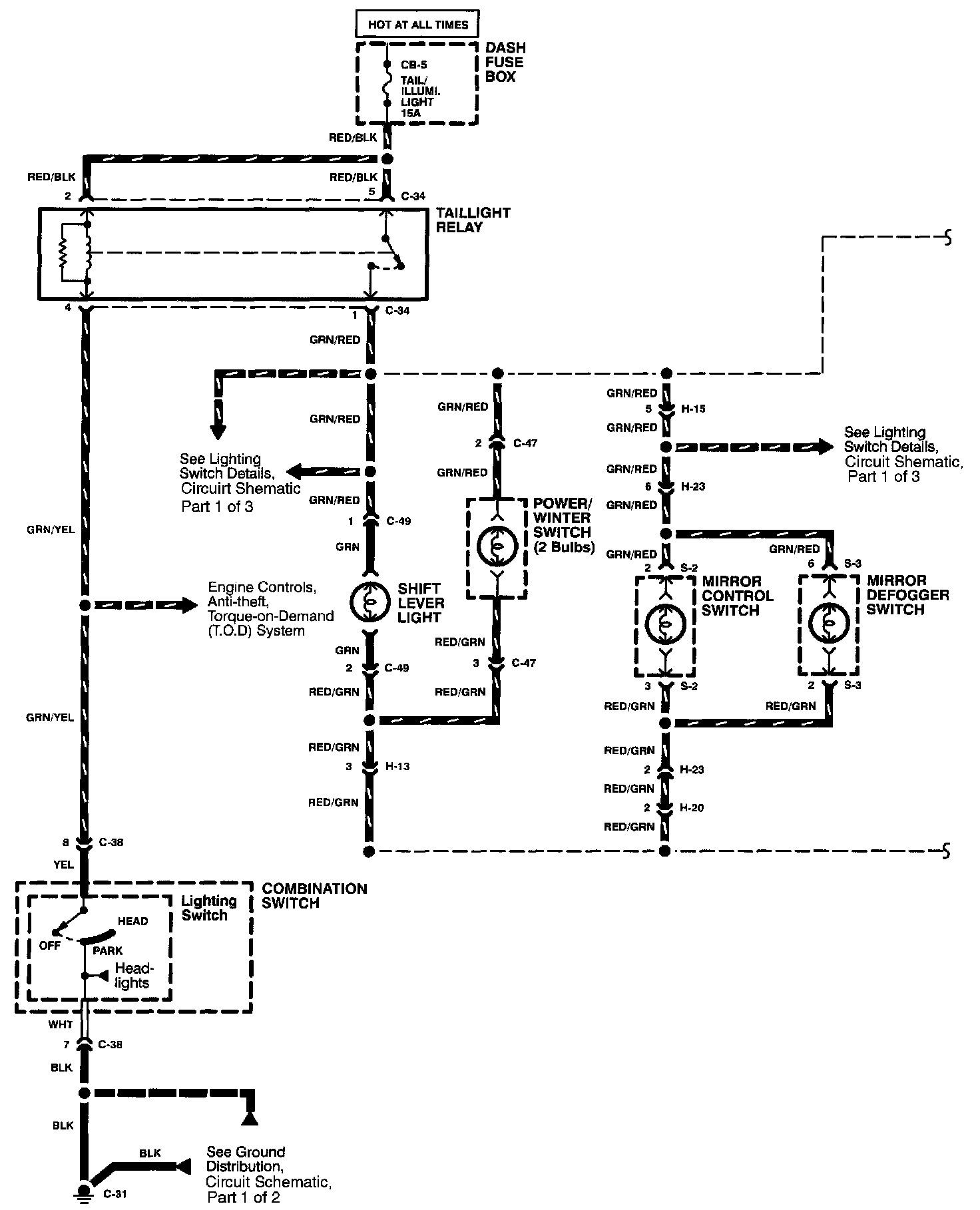

Dash And Console Lights (2 of 2):
