Home >> Isuzu >> 2000 >> VehiCROSS 4WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System

Starting System

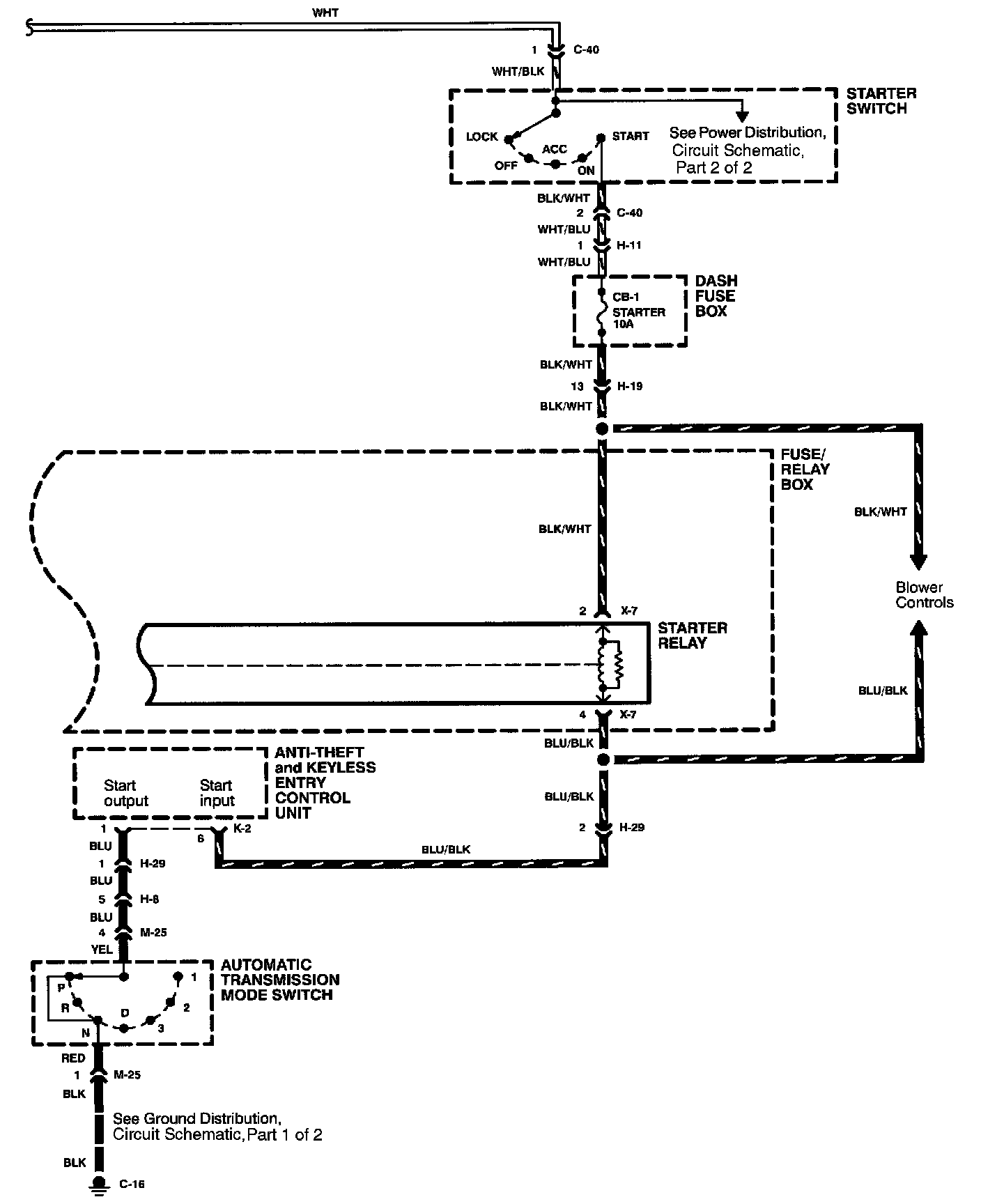

Starting System (1 of 2):

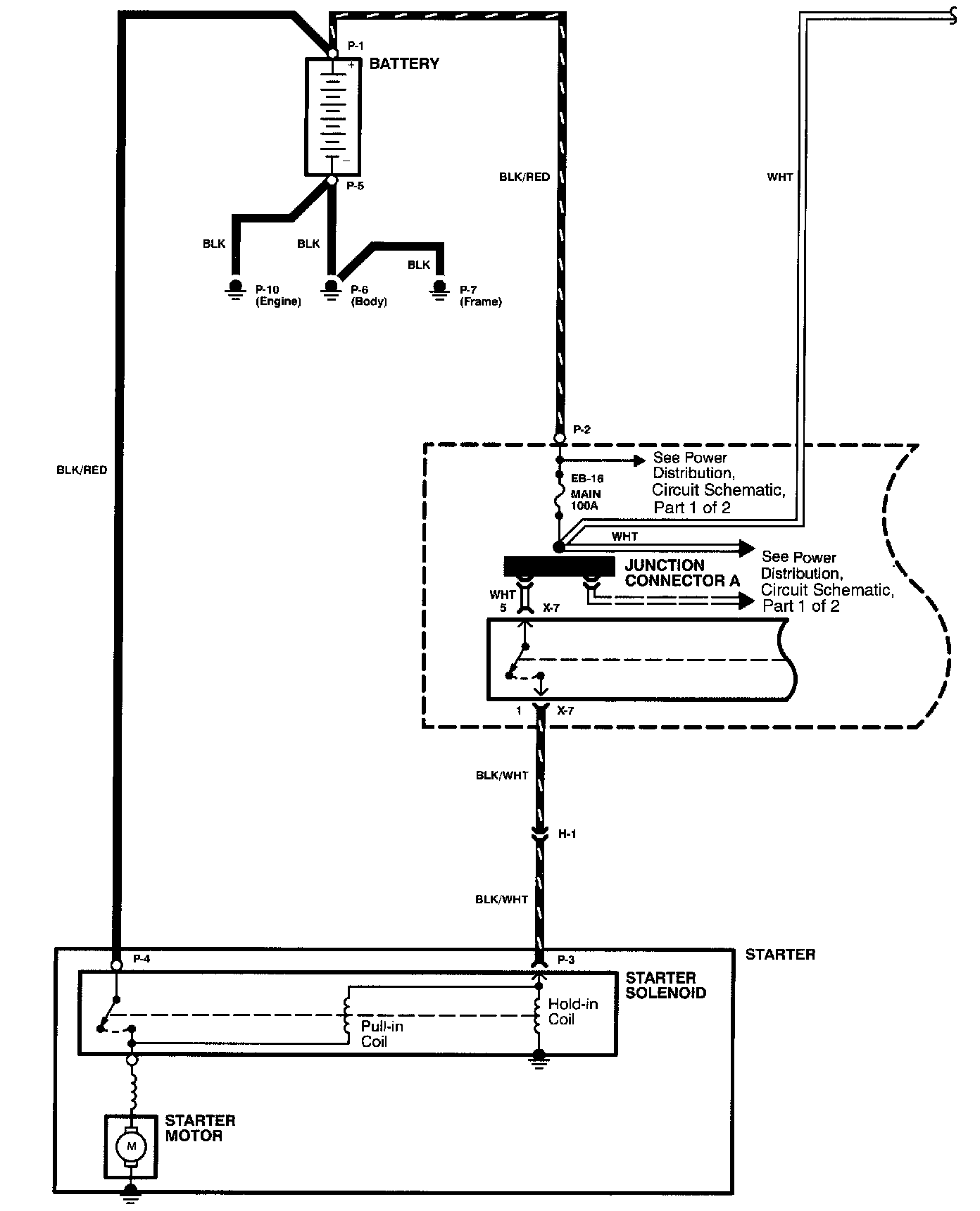

Starting System (2 of 2):
