Home >> Isuzu >> 2000 >> VehiCROSS 4WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Turn Signals

Turn Signals

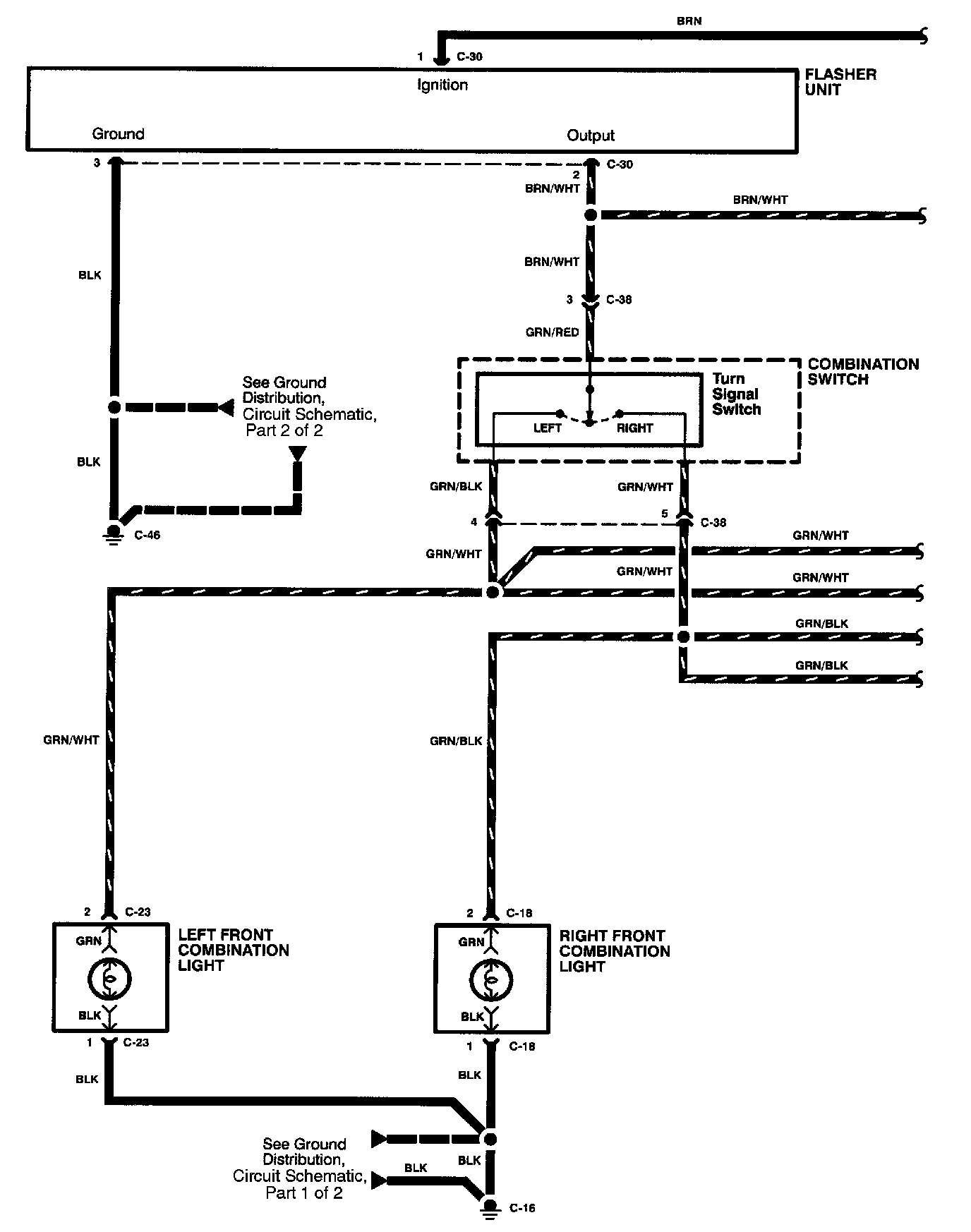

Turn & Hazard Lights (1 of 2):

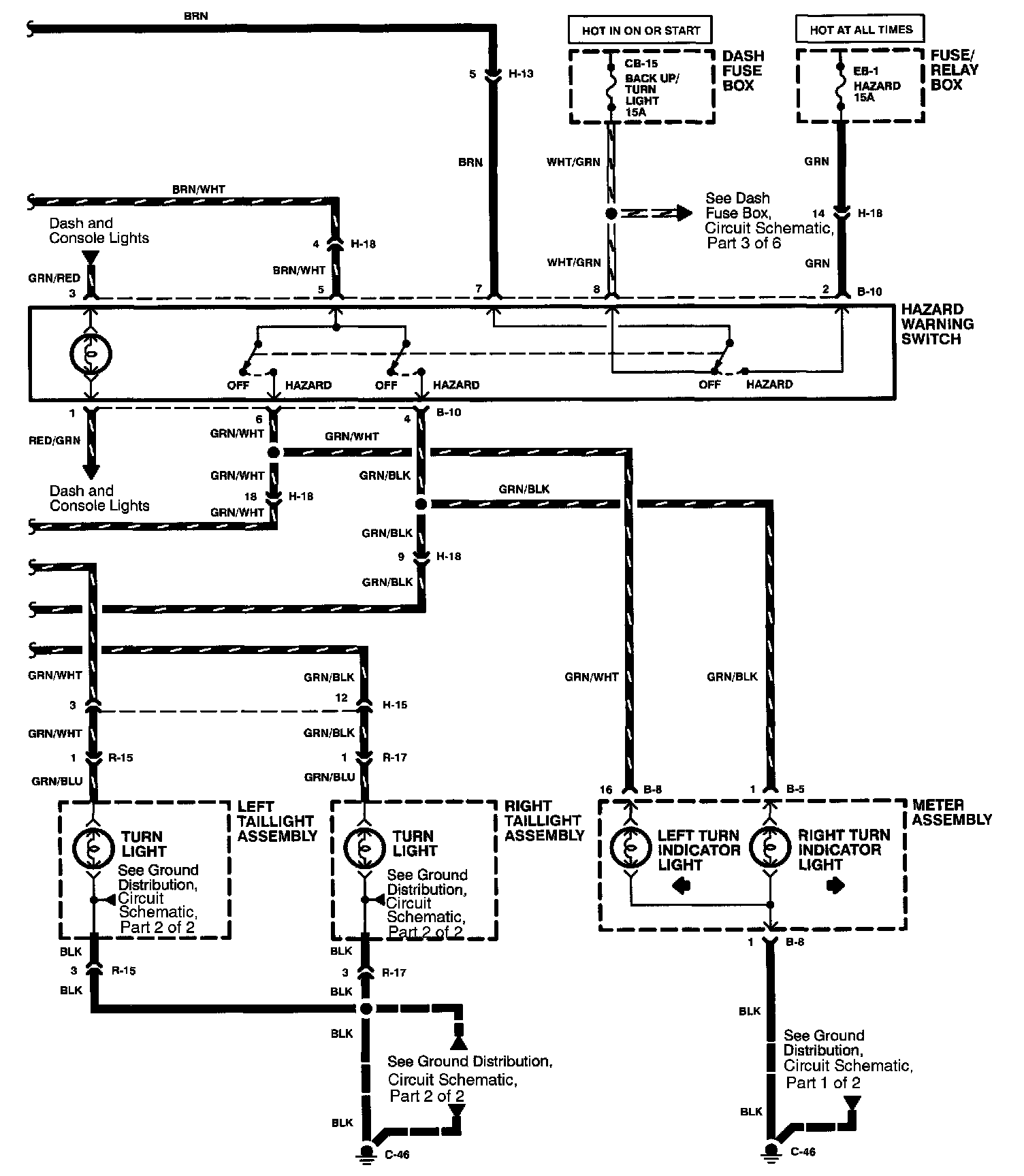

Turn & Hazard Lights (2 of 2):
